2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Using Indicator Light
WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

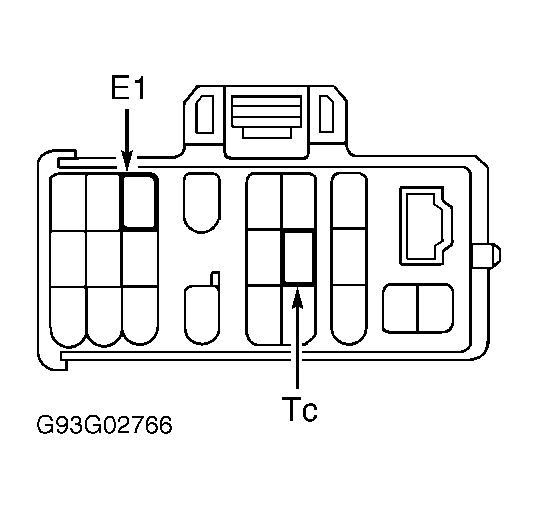

- Using a diagnosis check wire (SST 09843-18020), connect terminals Tc and E1 of DLC1. See Fig 1.

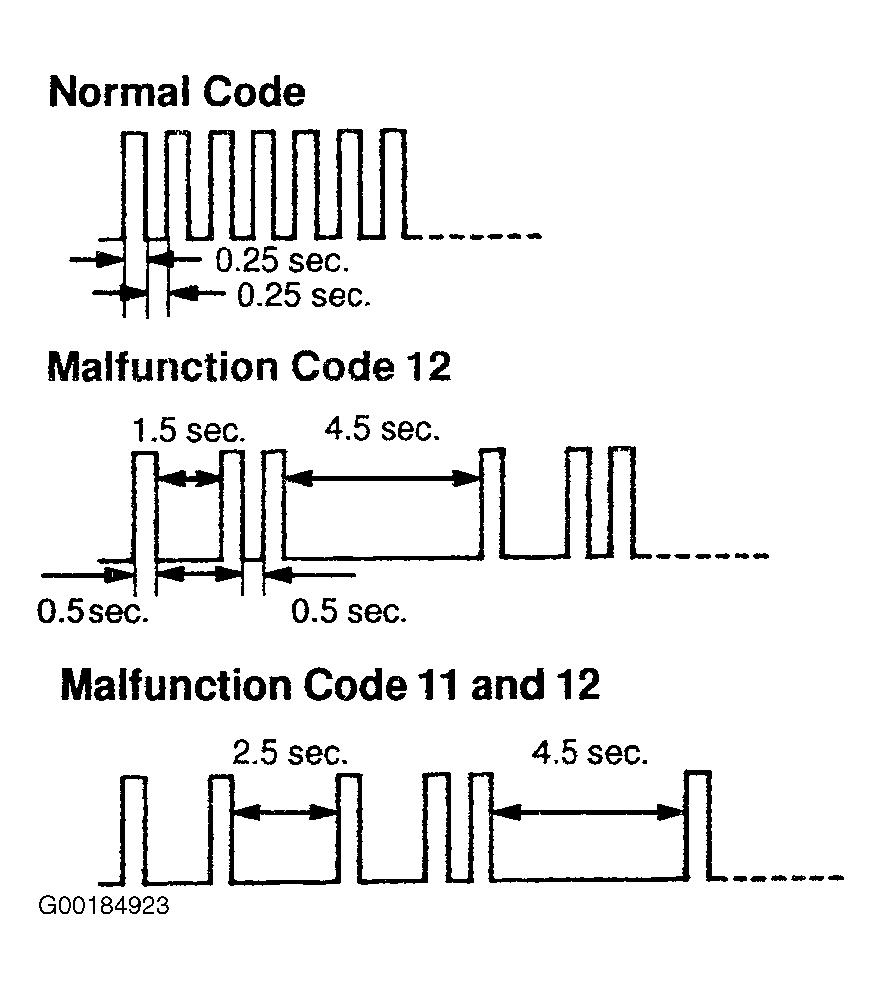

- Turn the ignition switch ON and read the DTC on the open door indicator light. As an example, the blinking patterns for codes; normal, 12, and 11 and 12 are shown in the illustration. See Fig 2.
- Check for the problem using the DTC table. See DIAGNOSTIC TROUBLE CODE INDEX table.
- After completing the check, turn the ignition switch off, and disconnect terminals Tc and E1.
