2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Operation Procedure
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the CONSULT-II and CONVERTER to the data link connector and start the engine.CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
- Touch "START (NISSAN BASED VHCL)" on the display screen.
- Touch "ABS".
If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
- Touch "ACTIVE TEST".

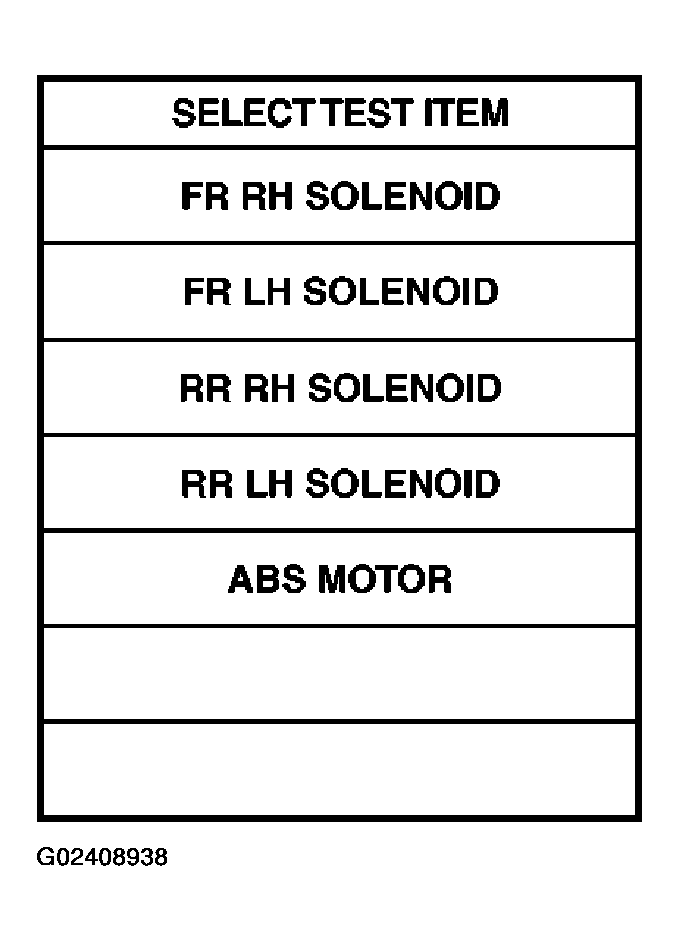

- The test item selection screen is displayed.
- Touch necessary test item.
- With the "MAIN ITEM" display shown in reverse, touch "START".
- The "Active Test" screen will be displayed, so conduct the following test.
