2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
With GST
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch ON.

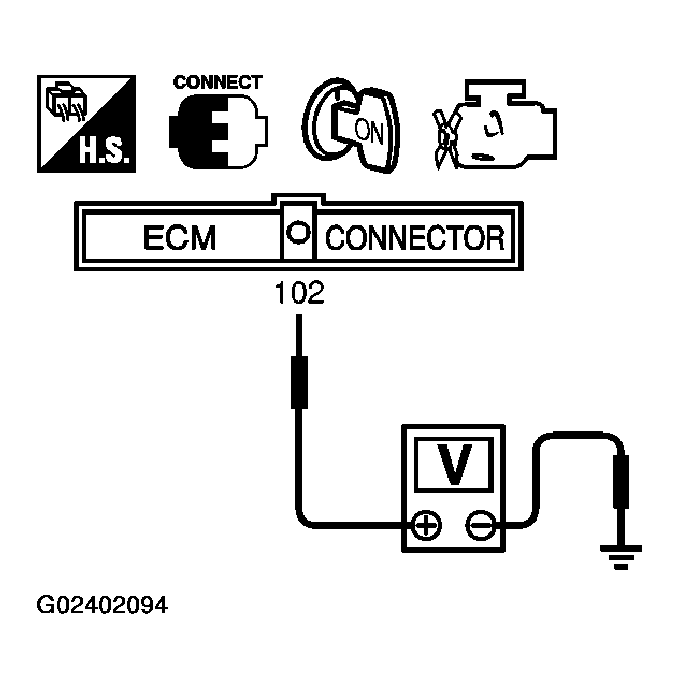

- Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.VOLTAGE CONDITION SPECIFICATION
Condition (Shift lever) Voltage V (Known good data) P or N position (A/T) Neutral position (M/T) Approx. 0 Except above position BATTERY VOLTAGE (11 - 14V) - If NG, go to "DIAGNOSTIC PROCEDURE ".
