2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
EVAP Control System Pressure Sensor
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister. Always replace O-ring with a new one.

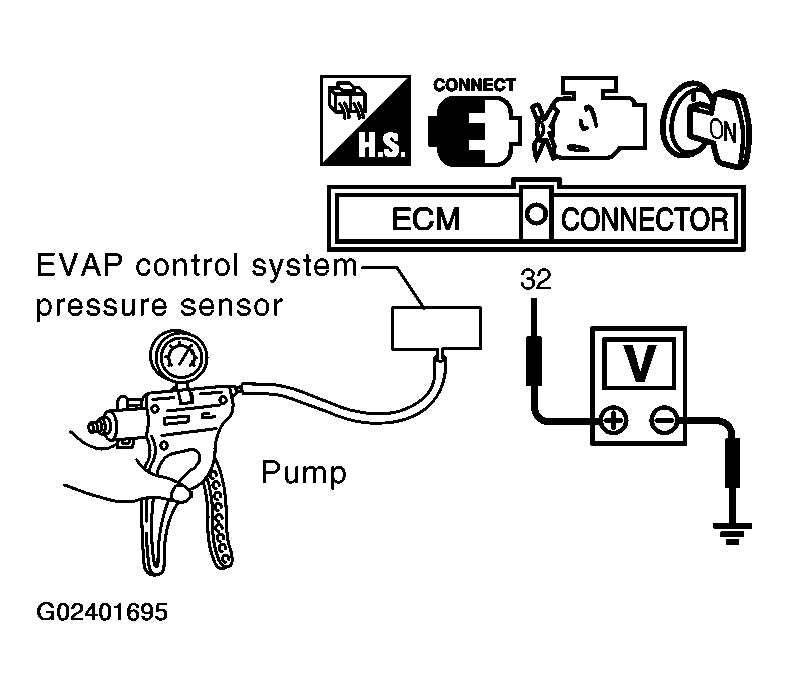

- Install a vacuum pump to EVAP control system pressure sensor.
- Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.APPLIED VACUUM KPA (MMHG, INHG) AND VOLTAGE V
Applied vacuum kPa (mmHg, inHg) Voltage V Not applied 1.8 - 4.8 -26.7 (-200, -7.87) 2.1 to 2.5V lower than above value
