2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Fuel Tank Temperature Sensor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Remove fuel level sensor unit.

Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

TEMPERATURE AND RESISTANCE CHART

Temperature °C (°F)	Resistance kΩ
20 (68)	2.3 - 2.7
50(122)	0.79-0.90

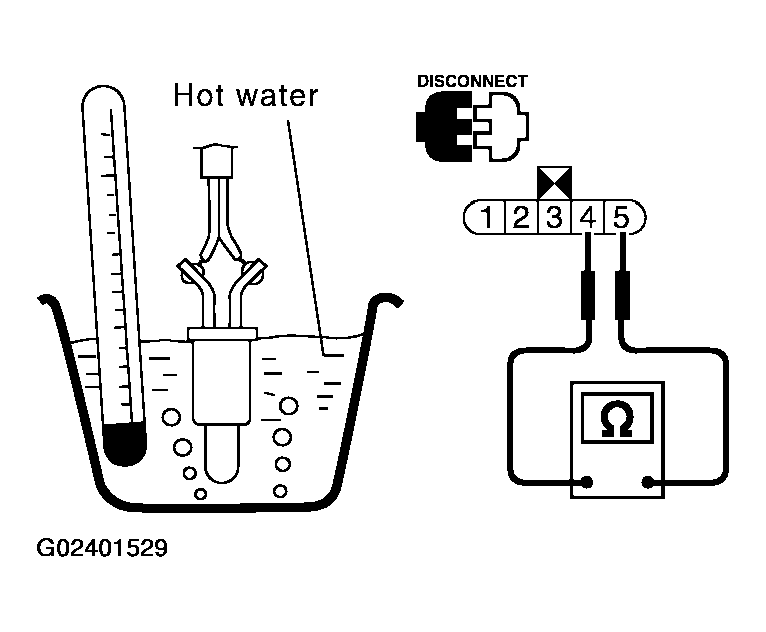

Fig 1: Check Resistance Between "Fuel Level Sensor Unit & Fuel Pump" Terminals 4 & 5 By Heating With Hot Water Or Heat Gun

Courtesy of NISSAN MOTOR CO., U.S.A.
