2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

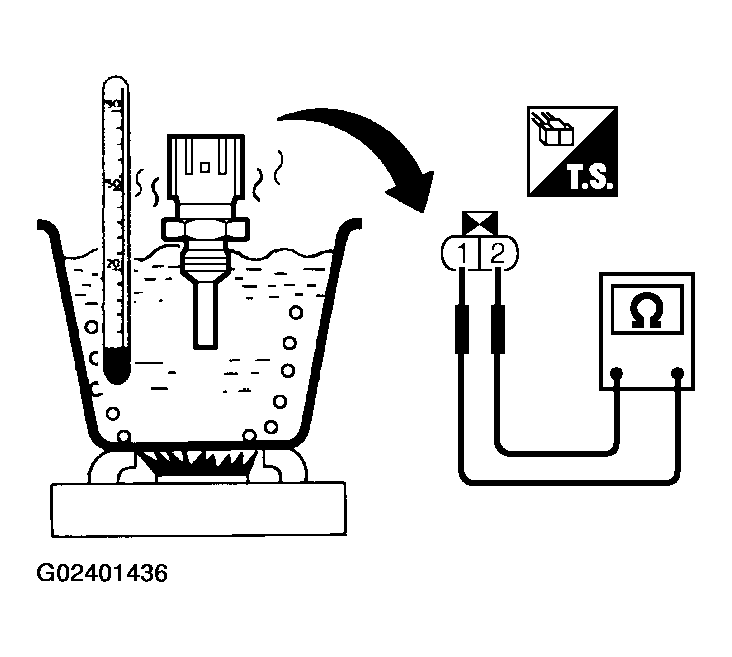

- Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.

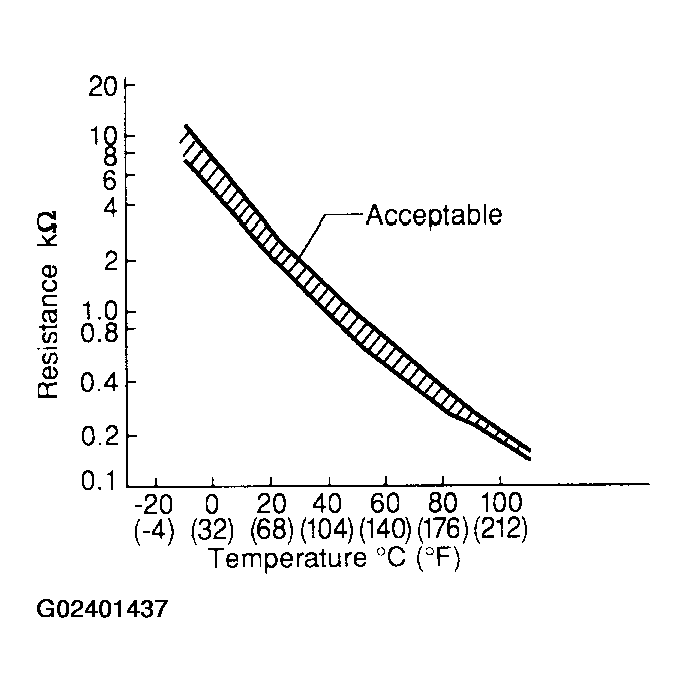

< Reference data>Β
ENGINE COOLANT TEMPERATURE AND RESISTANCEEngine coolant temperature Β°C (Β°F) Resistance kΞ© 20 (68) 2.1-2.9 50 (122) 0.68-1.00 90 (194) 0.236-0.260 - If NG, replace engine coolant temperature sensor.
