Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Start engine and warm it up to normal operating temperature.
Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode.

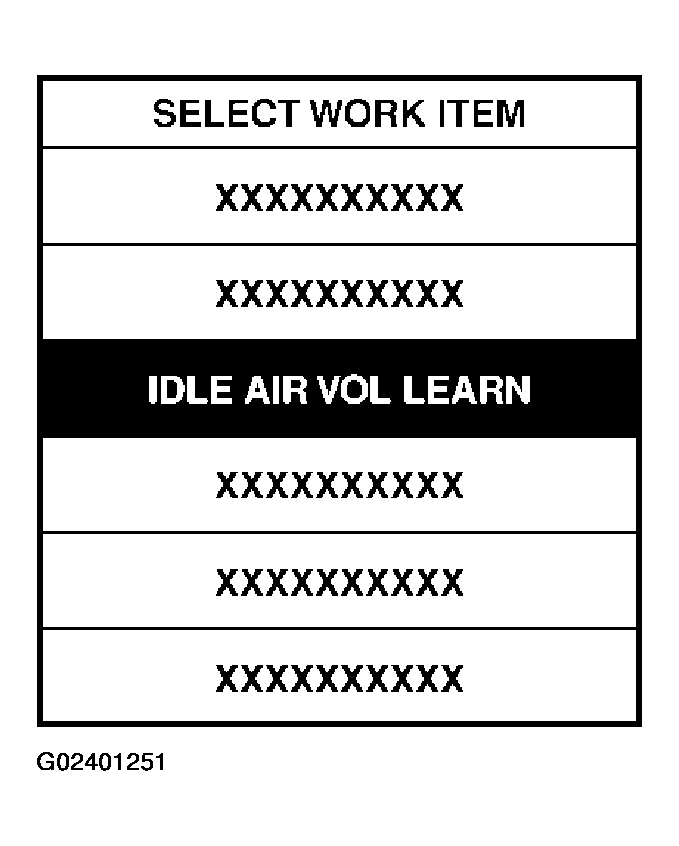

Fig 1: Scan Tool Display "Select Work Item, Idle Air Vol Learn"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" and wait 20 seconds.

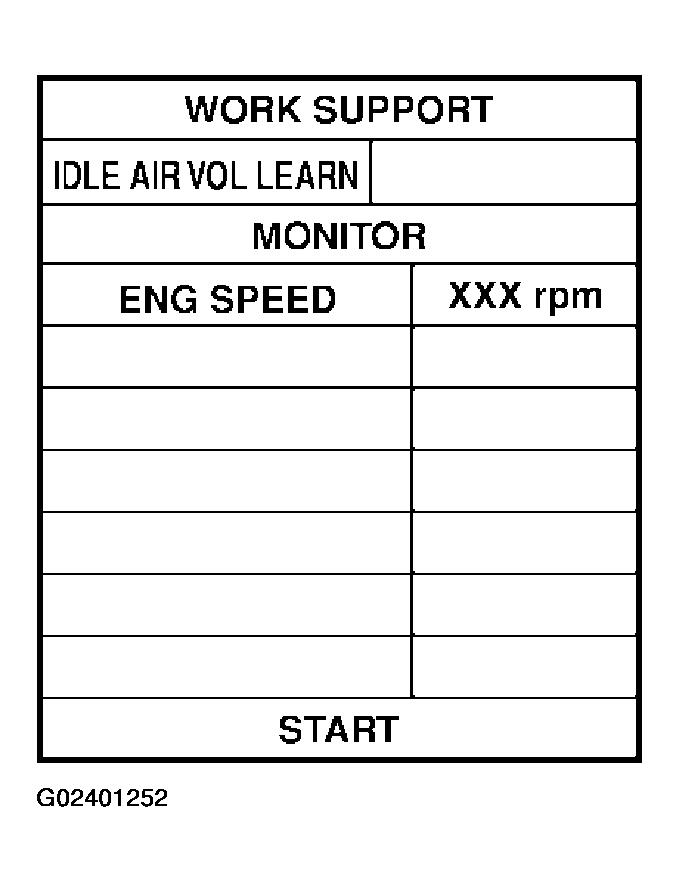

Fig 2: Scan Tool Display "Work Support"
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that "CMPLT" is displayed on CONSULT-II screen. If "CMPLT" is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the DIAGNOSIS PROCEDURE below.
Rev up the engine 2 or 3 times and make sure that idle speed and ignition timing are within the specifications.

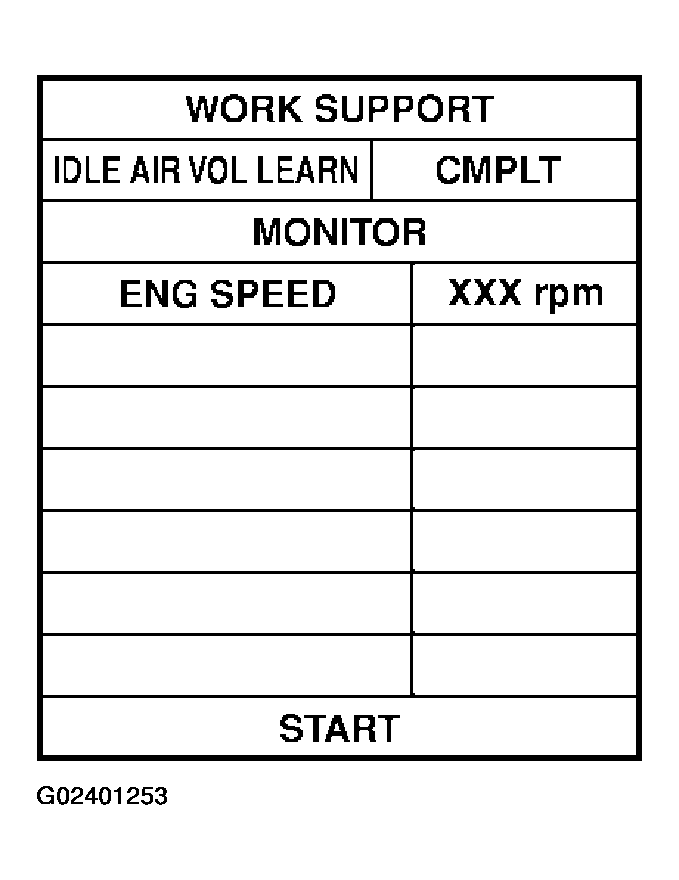

Fig 3: Scan Tool Display "Work Support, Idle Air Vol Learn"

Courtesy of NISSAN MOTOR CO., U.S.A.

ITEM SPECIFICATION

ITEM	SPECIFICATION
Idle speed	A/T: 650+/-50 rpm (in P or N position)
	M/T: 650+/-50 rpm (in Neutral position)
Ignition	A/T: 15+/-5°BTDC (in P or N Position)
	M/T: 15+/-5° BTDC (in Neutral position)
