ASCD Clutch Switch
- Turn ignition switch OFF.
- Disconnect ASCD clutch switch harness connector.

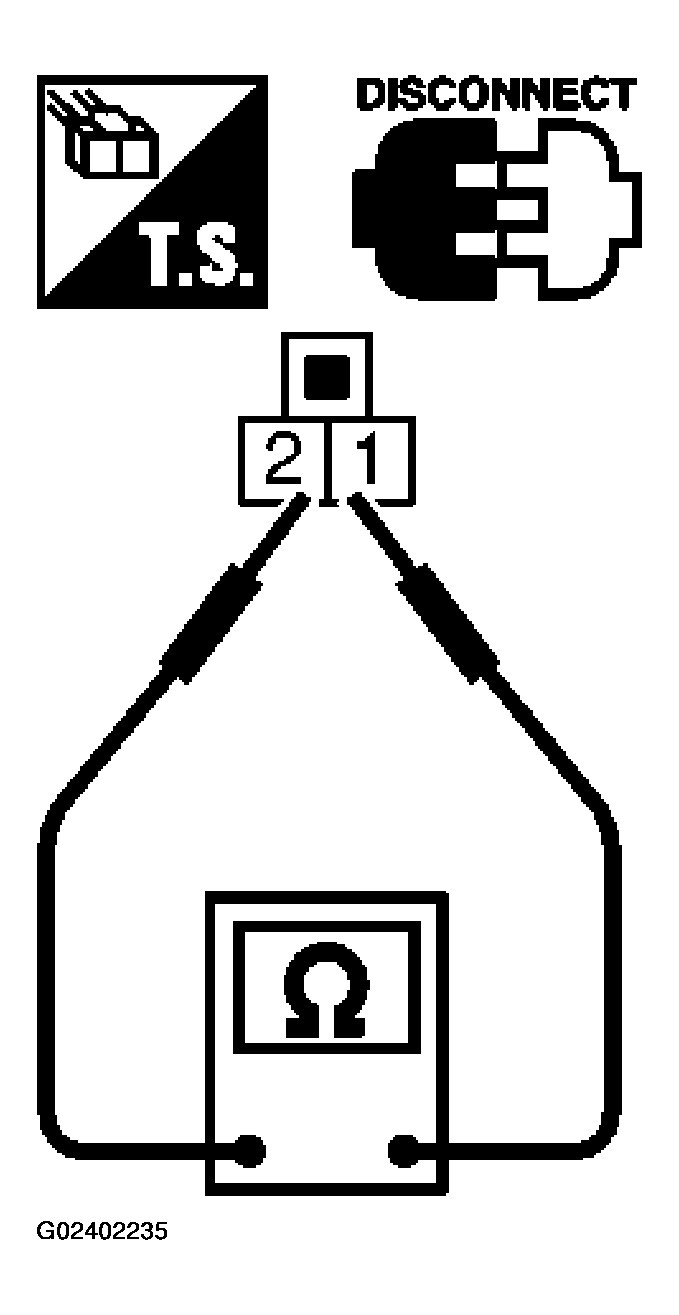

- Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.CONTINUITY SPECIFICATION
Condition Continuity Clutch pedal: Fully released Should exist. Clutch pedal: Slightly depressed Should not exist. If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.
