Pull negative-pressure valve to open it and make sure that it closes completely when released.
- Make sure that there is no dirt or damage on the valve seat of radiator cap negative-pressure valve.
- Make sure that there are no unusualness in the opening and closing conditions of negative-pressure valve.
Fig 1: Pulling Negative-Pressure Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Check radiator cap relief pressure.
- Standard:
  - Torque Specification :78 - 98 kPa (0.8-1.0 kg/cm ² , 11-14 psi)
- Limit:
  - 59 kPa (0.6 kg/cm ² , 9 psi)
- When connecting radiator cap to radiator cap tester (commercial service tool) and radiator cap tester adapter [SST], apply engine coolant to the cap seal surface.

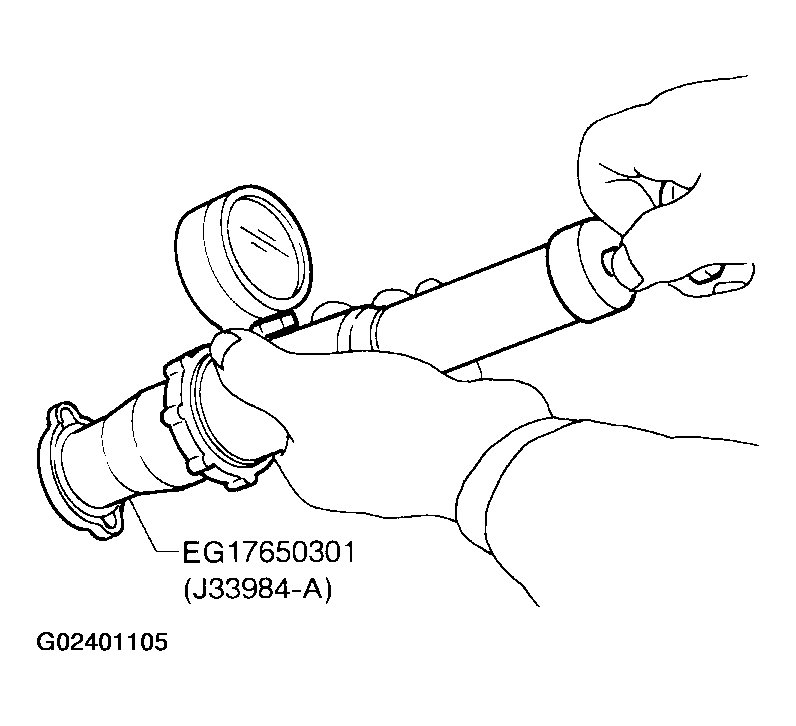

  Fig 2: Checking Radiator Cap Relief Pressure
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Replace radiator cap if there is an unusualness in negative-pressure valve, or if the relief pressure falls below the limit.
