CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

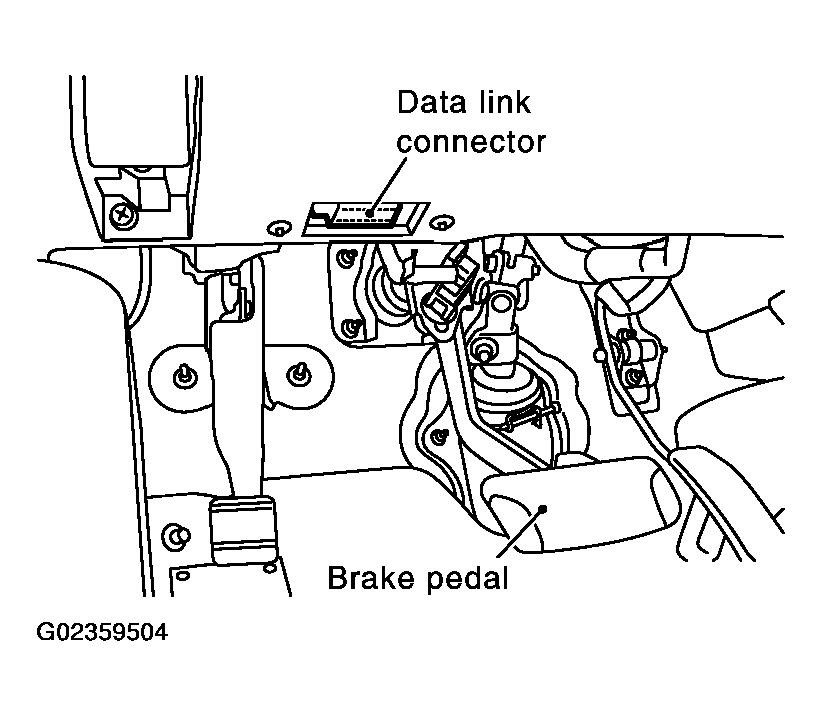

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

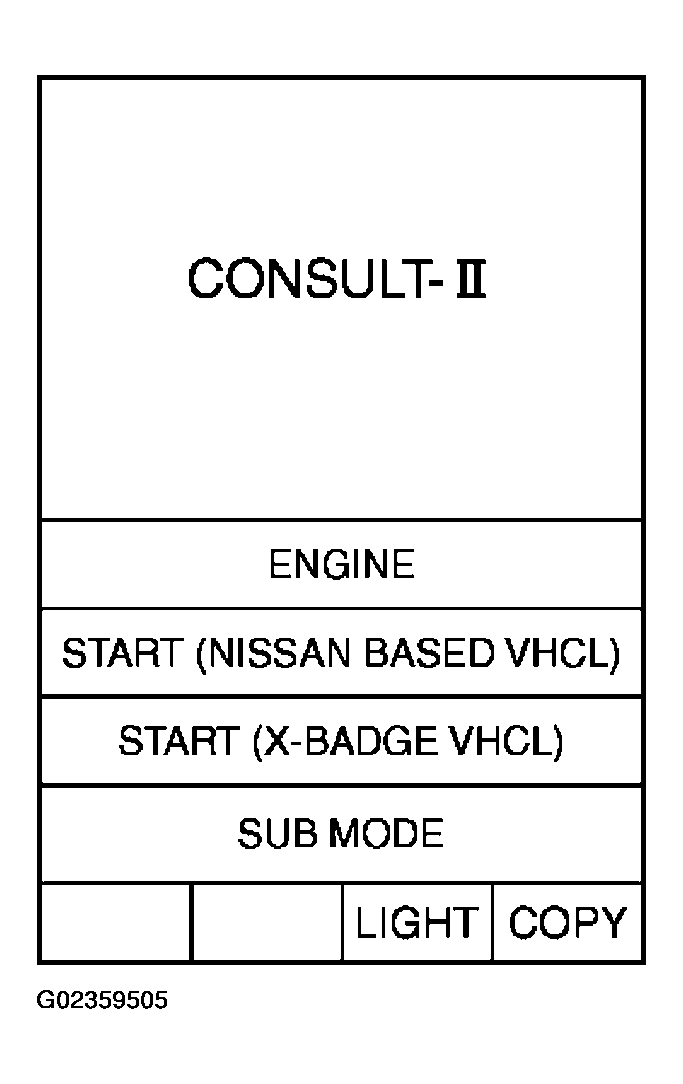

Fig 2: CONSULT-II Diagnosis Function Display (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

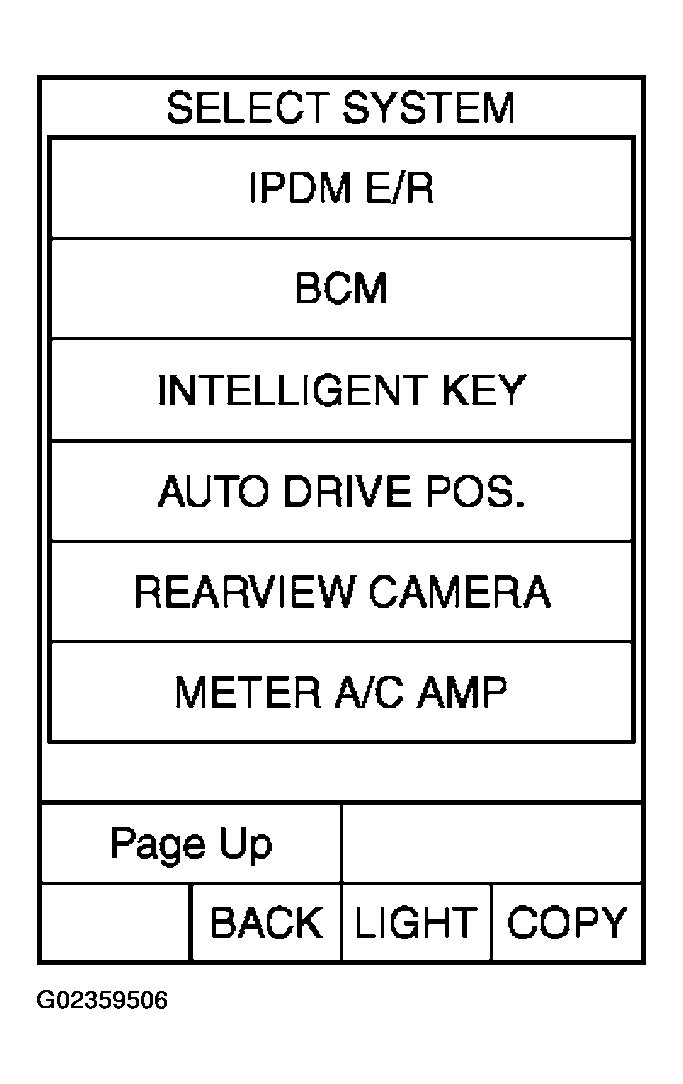

Fig 3: CONSULT-II Diagnosis Function Display (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BUZZER" or "BCM".
Select "DATA MONITOR", "ACTIVE TEST" or "SELF-DIAG RESULTS".

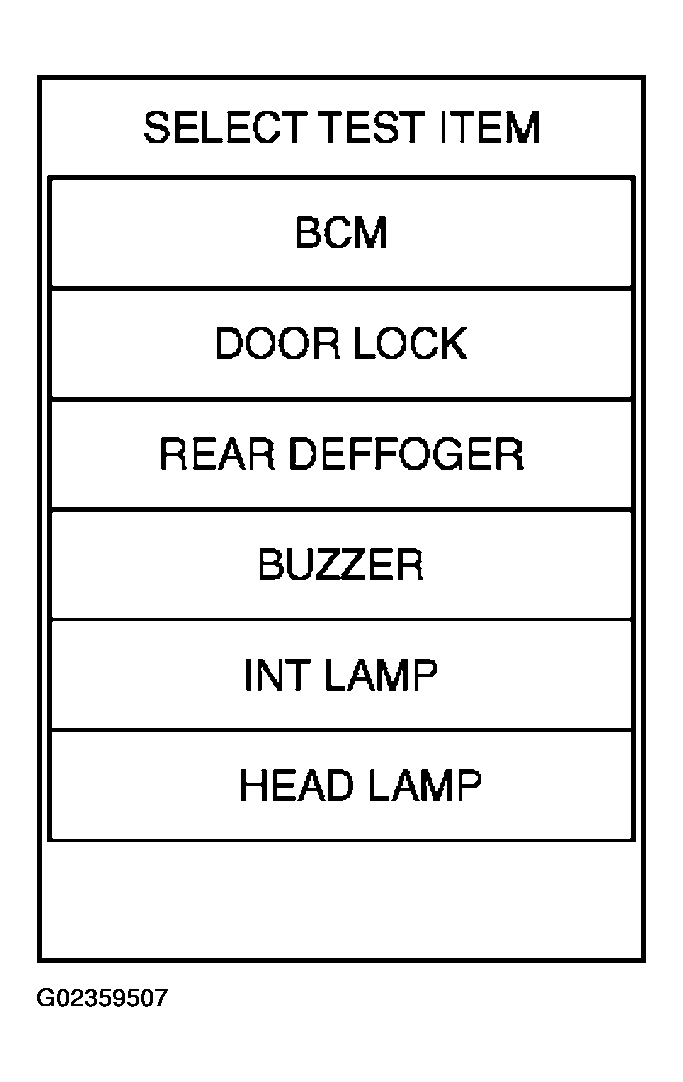

Fig 4: CONSULT-II Diagnosis Function Display (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
