2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Consult-II Basic Operation
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

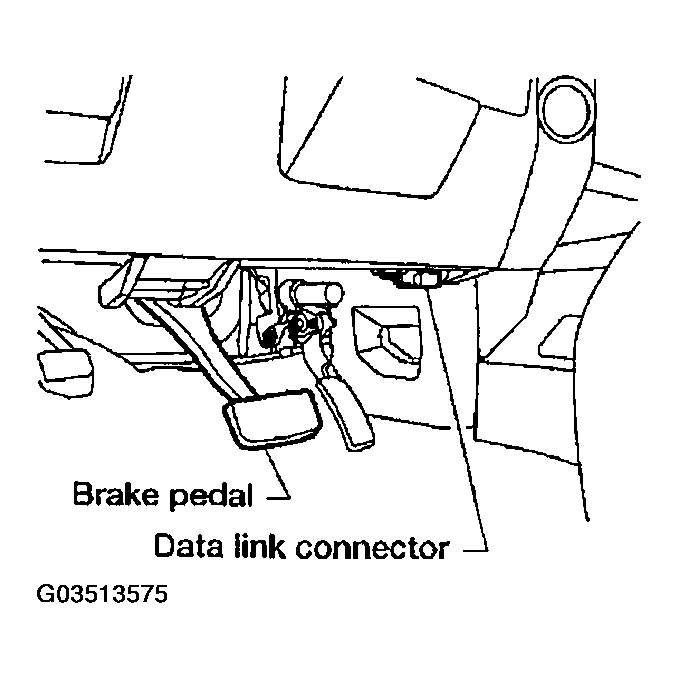

- With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

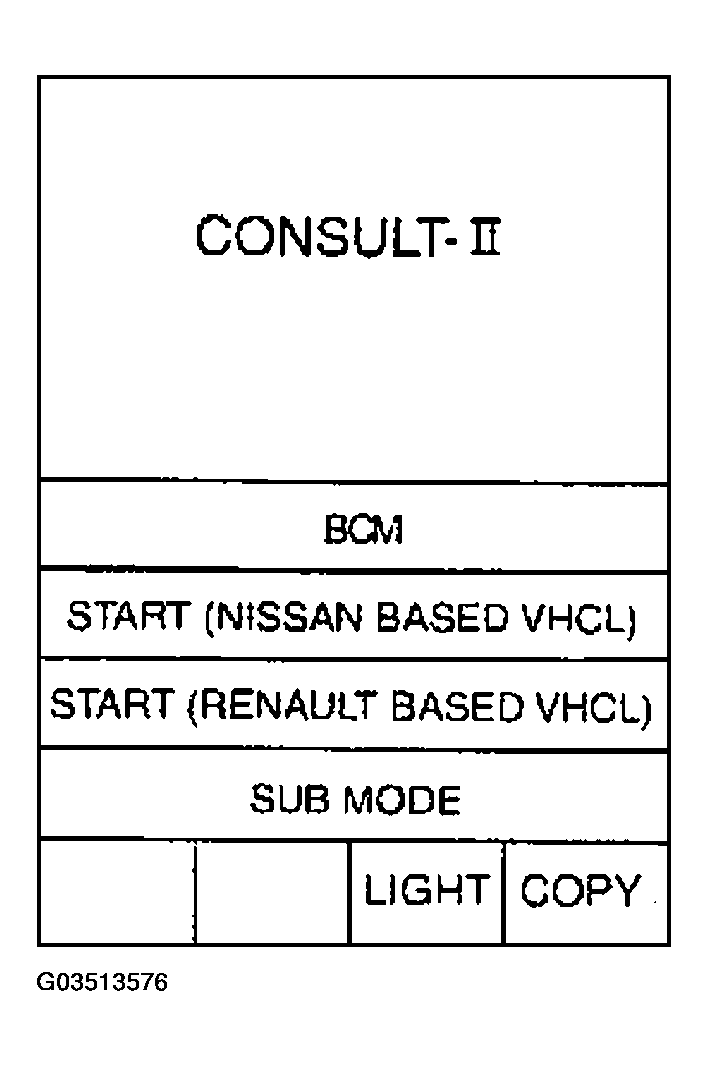

- Touch "START (NISSAN BASED VHCL)".

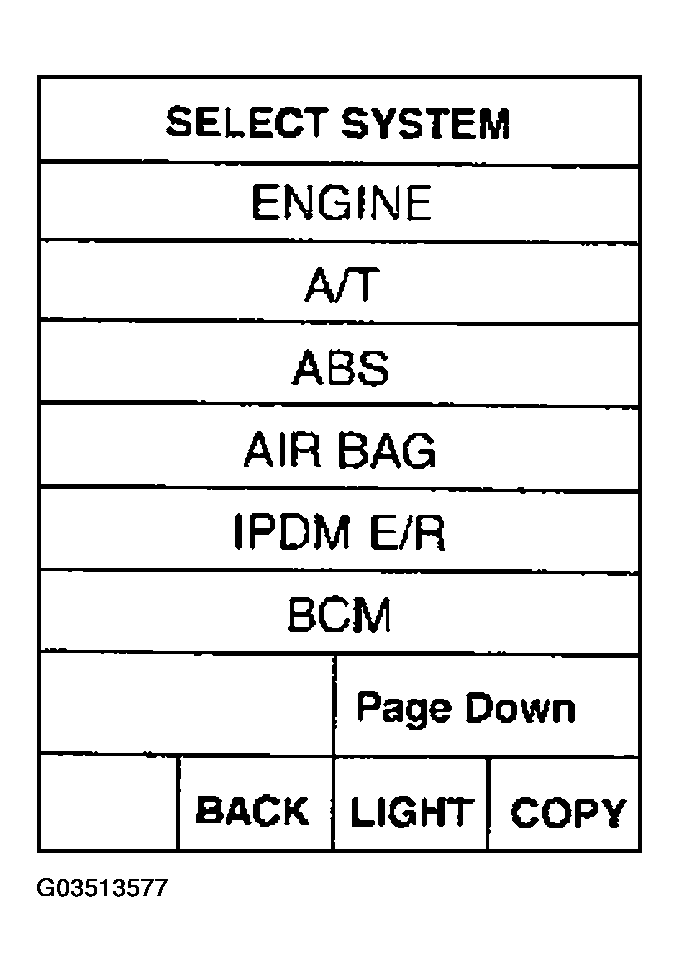

- Touch "IPDM E/R" on "SELECT SYSTEM" screen.
- If "IPDM E/R" is not displayed, print "SELECT SYSTEM" screen, then refer to PRECAUTIONS

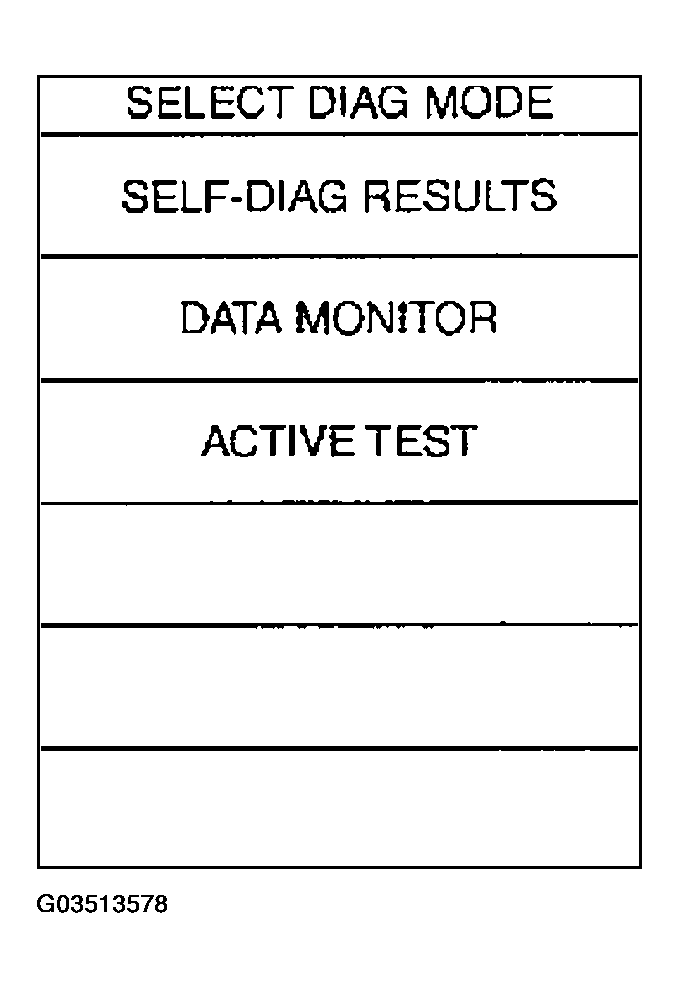

- Select "SELF-DIAG RESULTS" or "DATA MONITOR".
