2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Vehicle Signals

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  • A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
    CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of lighting switch (normal setting).
    • OFF: D (Day mode)
    • ON: N (Night mode)

    Unless above setting, light signal (ON/OFF) may not be accurately displayed.

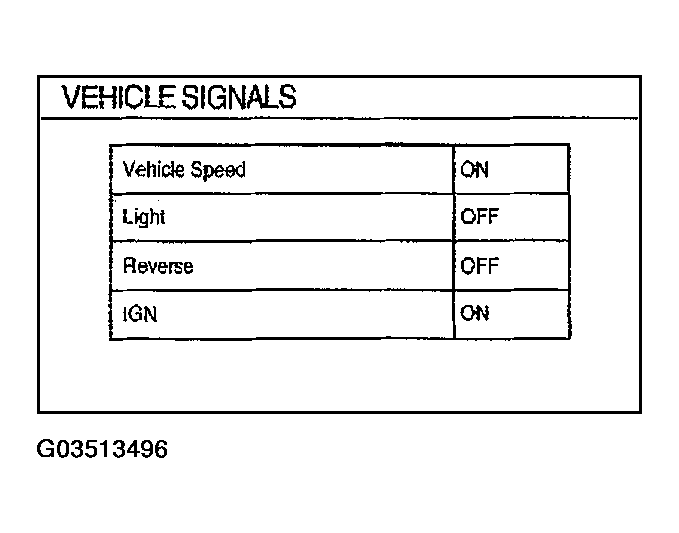

    Fig 1: Display Vehicle Signals Screen
    G03513496Courtesy of NISSAN MOTOR CO., U.S.A.
    PROBLEM DIAGNOSIS

    Diagnosis item Display Condition Remarks
    Vehicle speed ON Vehicle speed > 0 km/h (0 MPH) Changes in indication may be delayed by approx. 1.5 seconds. This is normal.
    OFF Vehicle speed = 0 km/h (0 MPH)
    -- Ignition switch in ACC position
    Light ON Lighting switch ON --
    OFF Lighting switch OFF
    IGN ON Ignition switch ON --
    OFF Ignition switch ACC or OFF
    Reverse ON Selector lever in R position Changes in indication may be delayed by approx. 1.5 seconds. This is normal.
    OFF Selector lever in other than R position
    -- Ignition switch in ACC position
  • If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
  • If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
  • If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
  • If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".


  • A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
    CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of light switch (normal setting).
    • OFF: D (Day mode)
    • ON: N (Night mode)

    Unless mode is in above setting, light signal (ON/OFF) may not be accurately displayed.

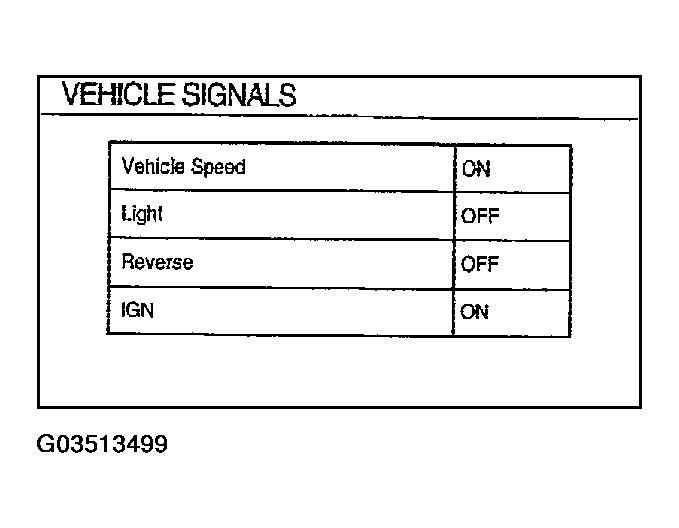

    Fig 1: Display Vehicle Signals Screen
    G03513499Courtesy of NISSAN MOTOR CO., U.S.A.
    PROBLEM DIAGNOSIS

    Diagnosis item Display Condition Remarks
    Vehicle speed ON Vehicle speed > 0 km/h (0 MPH) Changes in indication may be delayed by approx. 1.5 seconds. This is normal.
    OFF Vehicle speed = 0 km/h (0 MPH)
    -- Ignition switch in ACC position
    Light ON Lighting switch ON --
    OFF Lighting switch OFF
    IGN ON Ignition switch ON --
    OFF Ignition switch ACC or OFF
    Reverse ON Selector lever in R position Changes in indication may be delayed by approx. 1.5 seconds. This is normal.
    OFF Selector lever in other than R position
    -- Ignition switch in ACC position
  • If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR NAVI CONTROL UNIT ".
  • If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR NAVI CONTROL UNIT ".
  • If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR NAVI CONTROL UNIT ".
  • If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR NAVI CONTROL UNIT ".
