Lighting Switch Inspection
- CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

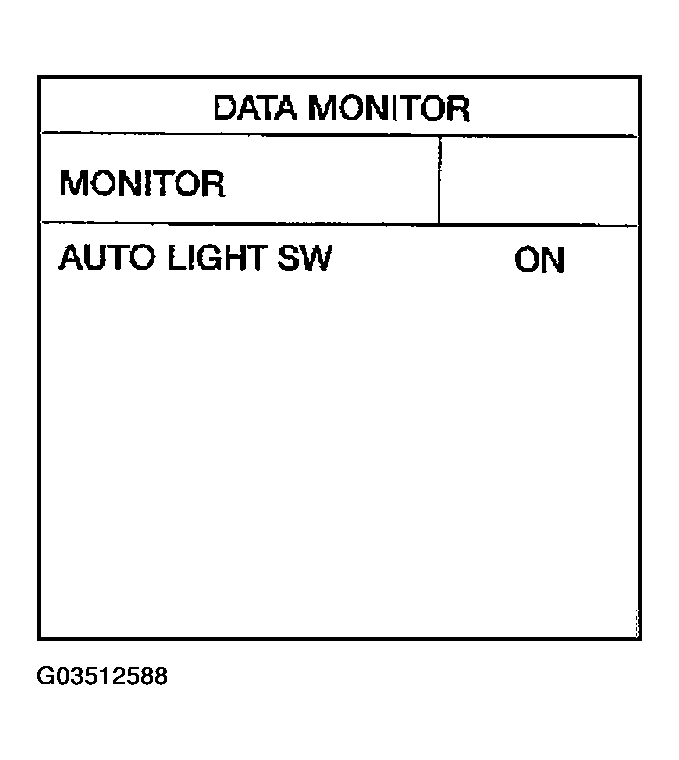

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.
When lighting switch is in AUTO position: AUTO LIGHT SW ON
Without CONSULT-II
Refer to COMBINATION SWITCH INSPECTION
OK or NG
- OK: INSPECTION END.
- NG: Check lighting switch. Refer to COMBINATION SWITCH INSPECTION
