2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Consult-II Basic Operation Procedure
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
- Turn ignition switch OFF.
- Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
- Turn ignition switch ON.
- Touch "START (NISSAN BASED VHCL)".
- Touch "BCM".
If "BCM" is not indicated, go to "CONSULT-II Date Link Connector (DLC) Circuit."

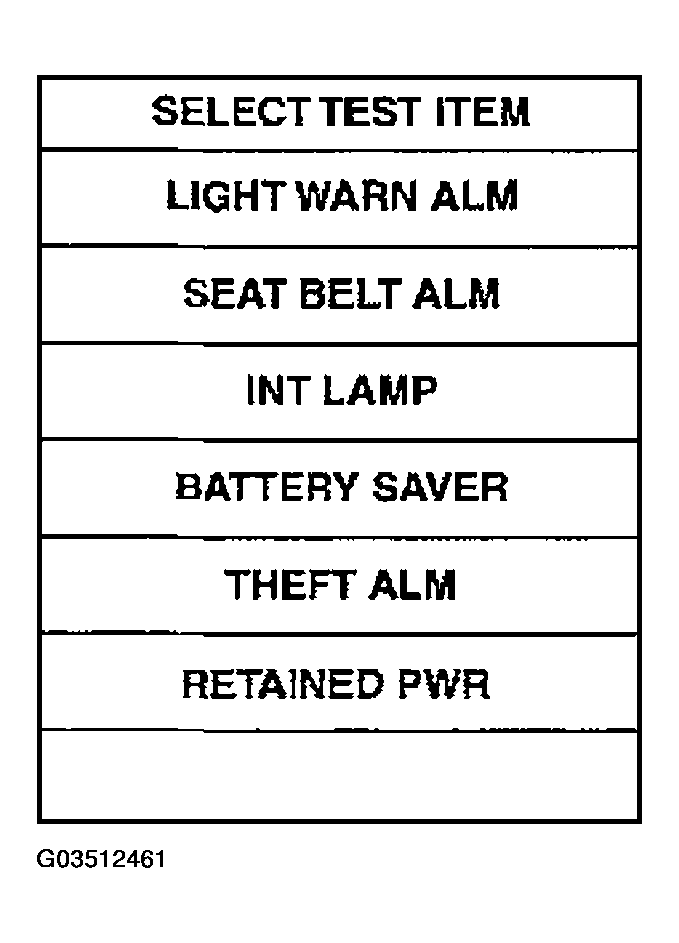

- Touch "RETAINED PWR".
- Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
