CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

Turn ignition switch ON.

Check voltage between power window and door lock/unlock switch RH connector D105 terminal 8, 9 and ground.

CONNECTOR TERMINAL VOLTAGE CONDITION

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D105	9 (G)	Ground	UP	0
	9 (G)		DOWN	Battery voltage
	8 (L)		UP	Battery voltage
	8 (L)		DOWN	0

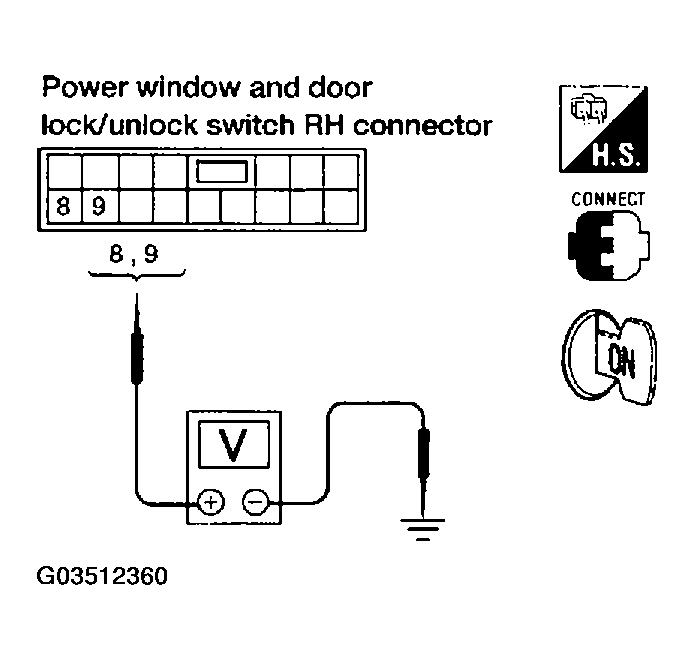

Fig 1: Checking Voltage Between Power Window And Door Lock/Unlock Switch And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2
NG: Replace power window and door lock/unlock switch RH.

CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 2.
  8 (L) - 2 (L): Continuity should exist.

  9 (G) - 1 (G): Continuity should exist.
OK or NG
1. OK: Replace front power window motor RH.
2. NG: Repair or replace harness.

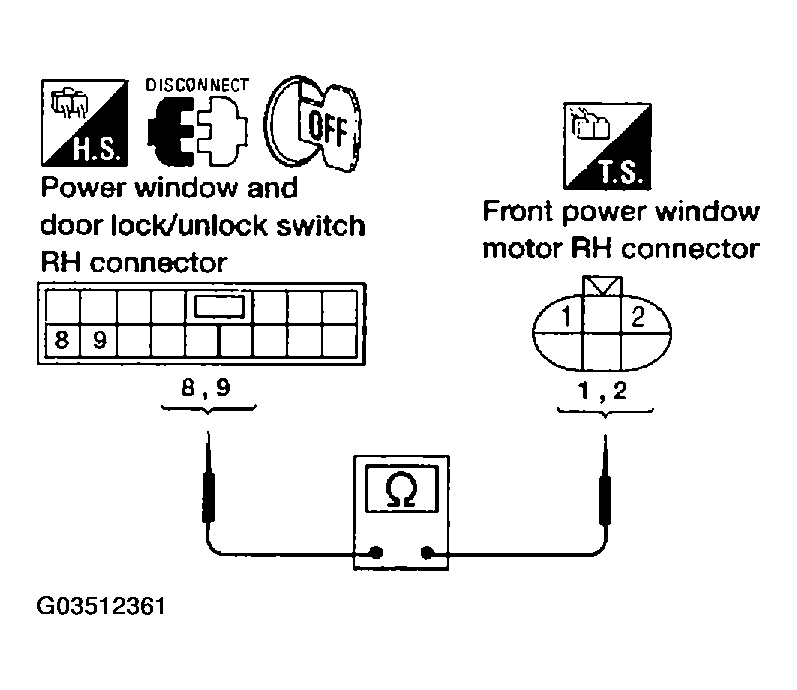

Fig 2: Checking Continuity Between Power Window Switch And Front Power Window Motor RH Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
