CHECK FRONT POWER WINDOW MOTOR LH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window motor LH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor LH connector D9 terminal 4 and ground.
  4 (BR) - Ground: Approx. 10V
OK or NG
1. OK: GO TO 3 .
2. NG: GO TO 2.

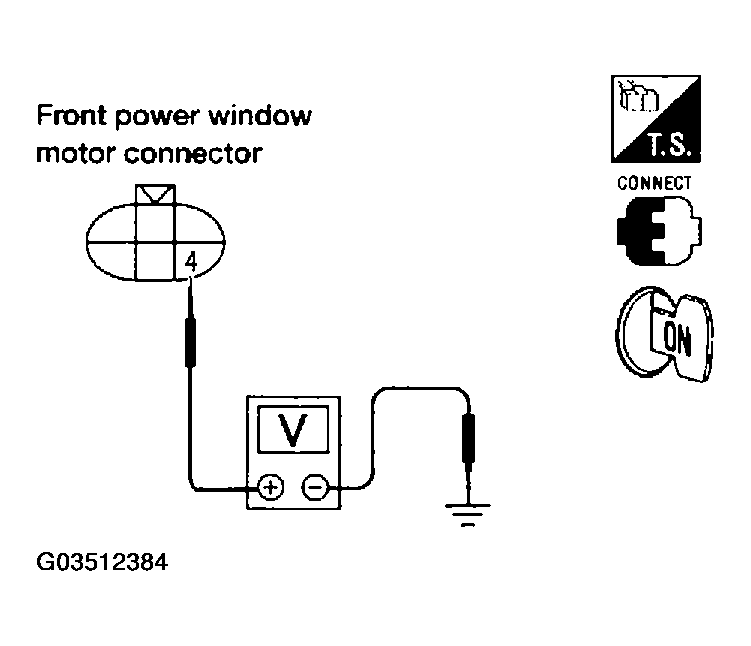

Fig 1: Checking Voltage Between Front Power Window Motor Connector Terminal And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between front power window motor LH connector D9 terminal 4 and main power window and door lock/unlock switch connector D7 terminal 15.
  4 (BR) - 15 (BR): Continuity should exist.

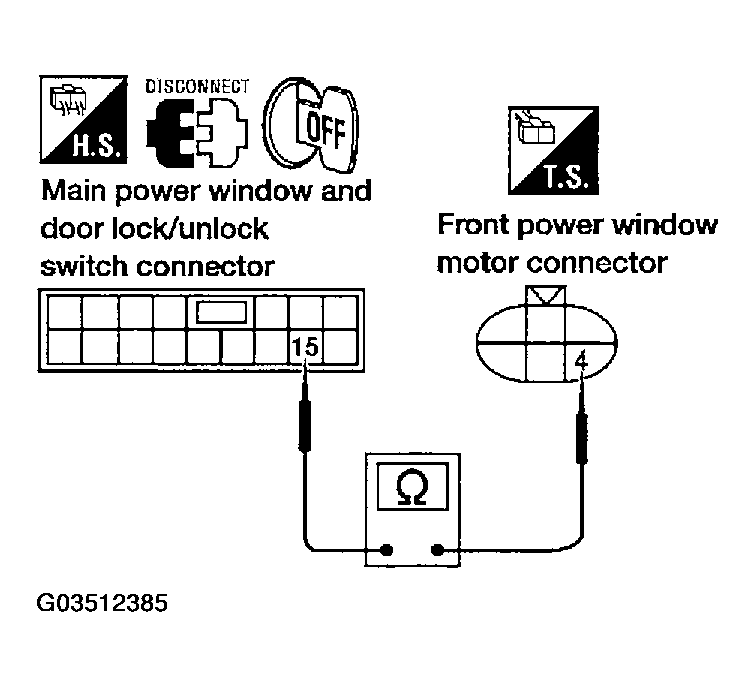

Fig 2: Checking Continuity Between Front Power Window Motor And Main Power Window Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace main power window and door lock/unlock switch.
2. NG: Repair or replace harness.
CHECK ENCODER GROUND
1. Disconnect front power window motor LH.
2. Check continuity between front power window motor LH connector D9 terminal 6 and ground.
  6 (W/B) - Ground: Continuity should exist.
OK or NG
1. OK: GO TO 5 .
2. NG: GO TO 4.

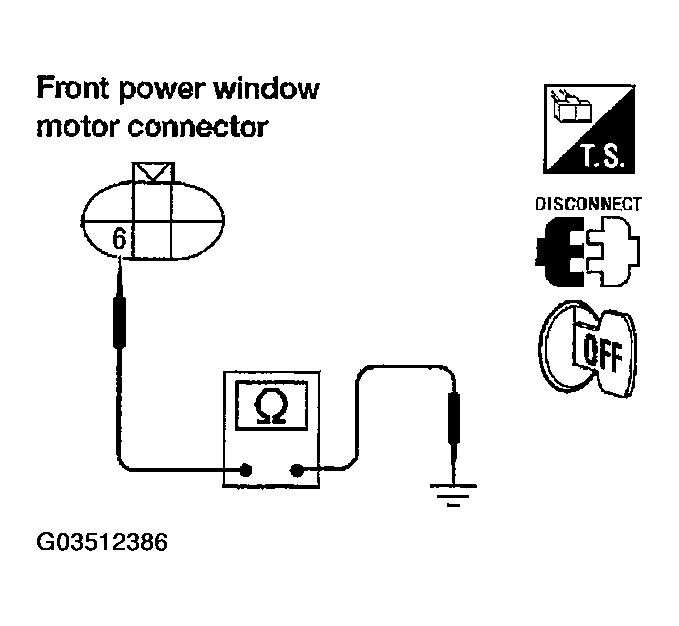

Fig 3: Checking Continuity Between Front Power Window Motor And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK ENCODER GROUND CIRCUIT
1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between front power window motor LH connector D9 terminal 6 and main power window and door lock/unlock switch connector D7 terminal 2.
  6 (W/B) - 2 (W/B): Continuity should exist.
OK or NG
1. OK: Replace main power window and door lock/unlock switch.
2. NG: Repair or replace harness.

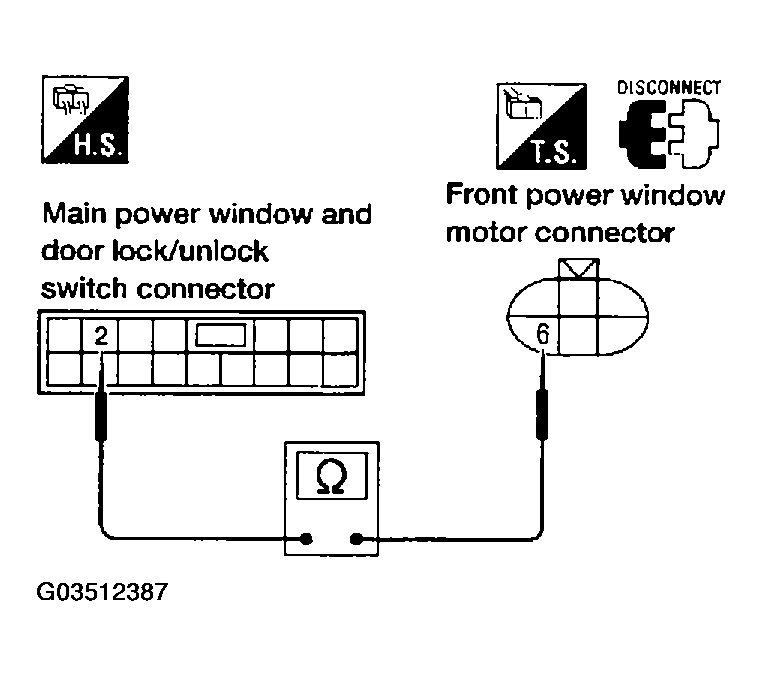

Fig 4: Checking Continuity Between Front Power Window Motor And Main Power Window Switch Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK ENCODER SIGNAL
1. Connect front power window motor LH.
2. Turn ignition switch ON.
3. Check the signal between main power window and door lock/unlock switch connector and ground with oscilloscope.

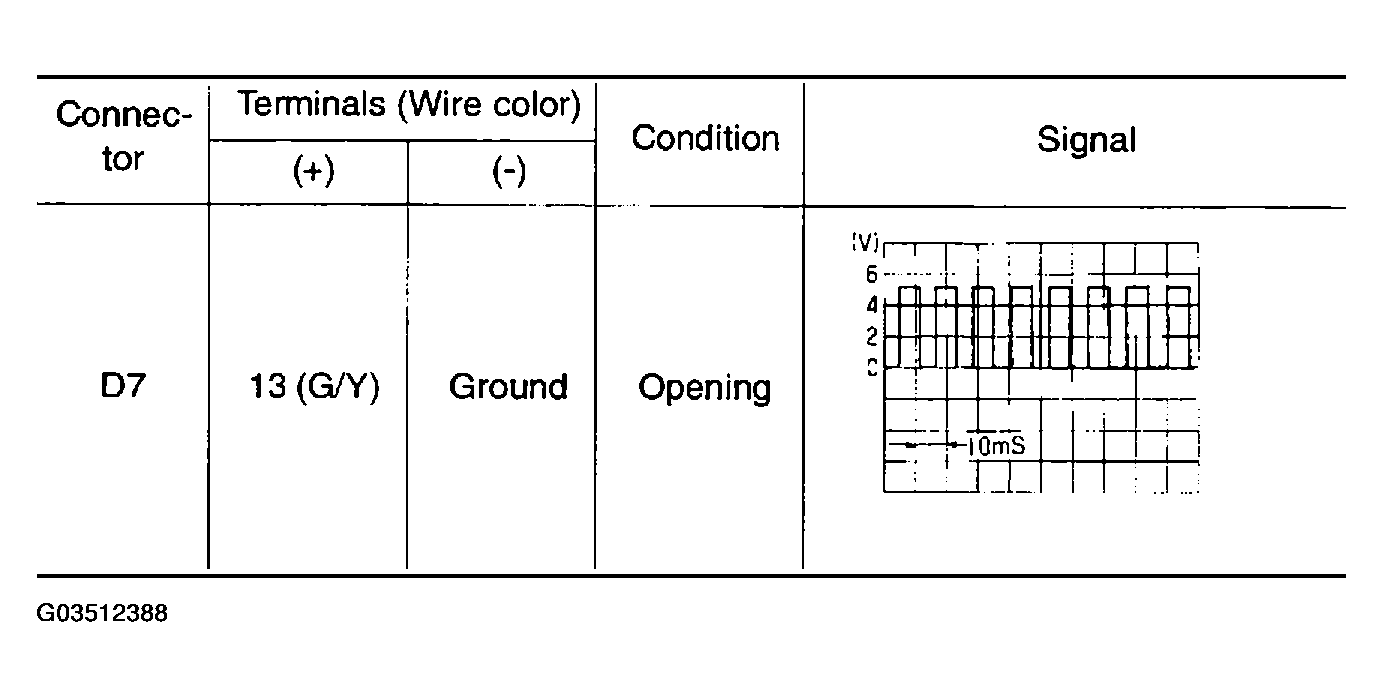

Fig 5: Connector Condition Signal Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
