CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

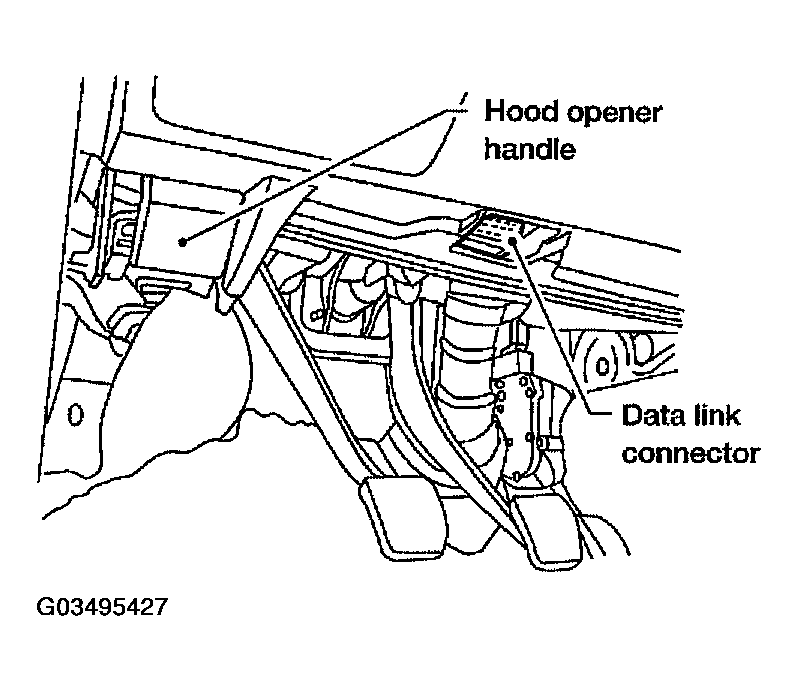

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

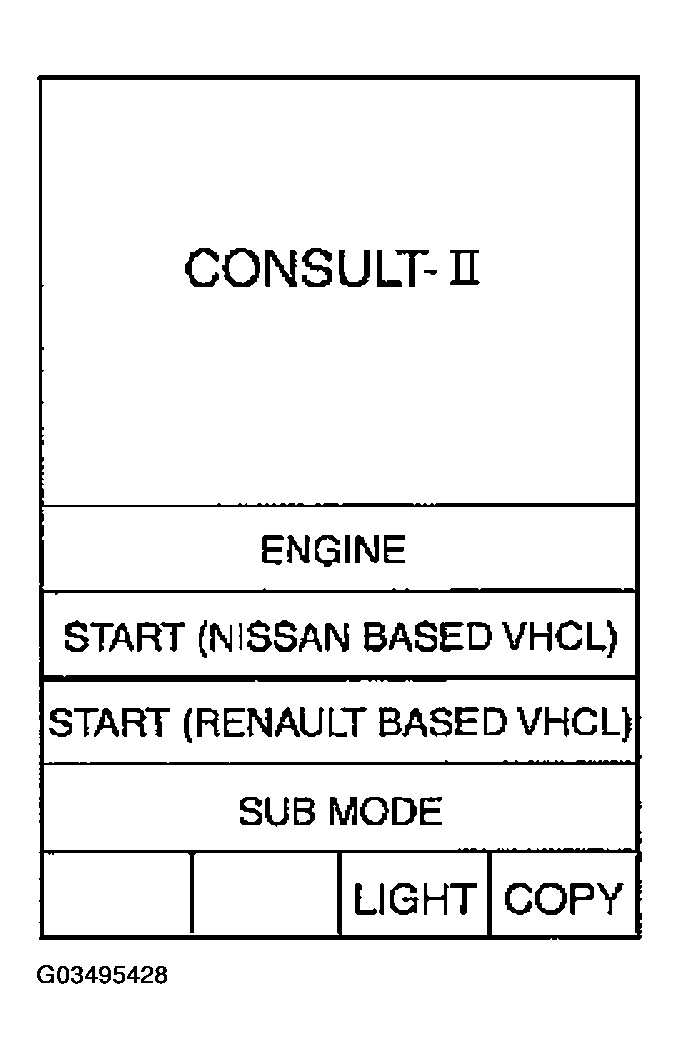

Touch "START (NISSAN BASED VHCL)".

Fig 2: Display Start Nissan Based Vhcl
Courtesy of NISSAN MOTOR CO., U.S.A.

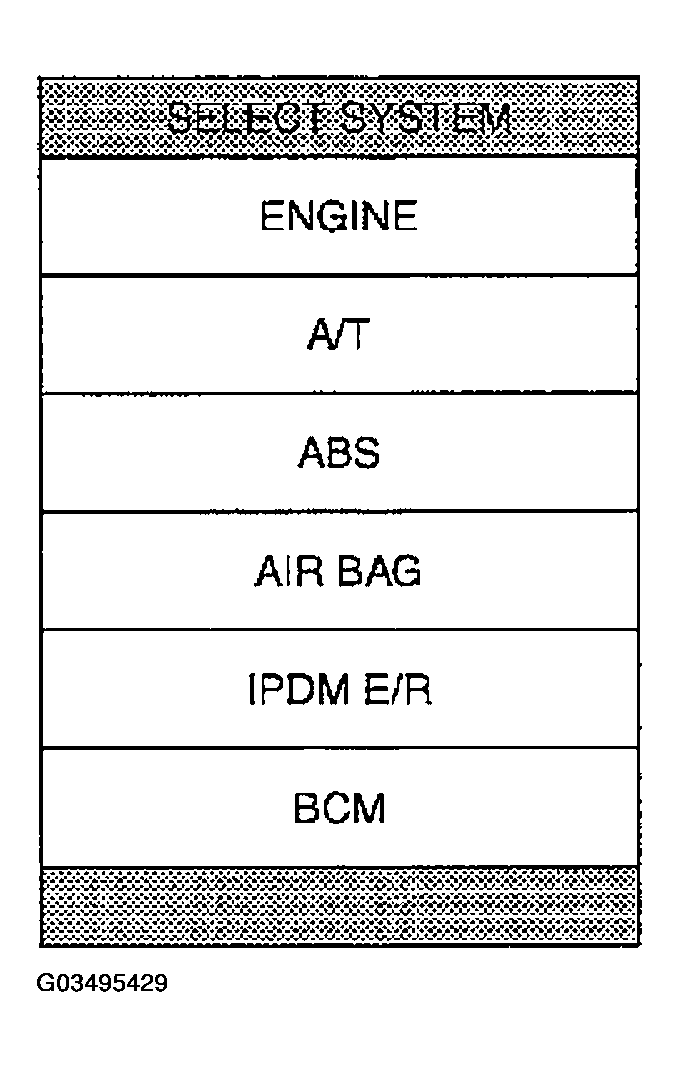

Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN article to check data link connector (DLC) circuit.

Fig 3: Display Select System
Courtesy of NISSAN MOTOR CO., U.S.A.

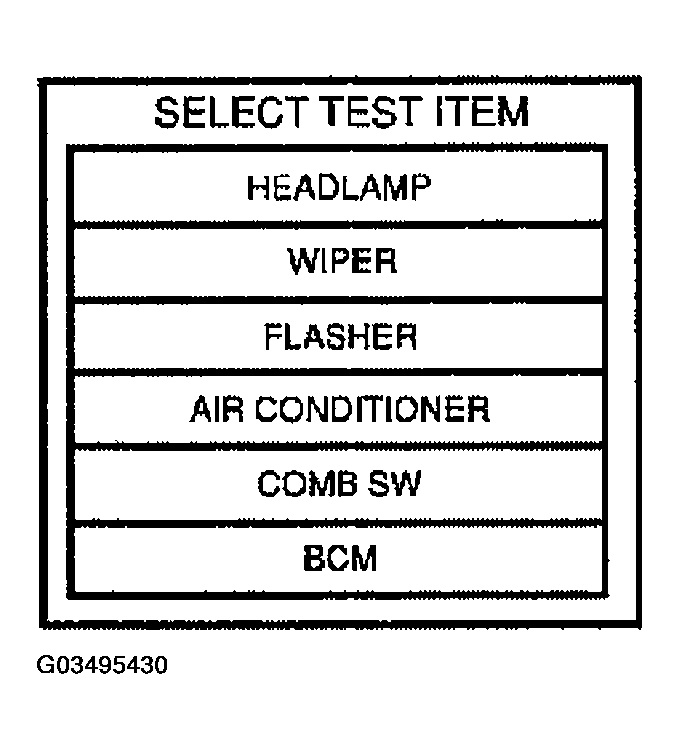

Touch "BCM" on "SELECT TEST ITEM" screen.

Fig 4: Display Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.

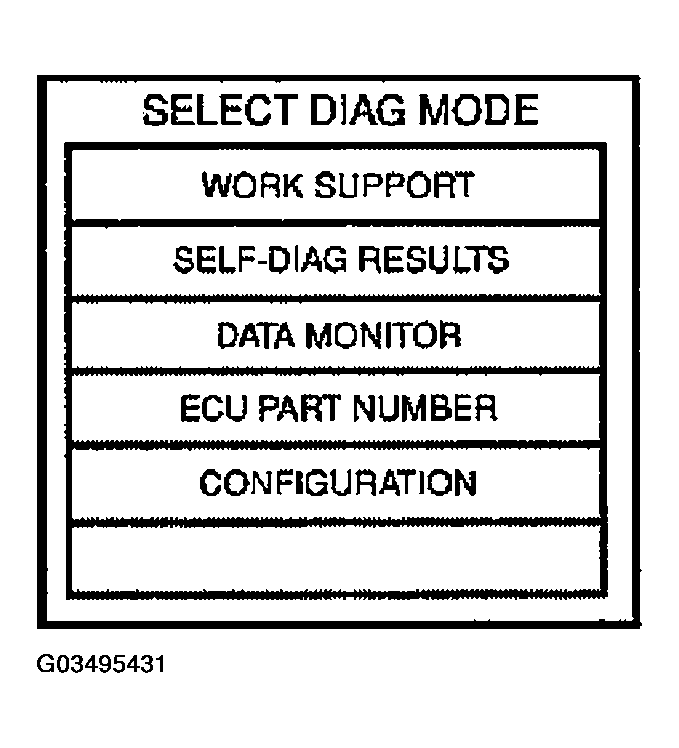

Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

Fig 5: Display Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A34" and "OK" on "VEHICLE SELECT' screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION in General Information.
