2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Component Locations
WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | Underneath Brake Master Cylinder |
| Body Computer Module (BCM) | Behind Left End Of Dash, See Fig 6 |
| Combination Meter | Behind Steering Wheel in Dash, See Fig 5 |
| Data Link Connector | Underside Of Dash In Front Of Driver Seat, See Fig 3 |

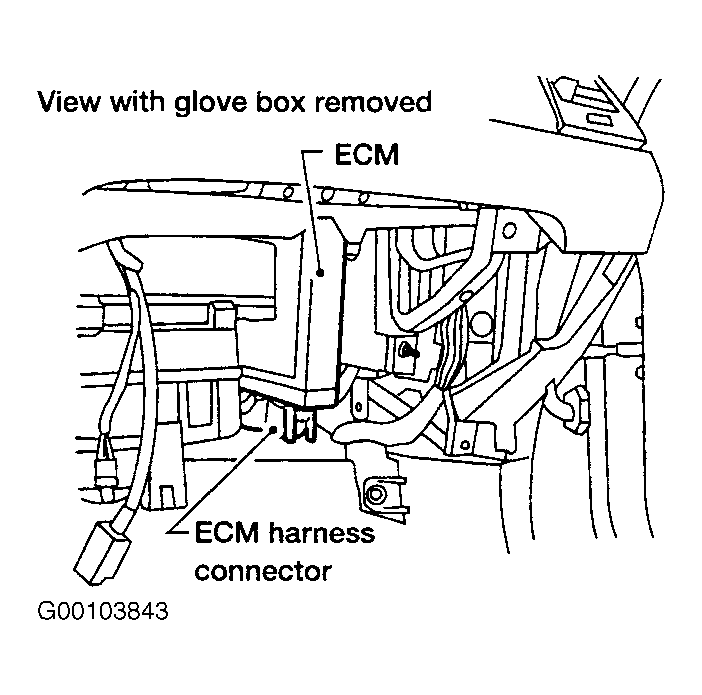

| Engine Control Module (ECM) | Behind Glove Box, See Fig 1 |
| Intelligent Power Distribution Module (IPDM) | Under Hood Next To Coolant Reservoir Tank, See Fig 2 |
| Transmission Control Module (TCM) | Behind Glove Box Next To ECM, See Fig 4 |
