Without CONSULT-II

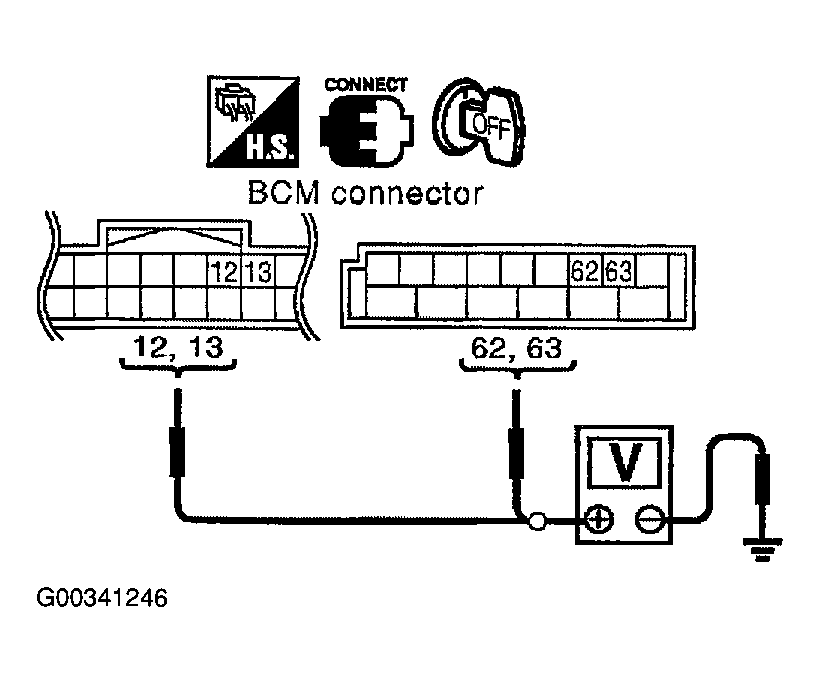

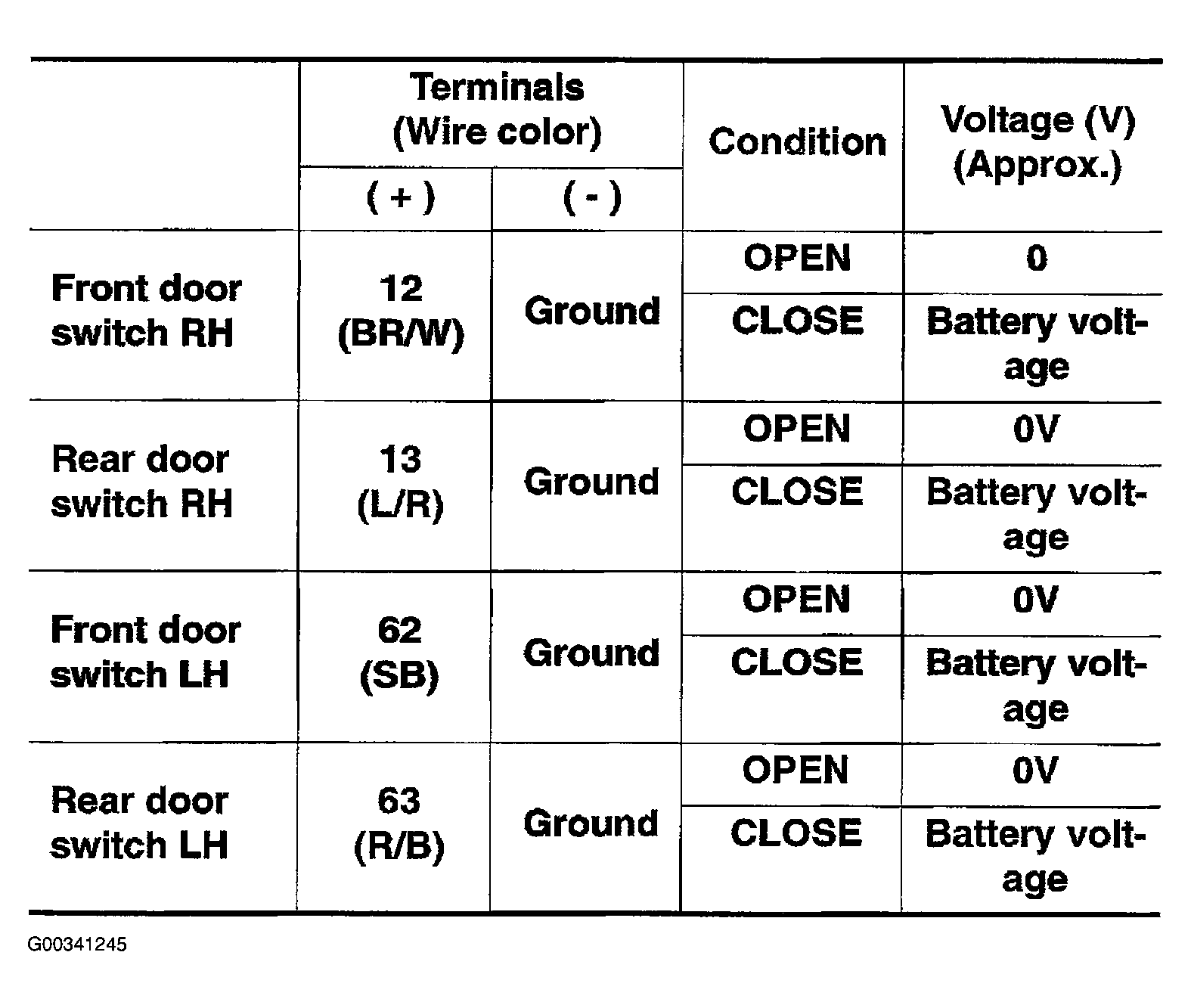

Check voltage between BCM harness connector terminals 12, 13, 62 and 63 and ground.
OK or NG
- OK >> Door switch circuit is OK.
- NG >> GO TO 2
