2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

"Multi Remote ENT"

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" to the data link connector.

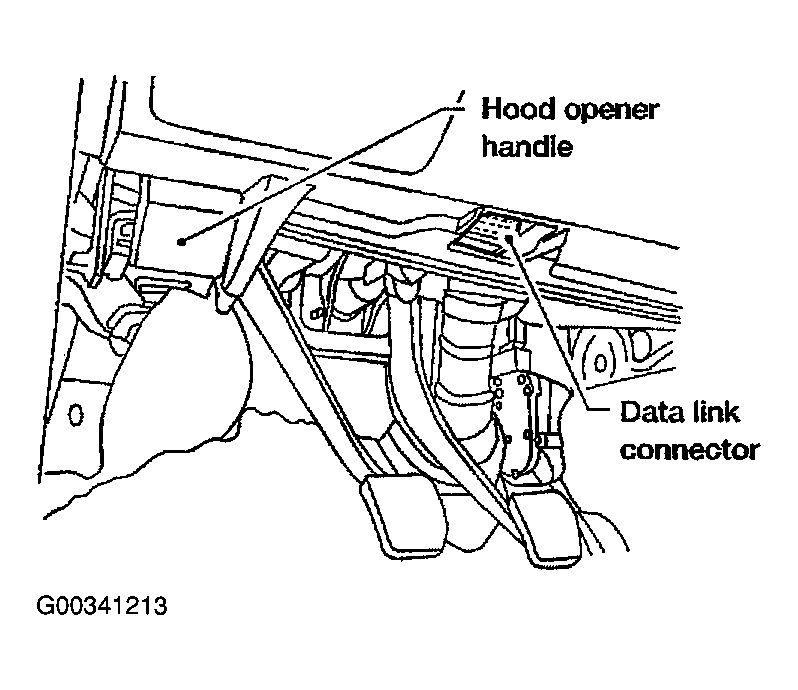

    Fig 1: Connecting "CONSULT-II" To Data Link Connector
    G00341213Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START".

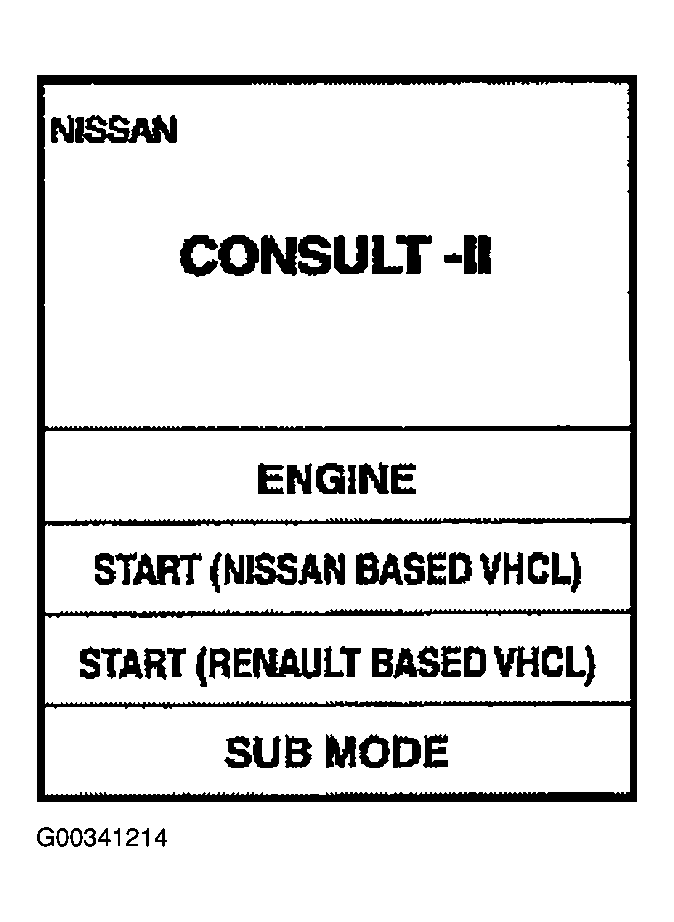

    Fig 2: CONSULT-II Display - Touch "START"
    G00341214Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

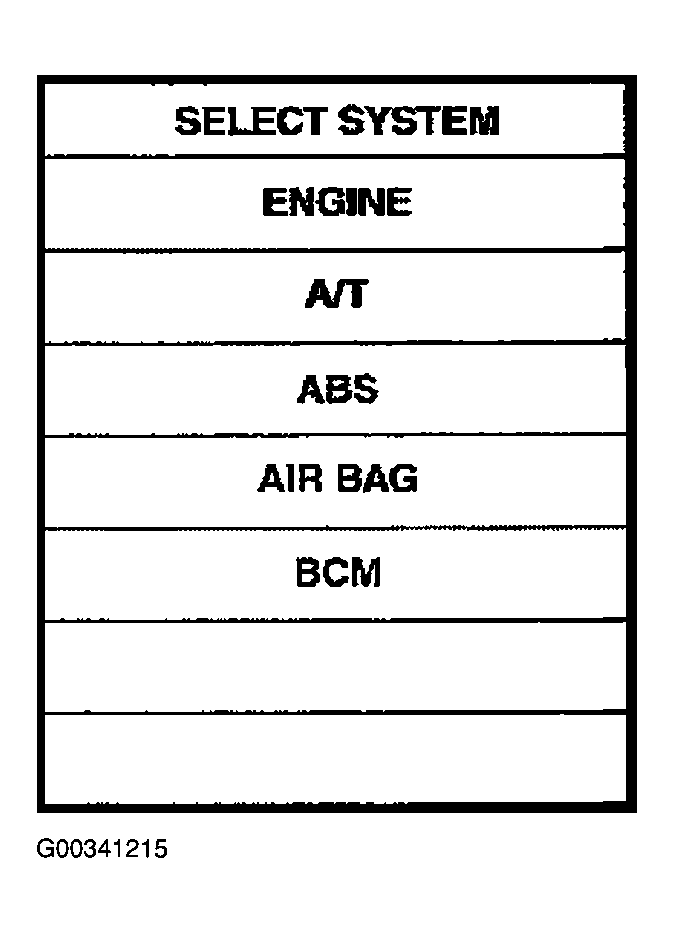

    Fig 3: CONSULT-II Display - Touch "BCM"
    G00341215Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

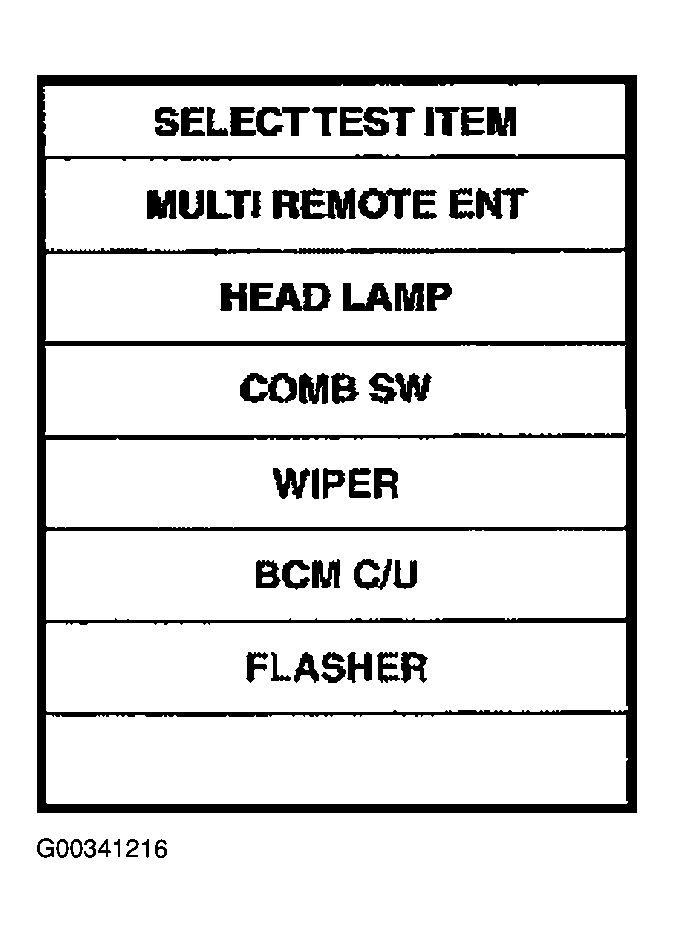

    Fig 4: CONSULT-II Display - Touch "MULTI REMOTE ENT"
    G00341216Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode.

    "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

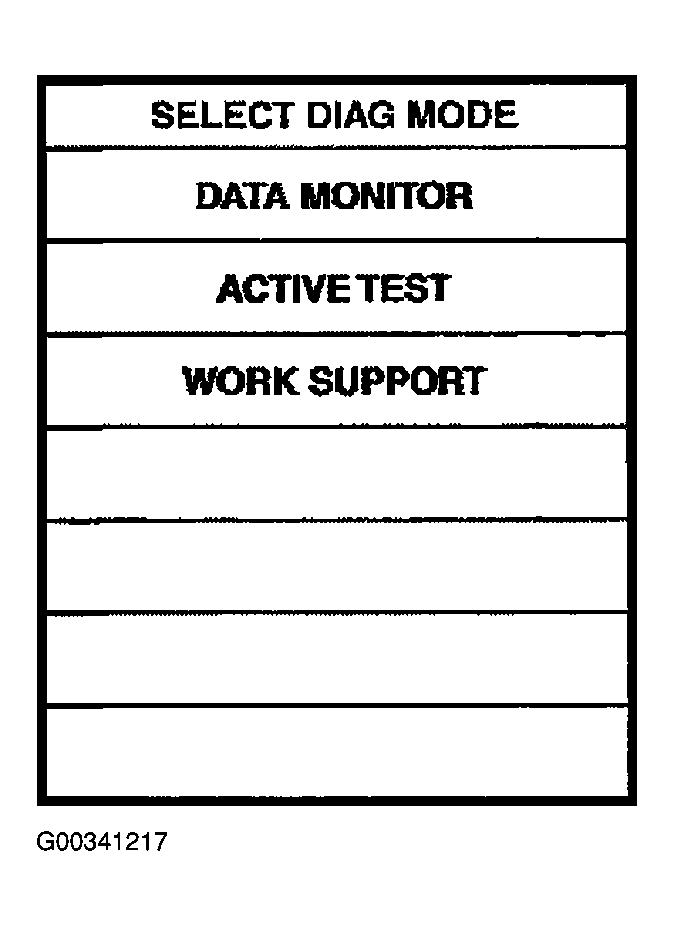

    Fig 5: CONSULT-II Display - Select Diagnosis Mode
    G00341217Courtesy of NISSAN MOTOR CO., U.S.A.
