2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

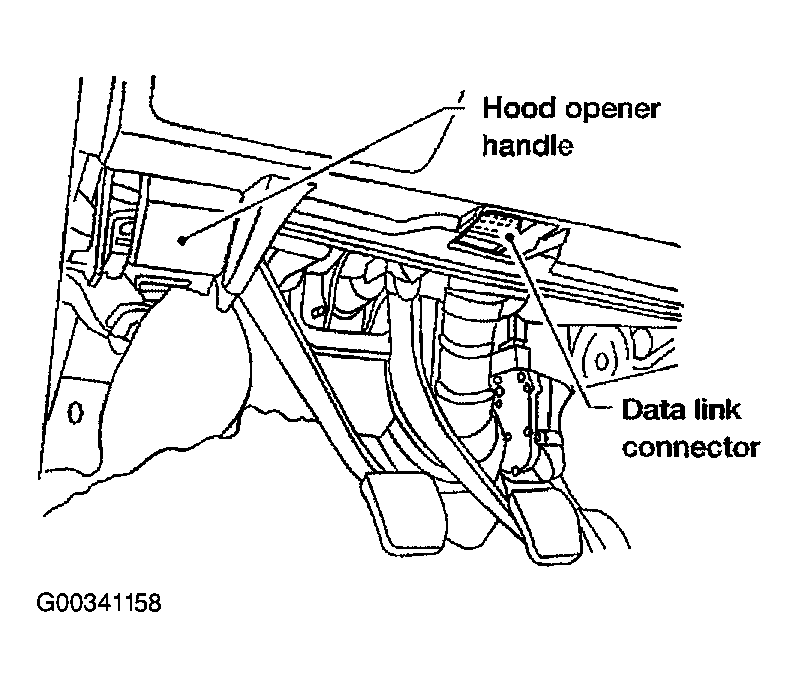

With ignition switch OFF, connect CONSULT-II to data link connector on vehicle, and turn ON ignition switch.
Touch " START ".

Fig 1: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.

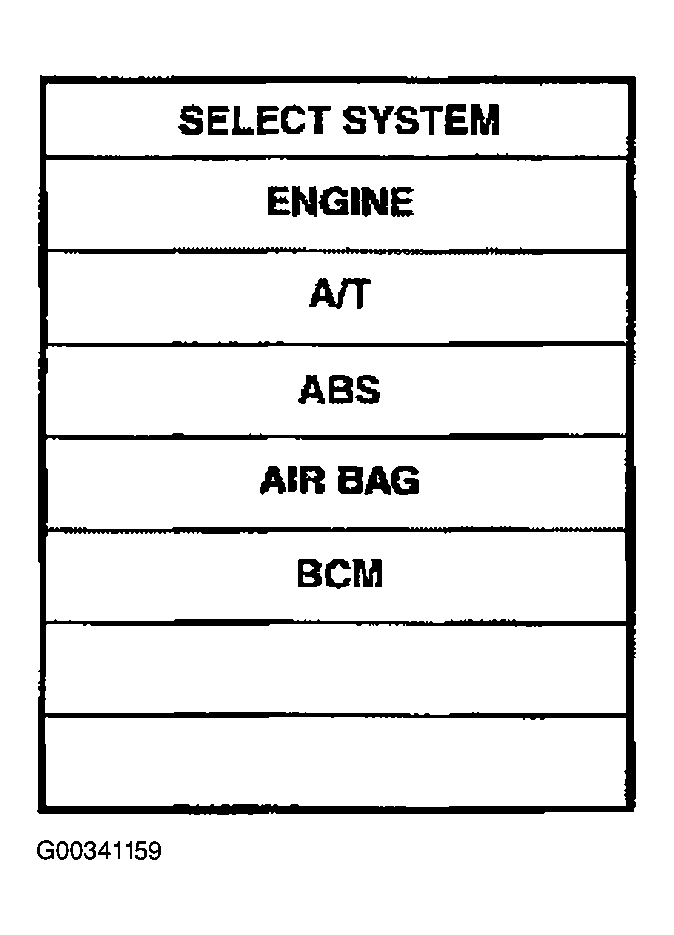

Touch "BCM" on "SELECT SYSTEM" screen.

Fig 2: CONSULT-II Display - Touch "BCM"
Courtesy of NISSAN MOTOR CO., U.S.A.

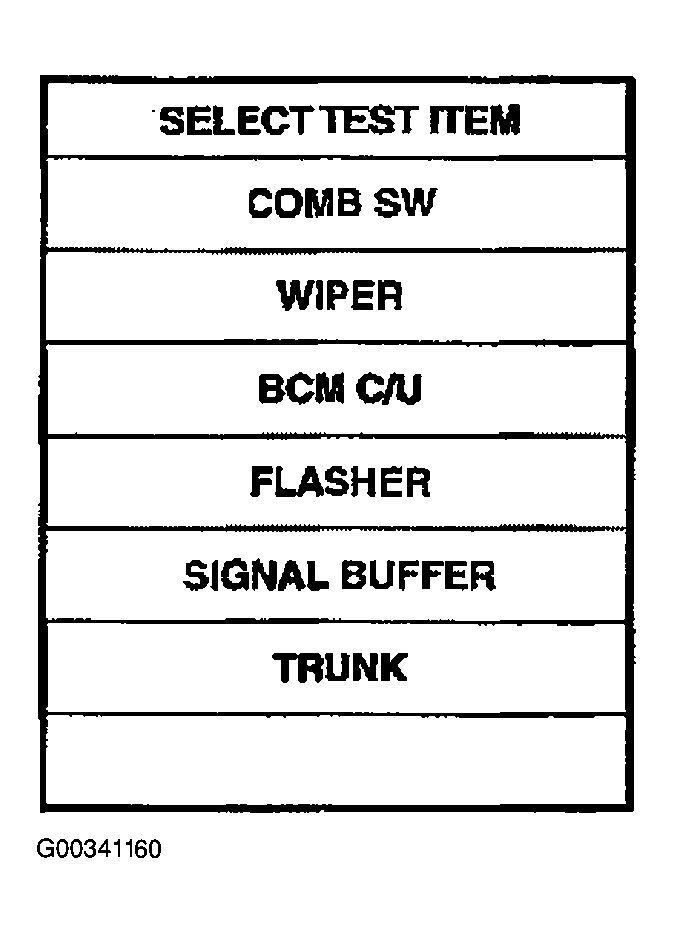

Select item to be diagnosed on "SELECT TEST ITEM" screen.

Fig 3: CONSULT-II Display - Select Test Item Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
