Display with Pushed "DEST" Button

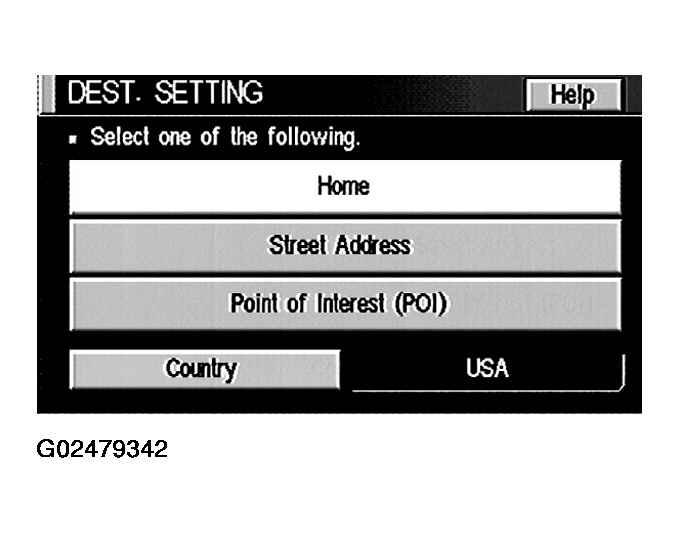

- Easy Mode

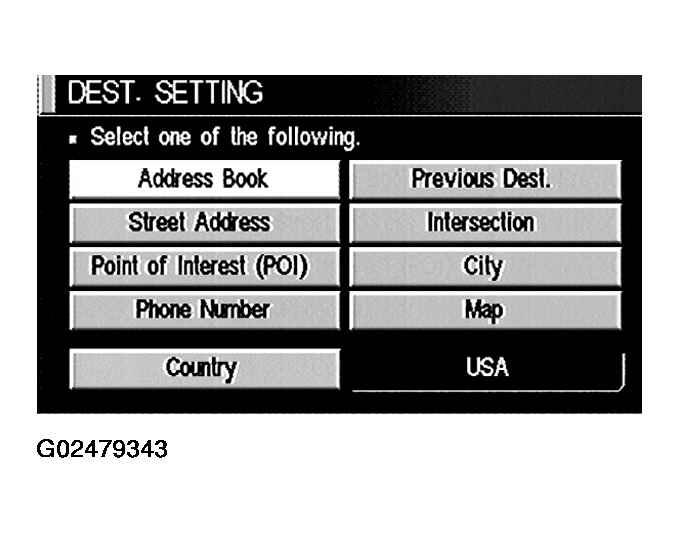

- Expert Mode
The function of each icon is as follows:
| Icon | Mode | Description | |
|---|---|---|---|
| Easy | Expert | ||
| Address Book | x | Favorite place can be saved to memory. | |
| Address/Street | x | x | The destination can be searched from the address. |
| Point of Interest (POI) | x | x | The destination of favorite facility can be searched. |
| Previous Dest. | x | The previous ten destinations stored in memory are displayed. | |
| Intersection | x | The destination can be searched from the intersection. | |
| City | x | The destination can be searched from city name. | |
| Map | x | The destination can be searched from the map. | |
| Phone Number | x | When two or more countries are included in one DVD-ROM, the destination can be searched for under the country name. | |
| Home | x | Sets the home as a destination. | |
| Help | x | Explanation of navigational functions appear on the display. | |
| Country | x | x | Select country (USA, CANADA) |
