WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Turn the audio system off.
While pushing the "PAUSE/MUTE" button, turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
- Shifting from current screen to previous screen is performed by pushing "PREV" button.

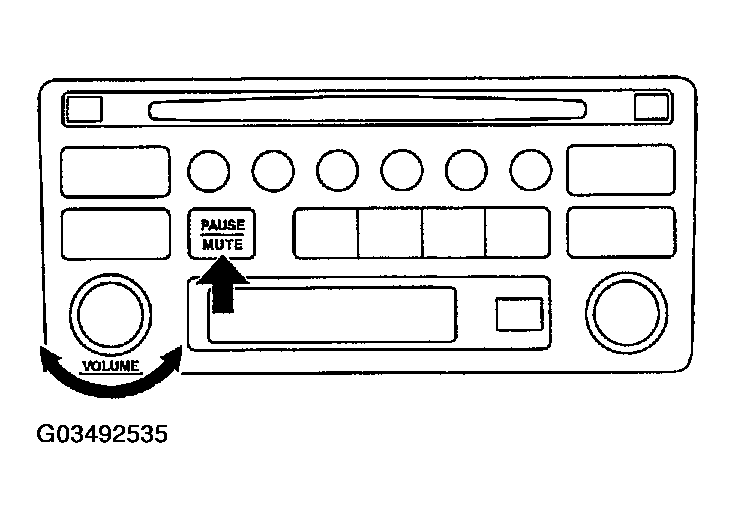

  Fig 1: Identifying PAUSE/MUTE Button
  Courtesy of NISSAN MOTOR CO., U.S.A.
The initial trouble diagnosis screen will be shown, and items "Self-Diagnosis (DCU)", "Self-Diagnosis (NAVI)", "Confirmation/Adjustment" and "CAN DIAG SUPPORT MONITOR" will become selective.

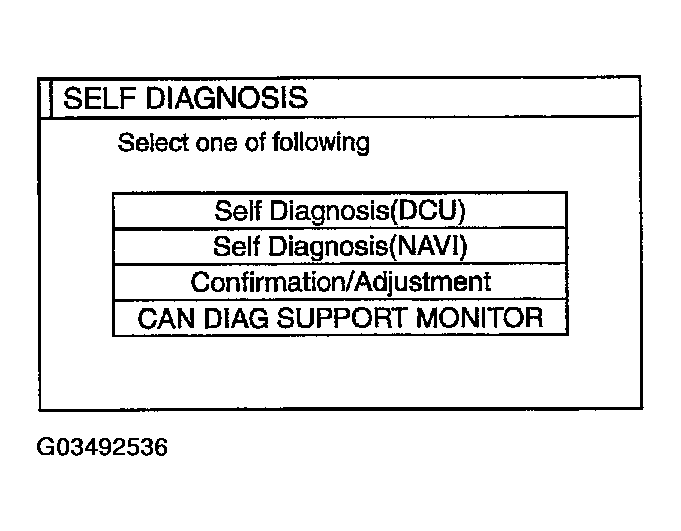

Fig 2: Displaying SELF DIAGNOSIS
Courtesy of NISSAN MOTOR CO., U.S.A.
When "Confirmation/Adjustment" is selected on the initial trouble diagnosis screen, the operation will enter the CONFIRMATION/ ADJUSTMENT mode. In this mode, check and adjustment of each item will become possible.
The initial trouble diagnosis screen will be shown, and items "Display Diagnosis", "Vehicle Signals", "Auto Climate Control" and "Navigation" will become selective.
Select each switch on "CONFIRMATION/ADJUSTMENT" screen to display the relevant diagnosis screen.

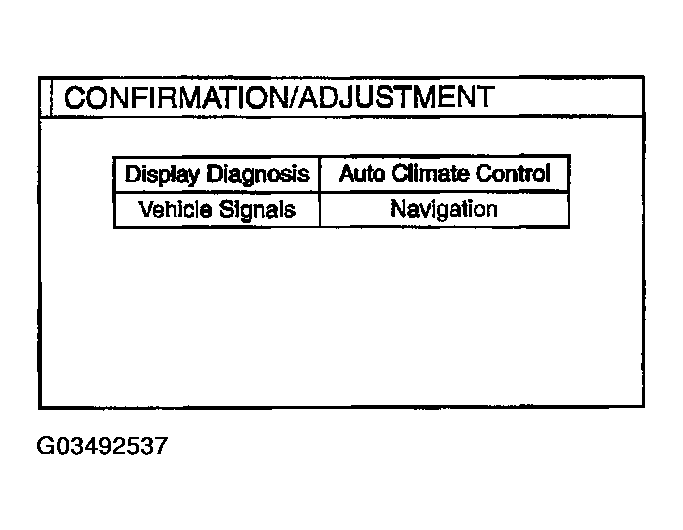

Fig 3: Displaying CONFIRMATION/ADJUSTMENT
Courtesy of NISSAN MOTOR CO., U.S.A.
