AV Communication Line Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK A/C AND AV SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect display unit connector and A/C and AV switch connector.
    3. Check continuity between display unit and A/C and AV switch.
      CONTINUITY CHECK CHART

      Terminals Continuity
      Display unit A/C and AV switch
      Connector Terminal (Wire color) Connector Terminal (Wire color)
      M39 11 (L/G) M48 6 (L/G) Yes
      13 (L/R) 8 (L/R)
      12 7

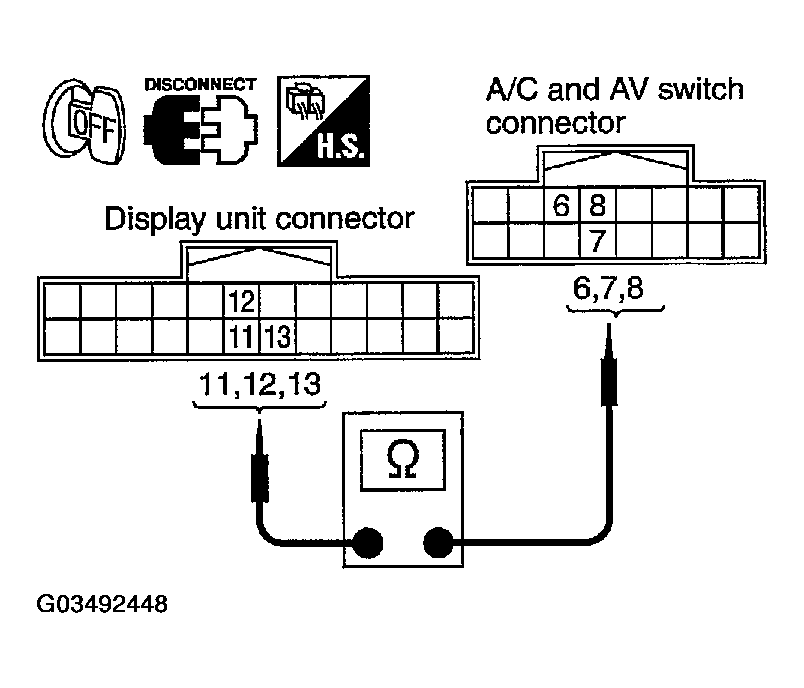

      Fig 1: Checking Continuity Between Display Unit And A/C And AV Switch
      G03492448Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between display unit and ground.
      CONTINUITY CHECK CHART

      Terminals Continuity
      Display unit Ground
      Connector Terminal (Wire color)
      M39 11 (L/G) No
      13 (L/R)

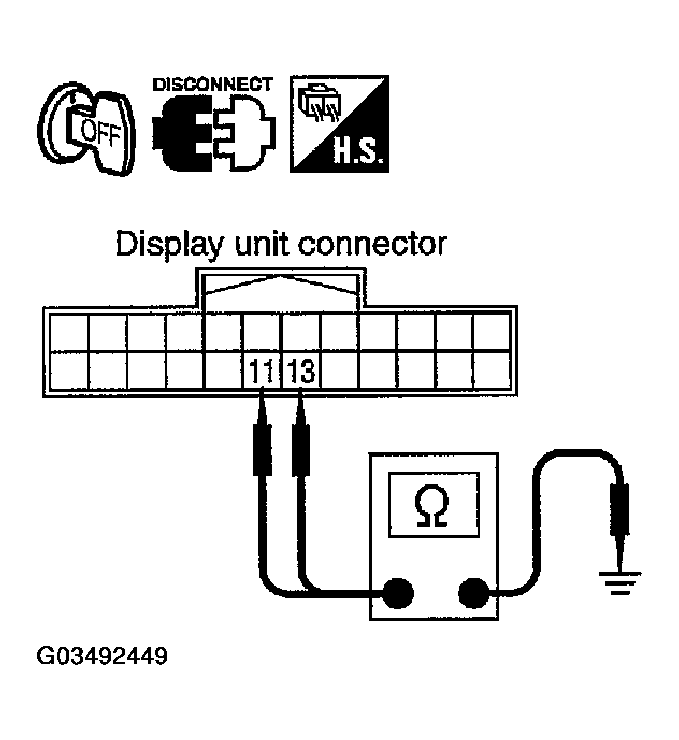

      Fig 2: Checking Continuity Between Display Unit And Ground
      G03492449Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace harness.
  2. CHECK AV COMMUNICATION SIGNAL
    1. Connect display unit connector and A/C and AV switch connector.
    2. Turn ignition switch ON.
    3. Check the signal between display unit harness connector M39 terminals 11 (L/G), 13 (L/R) and ground with CONSULT-II or oscilloscope.

      11 (L/G), 13 (L/R) - Ground: Refer to " TERMINALS AND REFERENCE VALUE FOR DISPLAY UNIT   ".

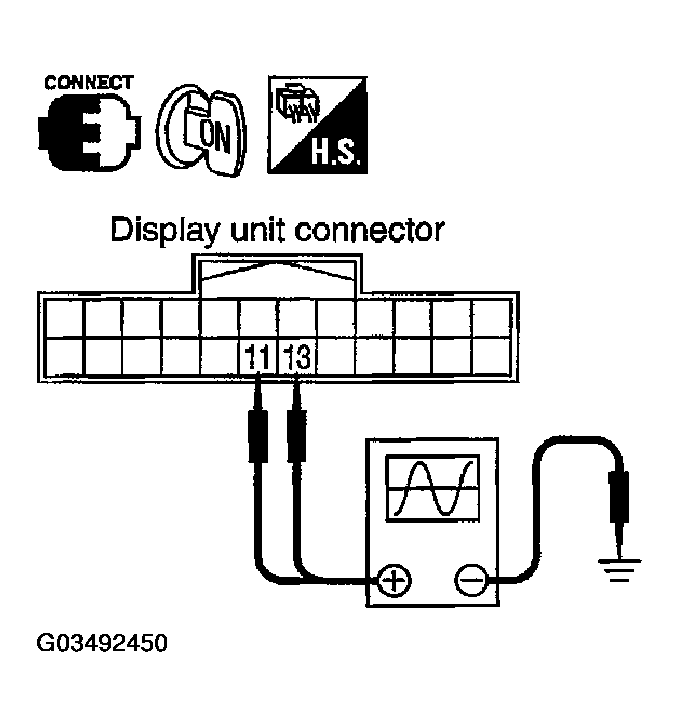

      Fig 3: Checking Signal Between Display Unit Harness Connector And Ground
      G03492450Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END.
    2. NG: Replace A/C and AV switch.
