2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Check Key Switch

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK KEY SWITCH INPUT SIGNAL

    With CONSULT-II

    Check ignition key switch "IGN ON SW" in "DATA MONITOR" mode with CONSULT-II.

    • When key is inserted in ignition key cylinder

      KEY ON SW: ON

    • When key is removed from ignition key cylinder

      KEY ON SW: OFF

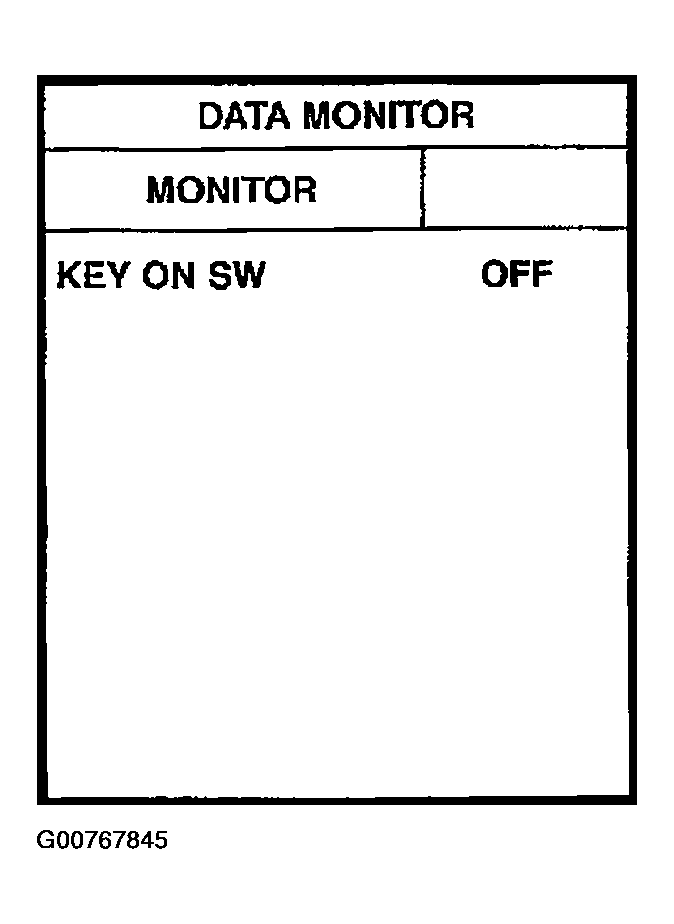

      Fig 1: CONSULT-II Function Display Data Monitor
      G00767845Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector and ground.

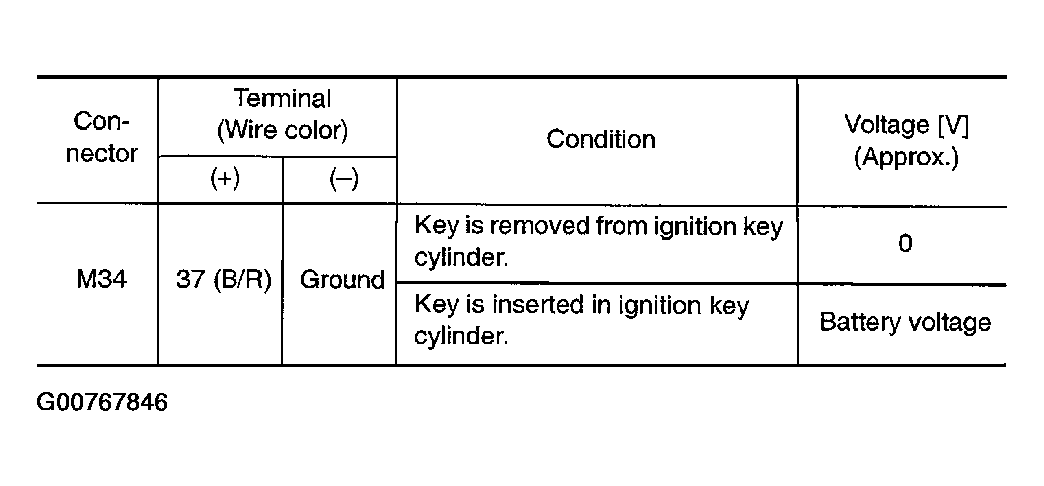

    Fig 2: Terminal Voltage Chart
    G00767846Courtesy of NISSAN MOTOR CO., U.S.A.
