2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Check Back Door Switch

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK BACK DOOR SWITCH INPUT SIGNAL

    With CONSULT-II

    Check back door switch ("BACK DOOR SW") in "DATA MONITOR" mode with CONSULT-II.

    • When back door is open

      BACK DOOR SW: ON

    • When back door is closed

      BACK DOOR SW: OFF

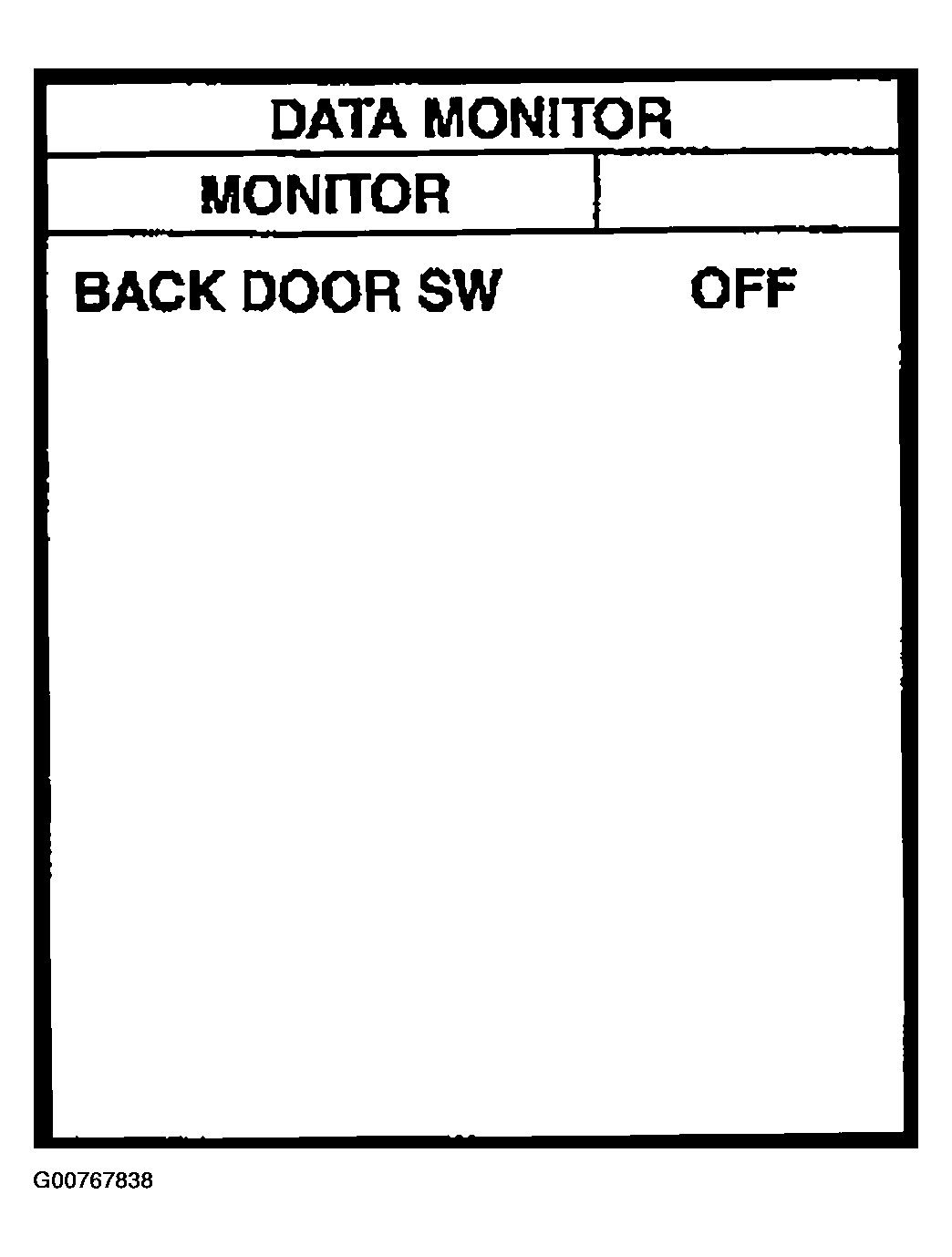

      Fig 1: CONSULT-II Function Display Data Monitor
      G00767838Courtesy of NISSAN MOTOR CO., U.S.A.

      Without CONSULT-II

      Check voltage between BCM connector and ground.

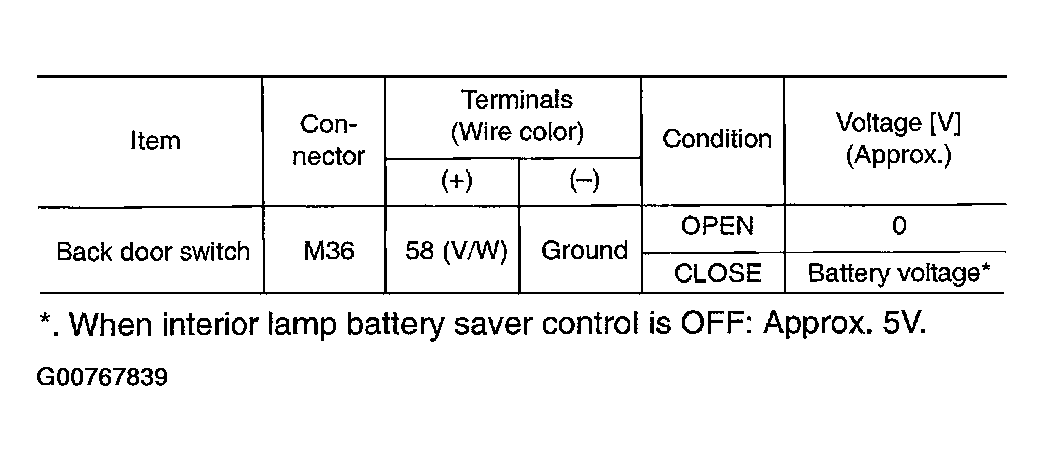

      Fig 2: Terminal Voltage Chart
      G00767839Courtesy of NISSAN MOTOR CO., U.S.A.
