2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Check ACC Power Supply Circuit

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK ACC POWER

    With CONSULT-II

    Check ACC power ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

    • When ignition switch is in "ACC" position

      ACC ON SW: ON

    • When ignition switch is in "OFF" position

      ACC ON SW: OFF

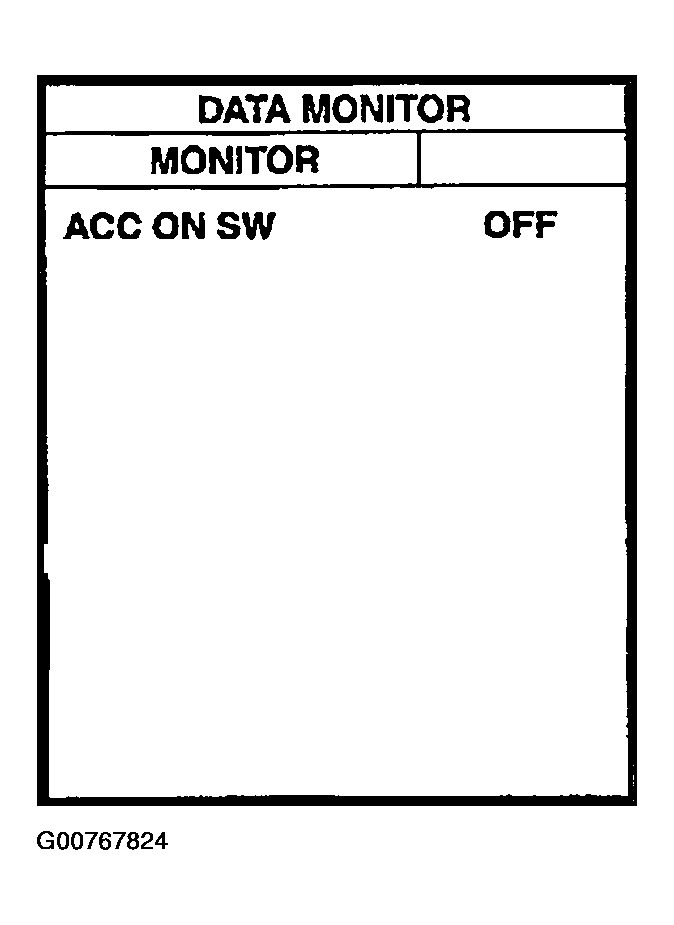

      Fig 1: CONSULT-II Function Display Data Monitor
      G00767824Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector and ground.

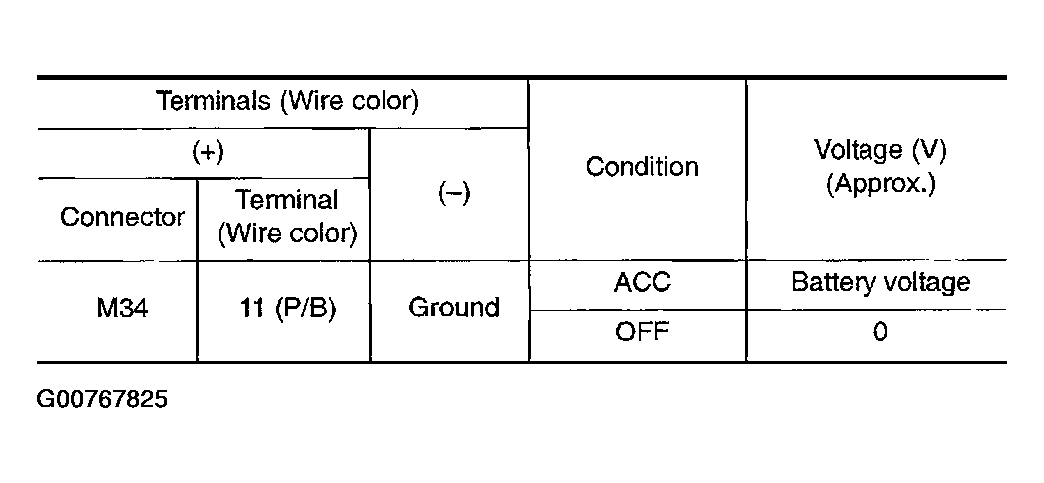

    Fig 2: Terminal Voltage Chart
    G00767825Courtesy of NISSAN MOTOR CO., U.S.A.
