2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Adapter Case
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Select the gear ring bearing adjusting shim (adapter case side). Refer to "SELECTING ADJUSTING SHIMS ".
- Install the oil gutter.

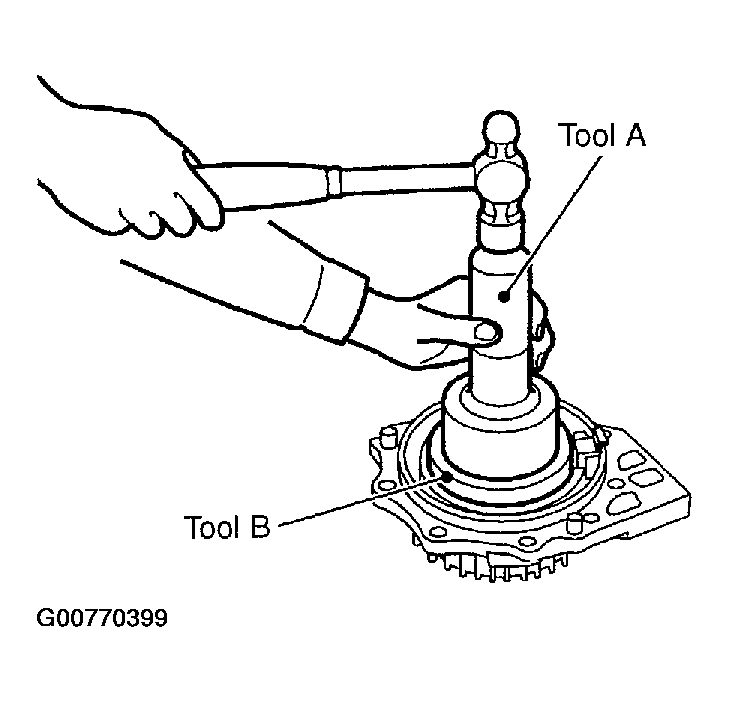

- Using a drift, install the selected gear ring bearing adjusting shim (adapter case side) and gear ring bearing outer race (adapter case side).
Tool number A: ST30720000 (J25405)
B: KV40105230 (-)
- Using a drift, drive the adapter case oil seal until it becomes flush with the case end.
Tool number: KV38101700 (-)
CAUTION:- When checking the Total preload torque, measure it without the oil seal, then install the oil seal.
- Do not reuse the oil seal.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of the oil seal.
