CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.

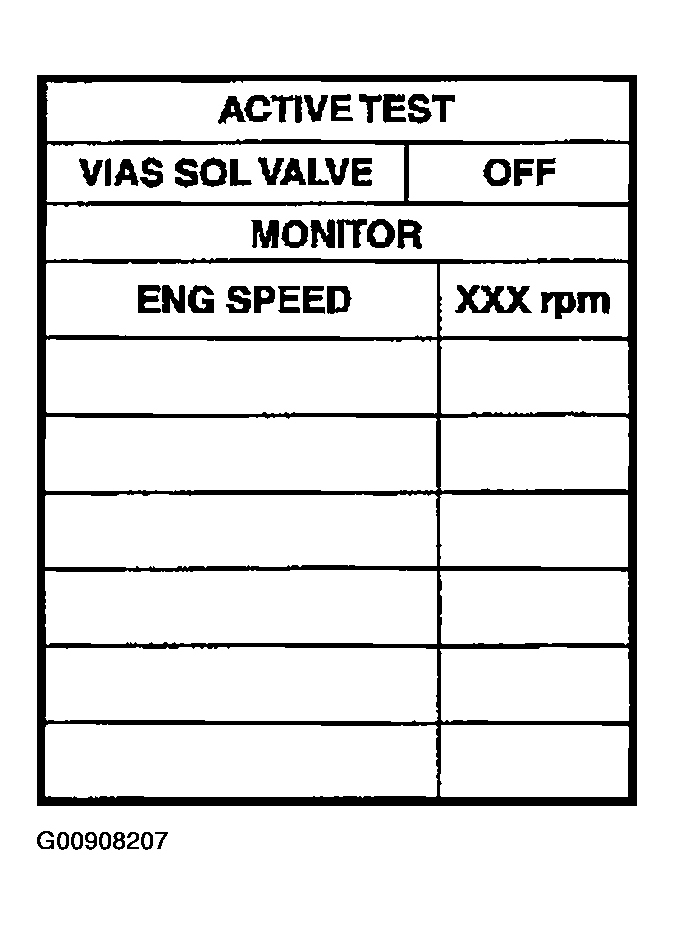

  Fig 1: Displaying "VIAS SOL VALVE" In "ACTIVE TEST" Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn VIAS control solenoid valve "ON" and "OFF", and make sure that power valve actuator rod moves.

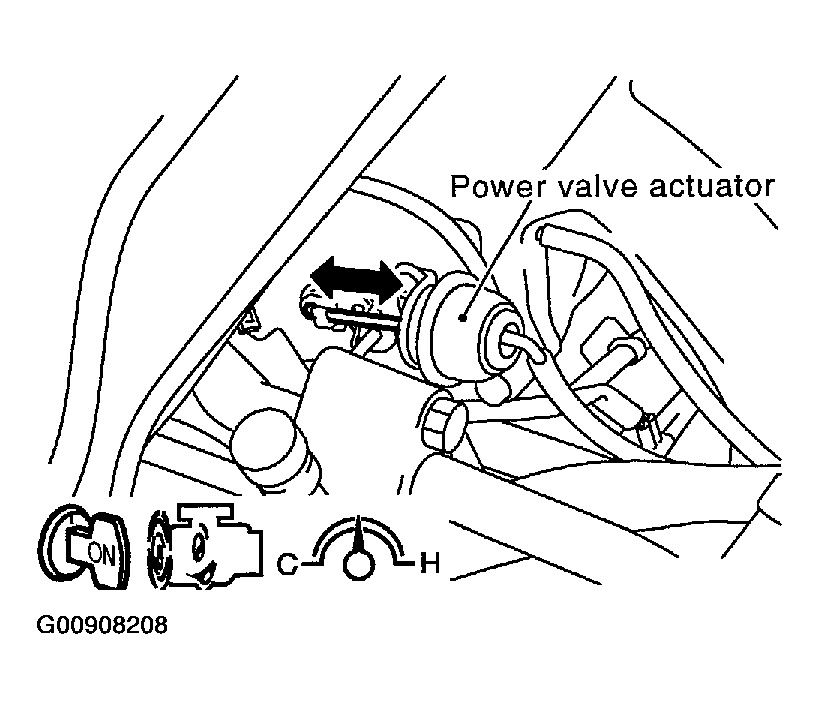

  Fig 2: Identifying Power Valve Actuator
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5, 000 RPM and make sure that power valve actuator rod moves.
OK or NG
1. OK: INSPECTION END
2. NG (With CONSULT-II): GO TO 2.
3. NG (Without CONSULT-II): GO TO 3.

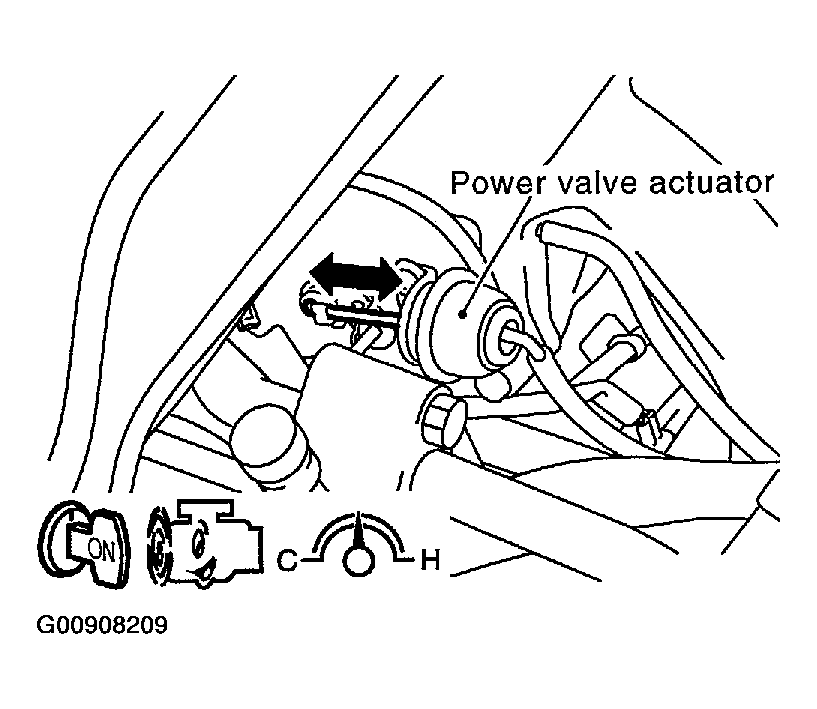

  Fig 3: Identifying Power Valve Actuator
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.
4. Turn VIAS control solenoid valve "ON" and "OFF", and check vacuum existence under the following conditions.

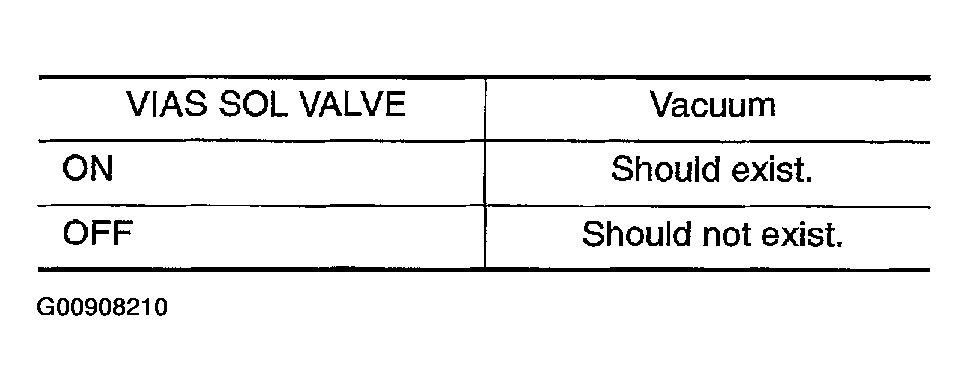

Fig 4: Vias Sol Valve Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
