2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Summary Chart: Notes

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

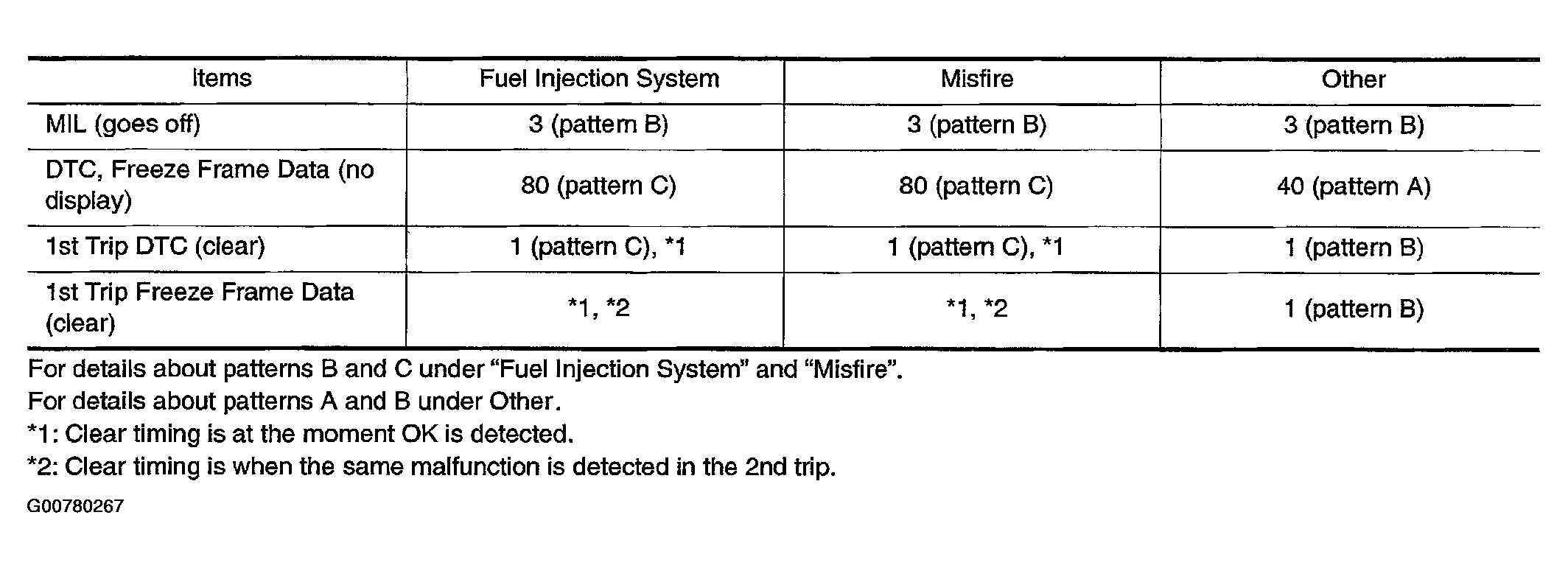

Fig 1: Summary Chart
G00780267Courtesy of NISSAN MOTOR CO., U.S.A.

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS FOR "MISFIRE " < EXHAUST QUALITY DETERIORATION > "FUEL INJECTION SYSTEM"Β

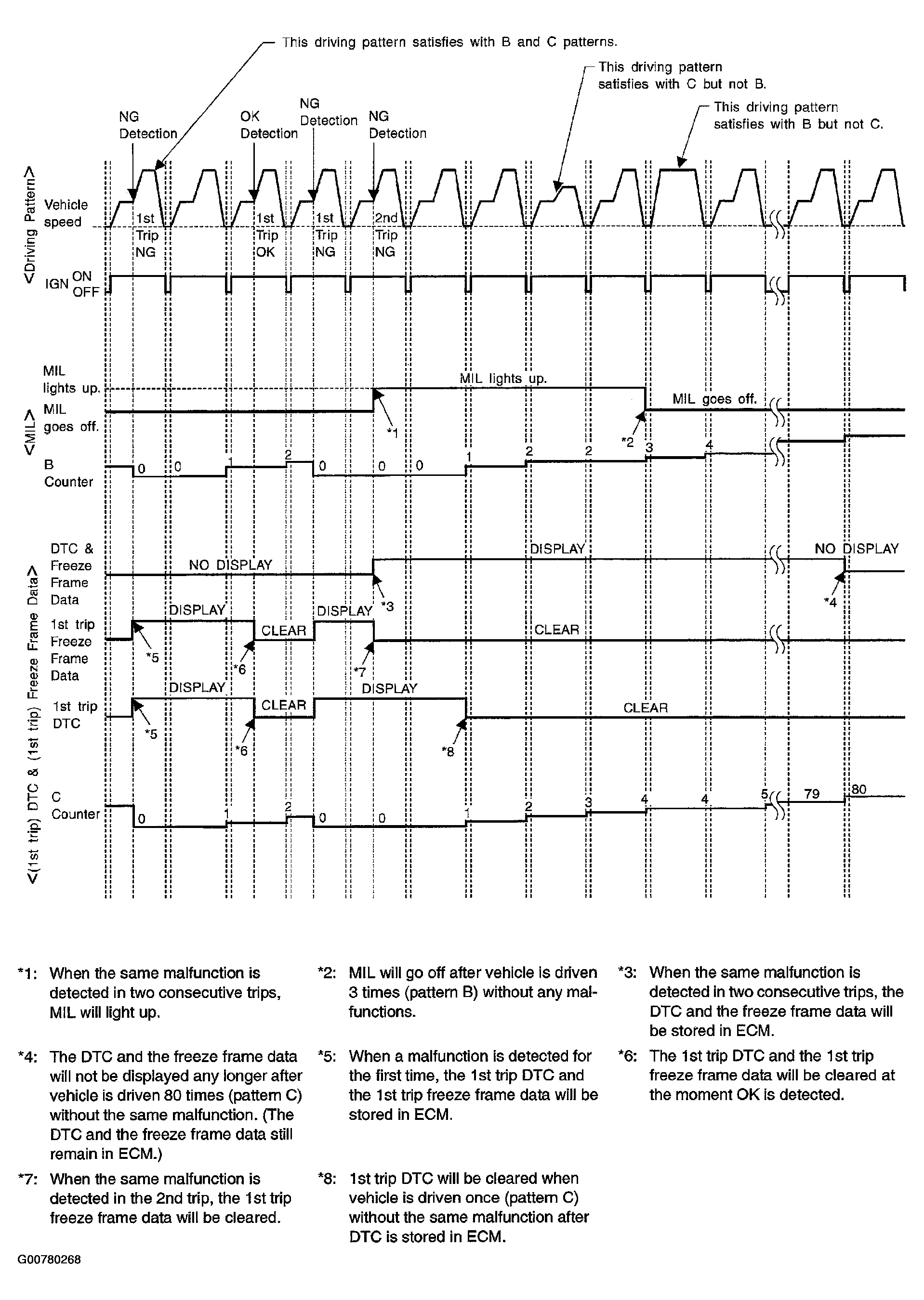

Fig 2: Identifying MIL, DTC, 1ST Trip DTC And Driving Patterns For " Misfire "
G00780268Courtesy of NISSAN MOTOR CO., U.S.A.

EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM"Β
