2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect all harness connectors disconnected.
- Turn ignition switch ON.

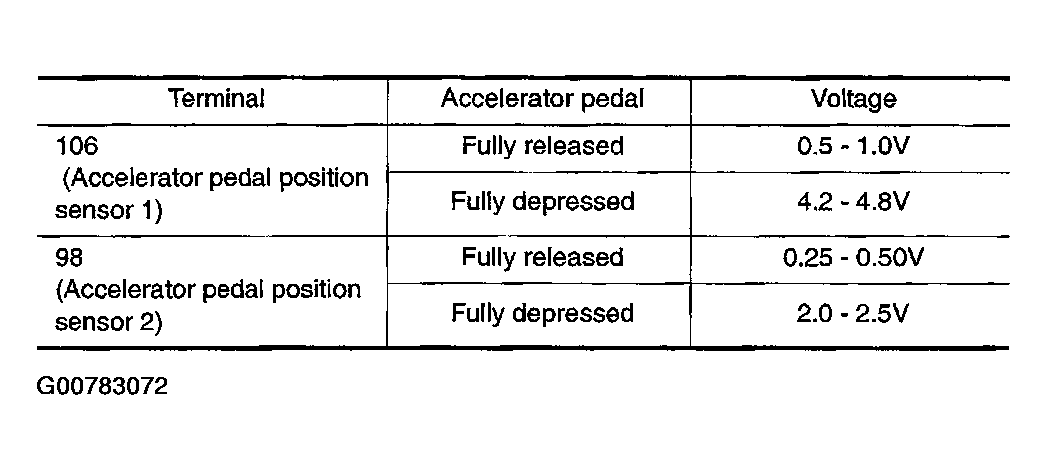

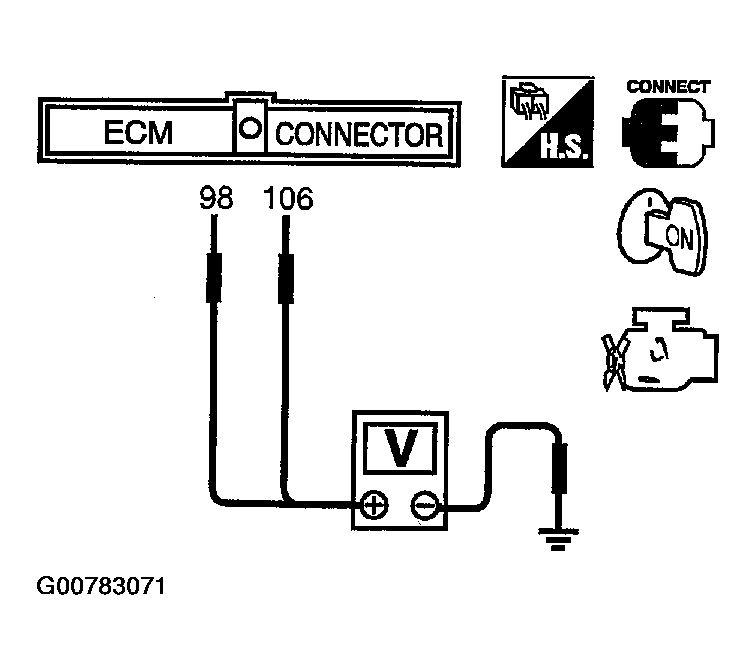

- Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and engine ground under the following conditions.
- If NG, replace accelerator pedal assembly and go to next step.
- Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
- Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
- Perform "IDLE AIR VOLUME LEARNING ".
