Diagnostic Procedure
- CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER

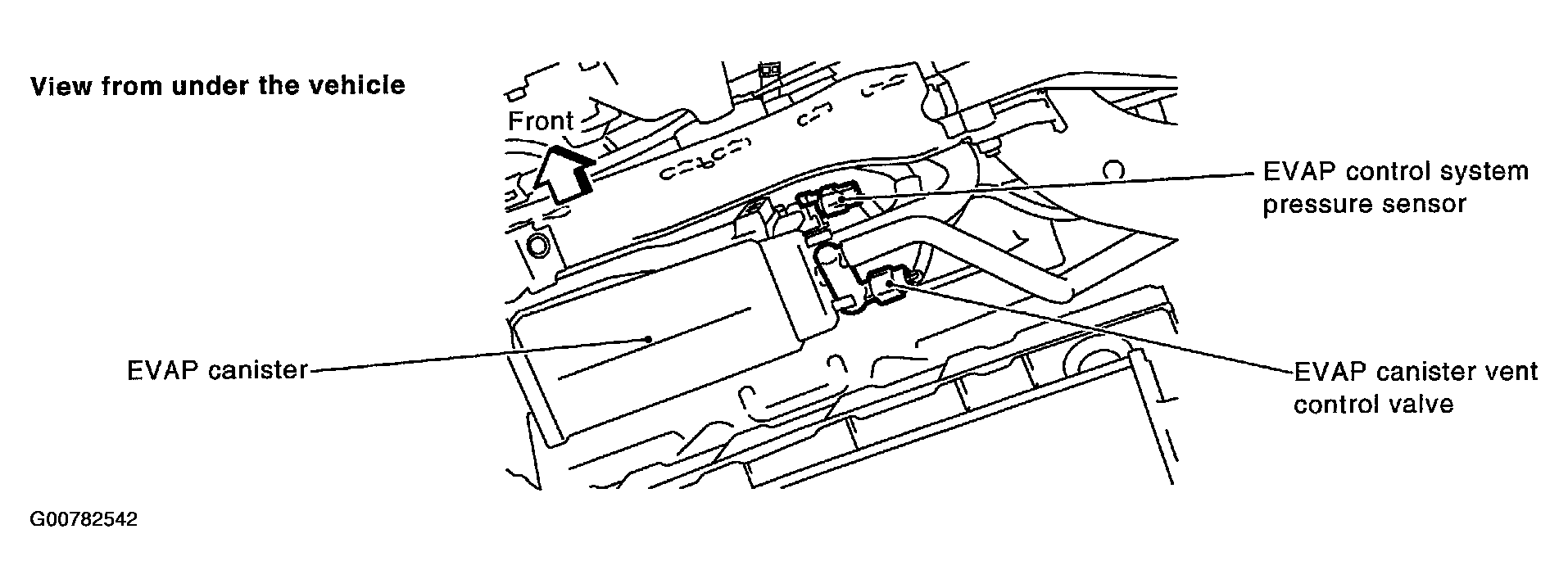

- Disconnect EVAP control system pressure sensor harness connector.
- Check sensor harness connector for water.
Water should not exist.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace harness connector.
- CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to "COMPONENT INSPECTION ".
OK or NG
- OK: GO TO 3.
- NG: Replace EVAP control system pressure sensor.
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ". For wiring diagram, refer to WIRING DIAGRAM .
- : INSPECTION END
