2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAMSHAFT POSITION SENSOR (PHASE)

Loosen the fixing bolt of the sensor.
Disconnect camshaft position sensor (PHASE) harness connector.
Remove the sensor.
Visually check the sensor for chipping.

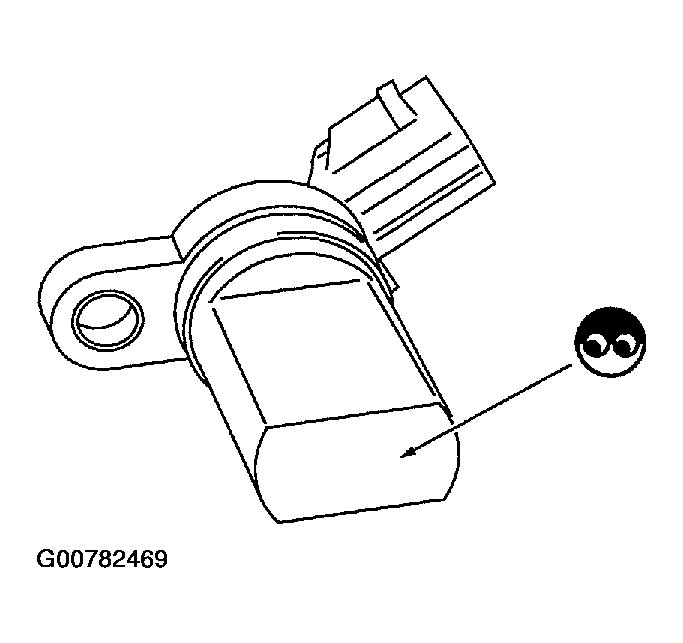

Fig 1: Checking Camshaft Position Sensor (PHASE) Chipping
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown in the figure.

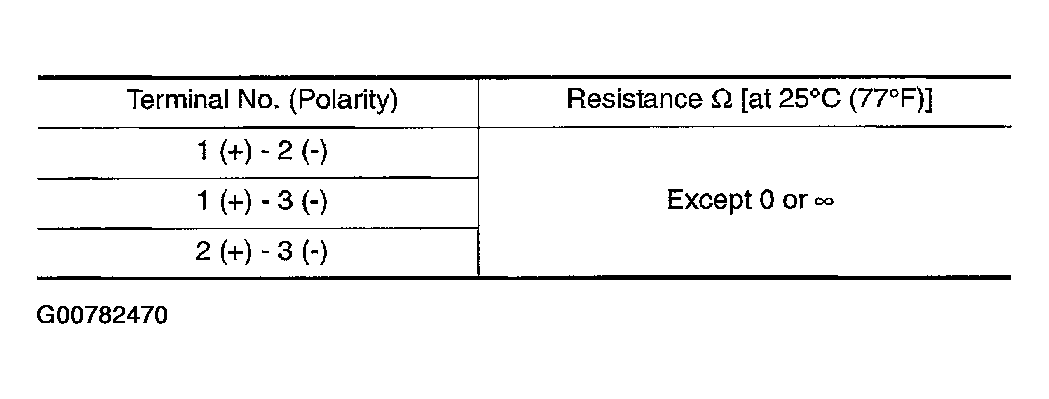

Fig 2: Checking Resistance Between Camshaft Position Sensor Terminals (PHASE)
Courtesy of NISSAN MOTOR CO., U.S.A.
