2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Ignition Signal Check For Display Control Unit
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK IGNITION SIGNAL
- Disconnect display control unit connector.
- Turn ignition switch ON.

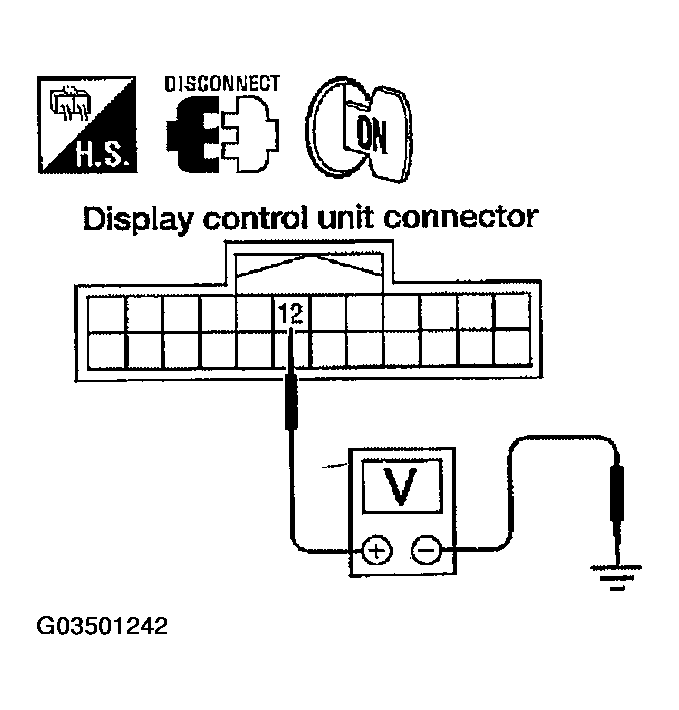

- Check voltage between display control unit harness connector M94 terminal 12 (G) and ground.
- Battery voltage should exist.
OK or NG
- OK: Replace display control unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT .
- NG: Check harness for open or short between display control unit and fuse.
