2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

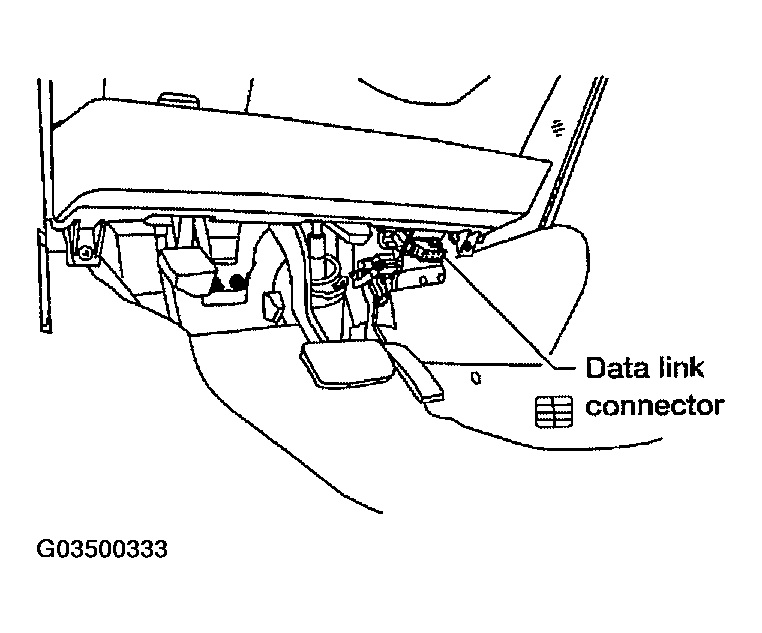

    Fig 1: Identifying Data Link Connector
    G03500333Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

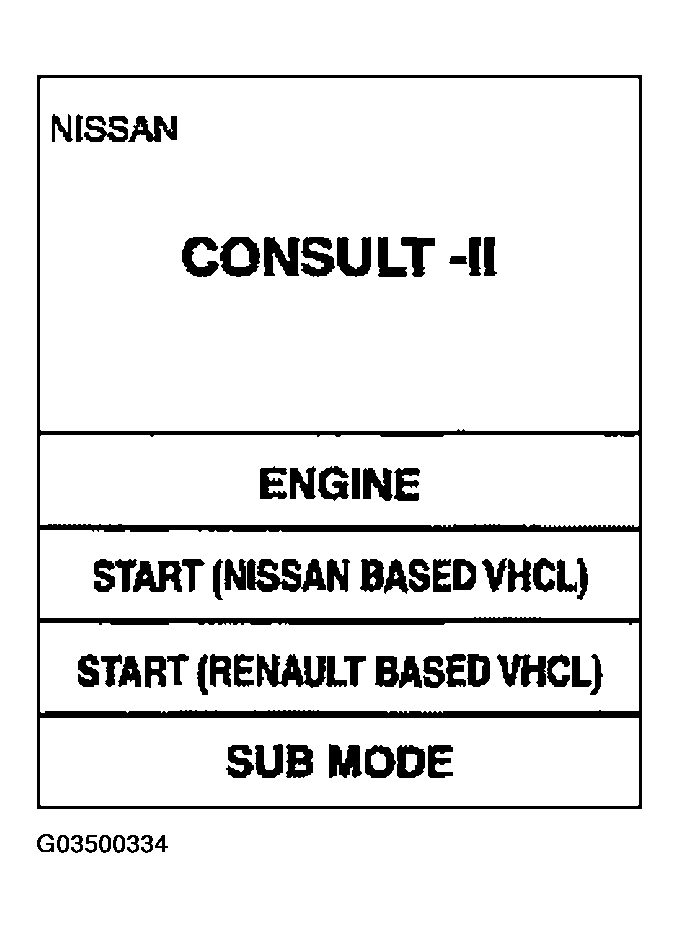

    Fig 2: Display CONSULT - II
    G03500334Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "AUTO DRIVE POS" and "BCM".

    If "AUTO DRIVE POS." is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

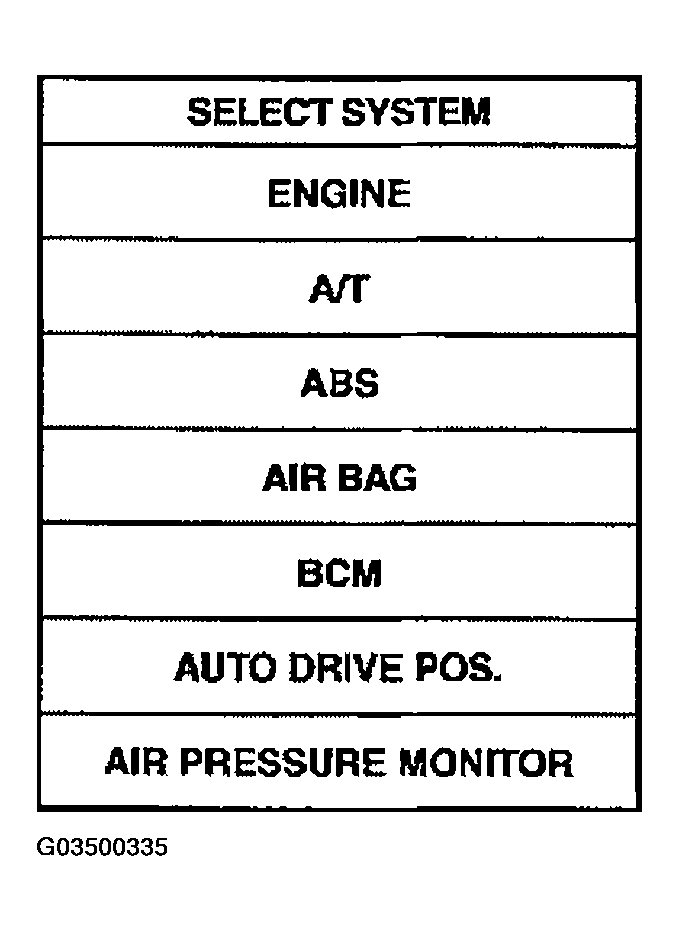

    Fig 3: Display SELECT SYSTEM
    G03500335Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select diagnosis mode.

    7. "DATA MONITOR""ACTIVE TEST""SELF-DIAG RESULTS""ECU PART NUMBER" and "WORK SUPPORT" are available.

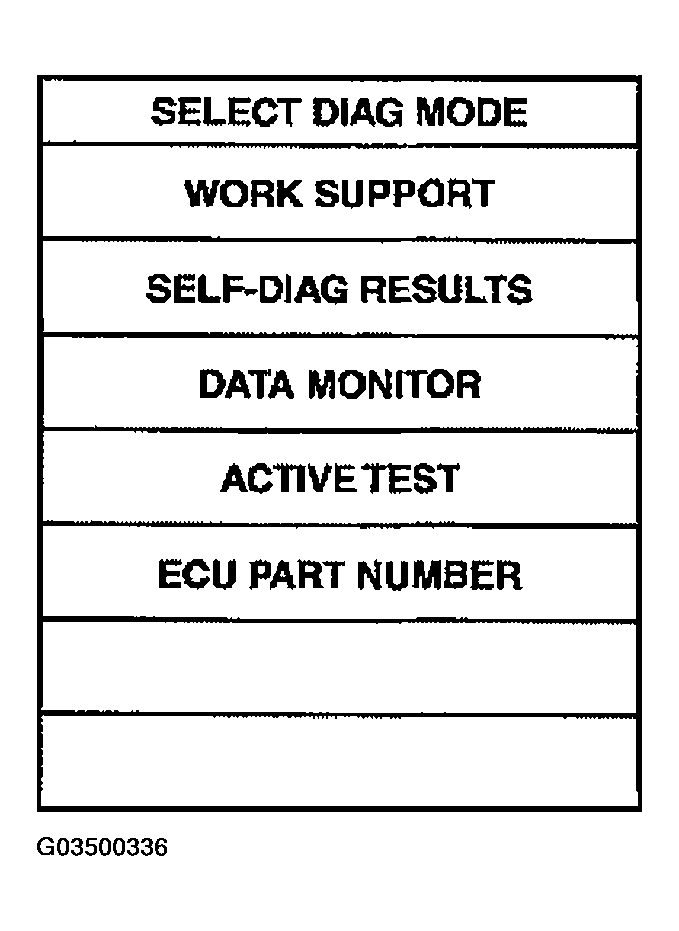

    Fig 4: Display SELECT DIAGNOSTIC MODE
    G03500336Courtesy of NISSAN MOTOR CO., U.S.A.
