Limit Switch Circuit Check Front RH

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between front power window motor RH connector D104 terminal 2 and ground.
    FRONT POWER WINDOW MOTOR RH CONNECTORS VOLTAGE

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    D104 2 (G/W) Ground Passenger side door window is between fully-open and just before fully-closed position (ON) 0
    Passenger side door window is between just before fully-closed position and fully-closed position (OFF) 5

    OK or NG

    1. OK: Limit switch circuit is OK.
    2. NG: GO TO 2.

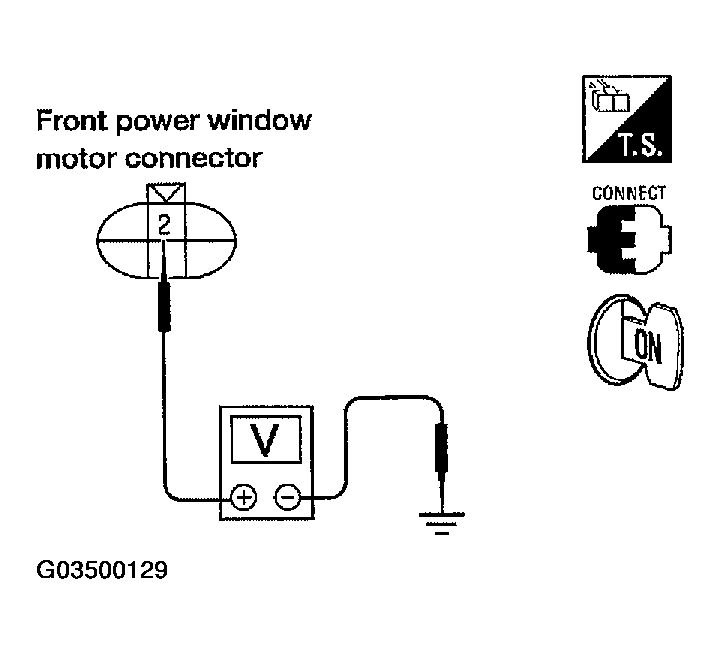

    Fig 1: Checking Voltage Between Front Power Window Motor RH Connector D104 Terminal 2 And Ground
    G03500129Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Check continuity between front power window motor RH connector D104 terminal 4 and ground.
    1. 4 (W/B) - Ground: Continuity should exist.

    OK or NG

    1. OK: GO TO  4 .
    2. NG: GO TO 3.

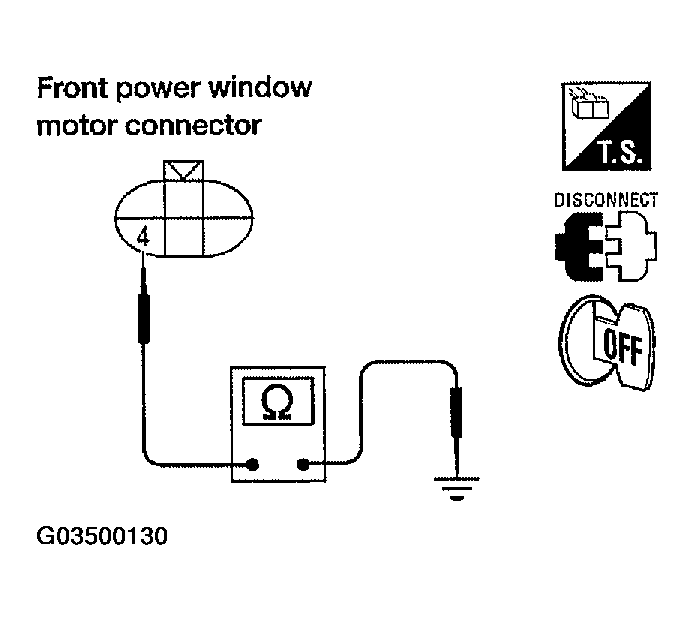

    Fig 2: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 4 And Ground
    G03500130Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect front power window and door lock/unlock switch RH.
    2. Check continuity between front power window motor RH connector D104 terminal 4 and front power window and door lock/unlock switch RH connector D105 terminal 3.
    1. 4 (W/B) - 3 (W/B): Continuity should exist.

    OK or NG

    1. OK: Replace front power window and door lock/unlock switch RH.
    2. NG: Repair or replace harness.

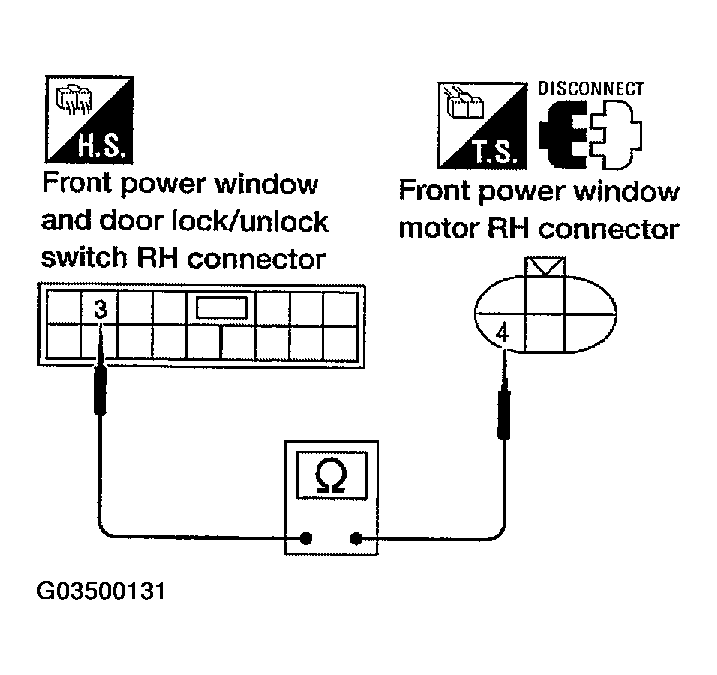

    Fig 3: Checking Continuity Between Front Power Window Motor RH Connector Terminal And Front Power Window And Door Lock/Unlock Switch RH Connector Terminal
    G03500131Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK FRONT POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between front power window and door lock/unlock switch RH connector D105 terminal 15 and ground.

    15 (G/W)-Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 5.
    2. NG: Replace front power window and door lock/unlock switch RH.

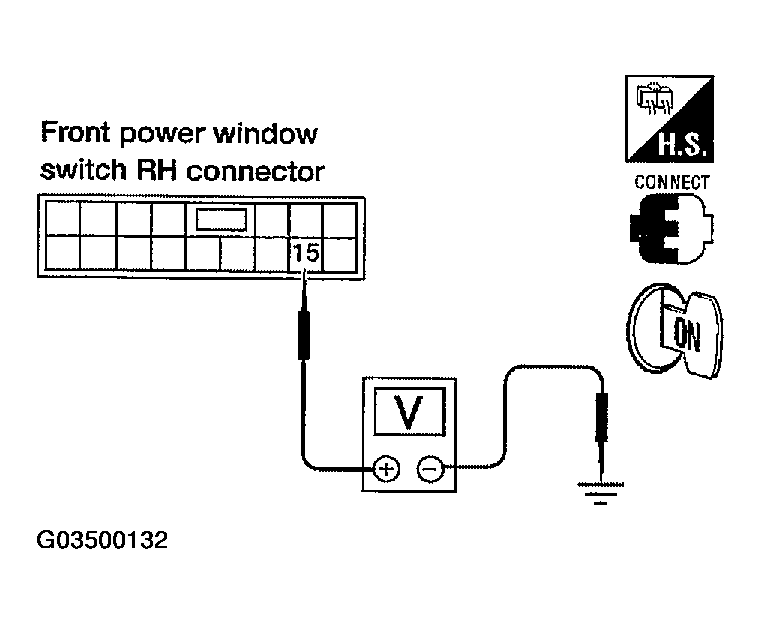

    Fig 4: Checking Voltage Between Front Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 15 And Ground
    G03500132Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect front power window and door lock/unlock switch RH.
    3. Check continuity between front power window and door lock/unlock switch RH connector D105 terminal 15 and front power window motor RH connector D104 terminal 2.
    1. 15 (G/W) - 2 (G/W): Continuity should exist.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair or replace harness.

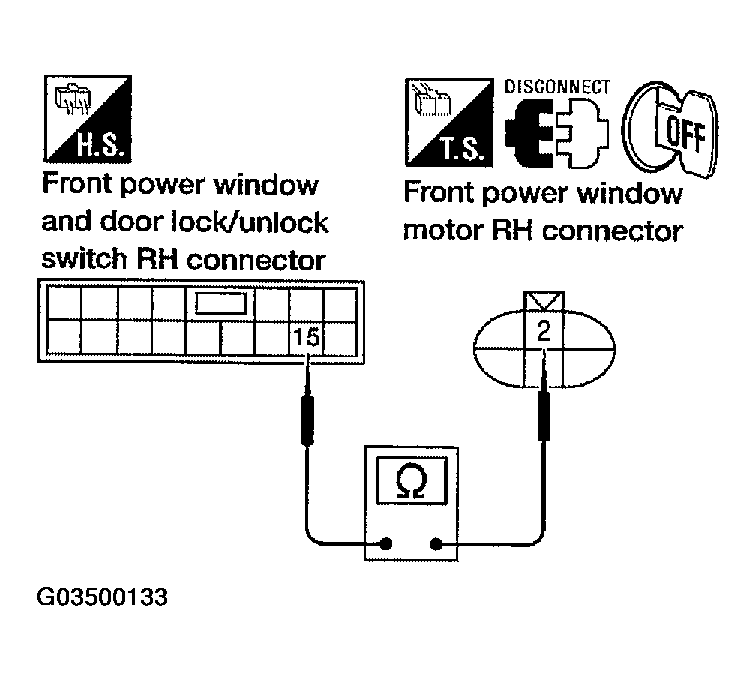

    Fig 5: Checking Continuity Between Front Power Window And Door Lock/Unlock Switch RH Connector Terminal And Front Power Window Motor RH Connector Terminal
    G03500133Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK LIMIT SWITCH
    1. Connect front power window motor RH and front power window switch RH connector.
    2. Turn ignition switch ON.
    3. Check continuity between front power window motor RH connector D104 terminal 2 and 4.
    FRONT POWER WINDOW MOTOR RH CONNECTORS CONTINUITY

    Connector Terminals (Wire color) Condition Continuity
    D104 2(G/W) 4 (W/B) Front door window RH is between fully-open and just before fully-closed position (ON) Yes
    Front door window RH is between just before fully-closed position and fully-closed position (OFF) No

    OK or NG

    1. OK: Repair or replace harness.
    2. NG: Replace front power window motor RH.

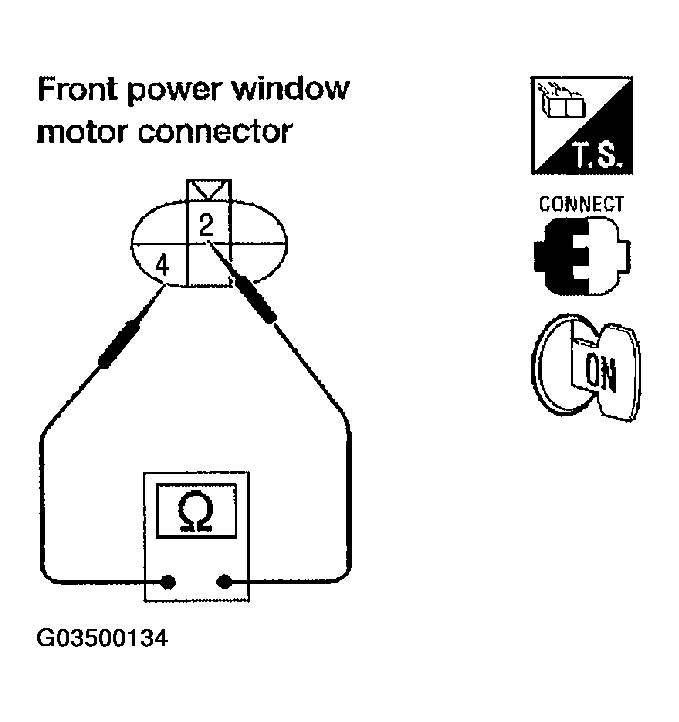

    Fig 6: Checking Continuity Between Front Power Window Motor RH Connector D104 Terminal 2 And 4
    G03500134Courtesy of NISSAN MOTOR CO., U.S.A.
