Front Power Window Motor RH Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FRONT POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Connect front power window and door lock/unlock switch RH.
    2. Turn ignition switch ON.
    3. Check voltage between front power window and door lock/unlock switch RH connector D105 terminal 8, 9 and ground.
    FRONT POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH CONNECTORS VOLTAGE

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    D105 9(G) Ground Closing 0
    Opening Battery voltage
    8(L) Closing Battery voltage
    Opening 0

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace front power window and door lock/unlock switch RH.

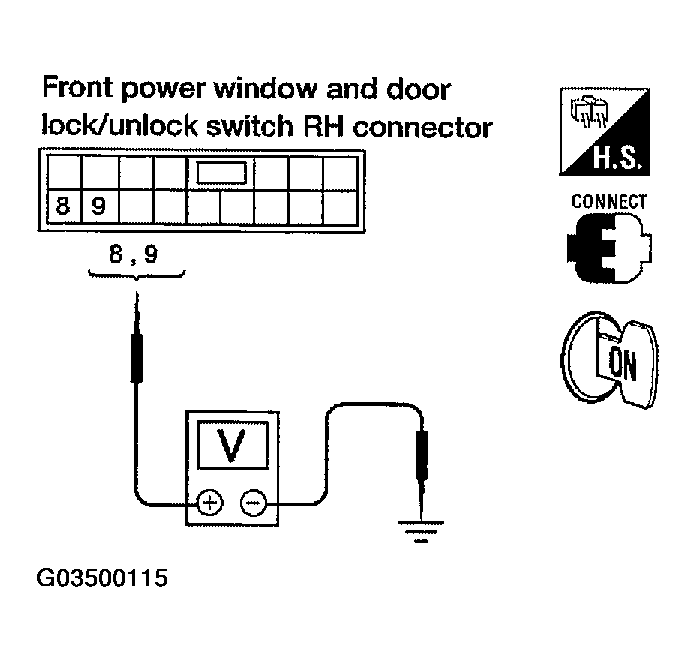

    Fig 1: Checking Voltage Between Front Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 8, 9 And Ground
    G03500115Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and front power window and door lock/unlock switch RH.
    3. Check continuity between front power window and door lock/unlock switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 3.
    1. 8 (L) - 3 (L): Continuity should exist.
    2. 9 (G) -1 (G): Continuity should exist.

    OK or NG

    1. OK: Replace front power window motor RH.
    2. NG: Repair or replace harness.

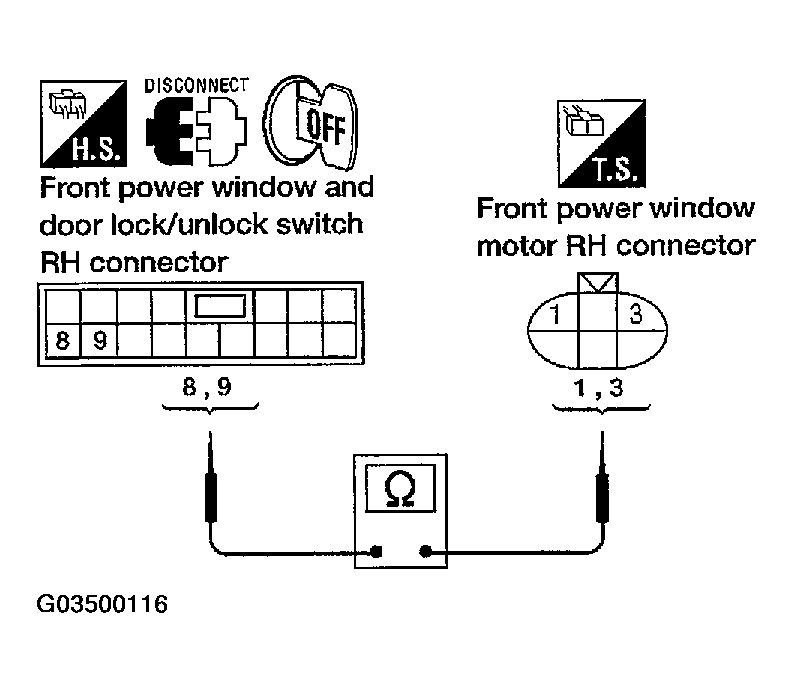

    Fig 2: Checking Continuity Between Front Power Window And Door Lock/Unlock Switch RH Connector Terminals And Front Power Window Motor RH Connector Terminals
