CONSULT-II Inspection Procedure: Notes

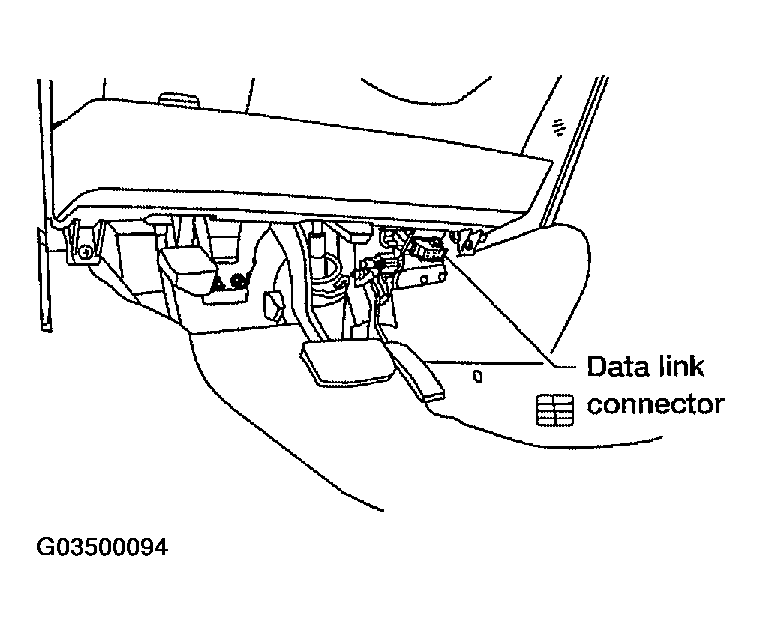

- Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.
- Turn ignition switch ON.

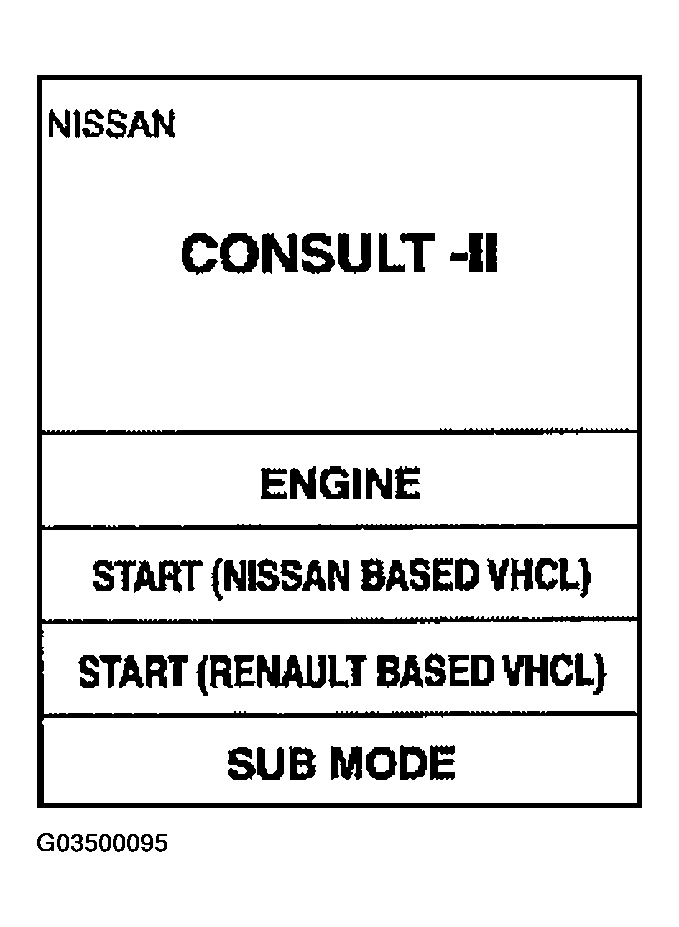

- Touch "START (NISSAN BASED VHCL)".

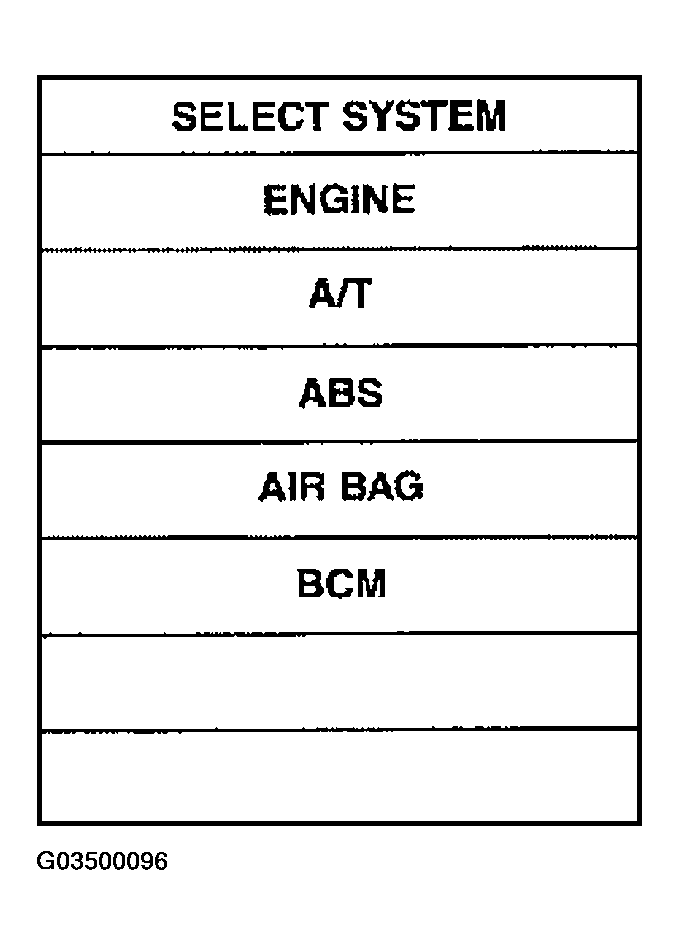

- Touch "BCM".
If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

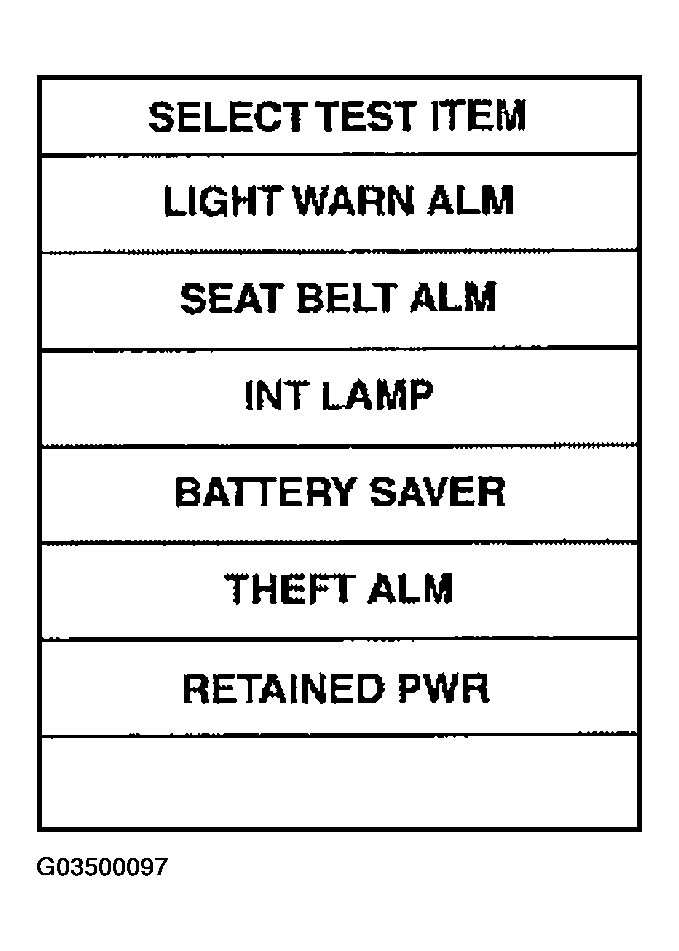

- Touch "RETAINED PWR".

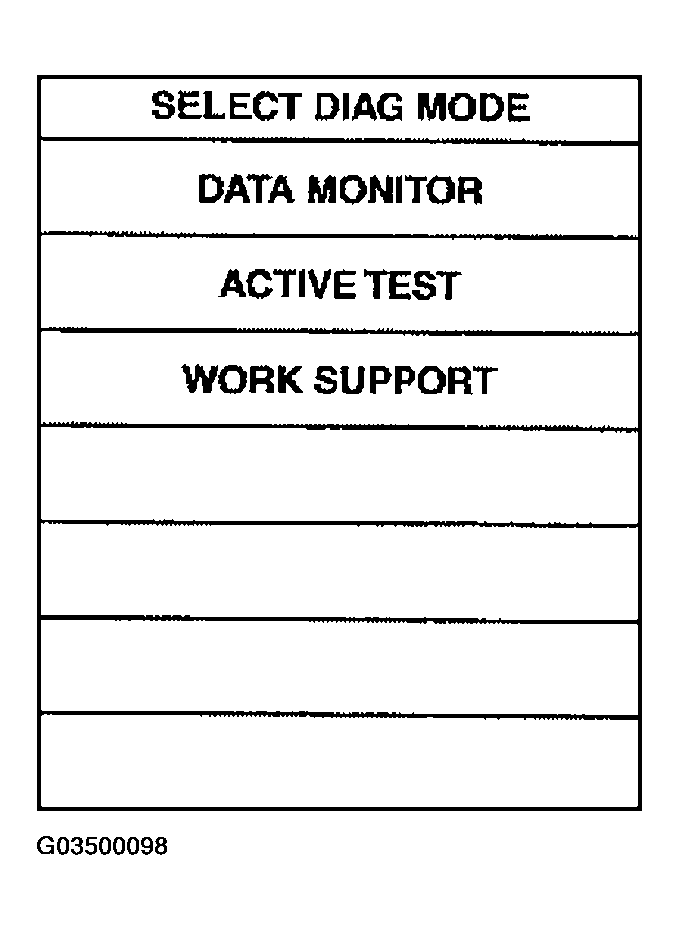

- Select diagnosis mode.
"ACTIVE TEST " and "WORK SUPPORT" are available.
