Door Switch Check (Without Automatic Back Door System)
- CHECK DOOR SWITCHES INPUT SIGNAL
With CONSULT-II

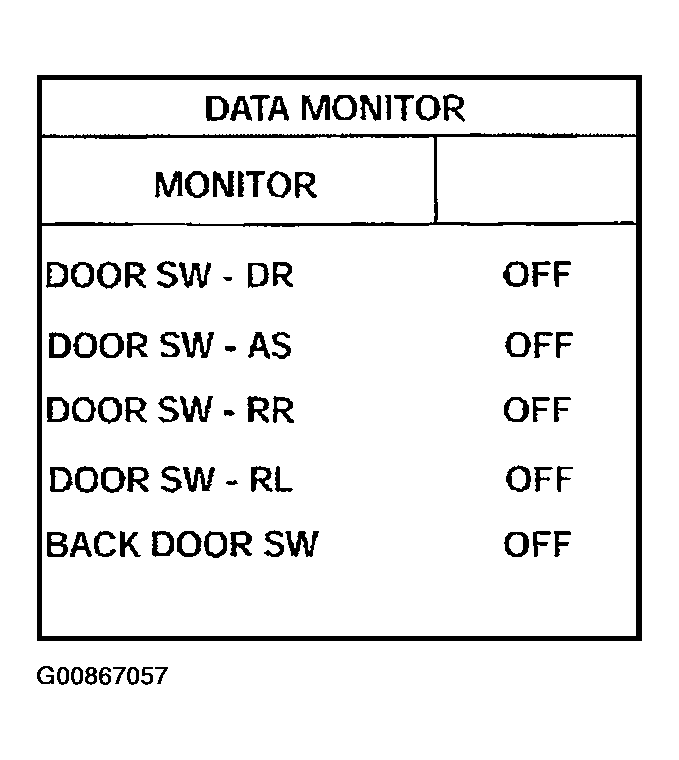

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONITOR mode with CONSULT-II. Refer to DATA MONITOR .
- When any doors are open:
DOOR SW-DR: ON
DOOR SW-AS: ON
DOOR SW-RL: ON
DOOR SW-RR: ON
BACK DOOR SW: ON
- When any doors are closed:
DOOR SW-DR: OFF
DOOR SW-AS: OFF
DOOR SW-RL: OFF
DOOR SW-RR: OFF
BACK DOOR SW: OFF
Without CONSULT-II

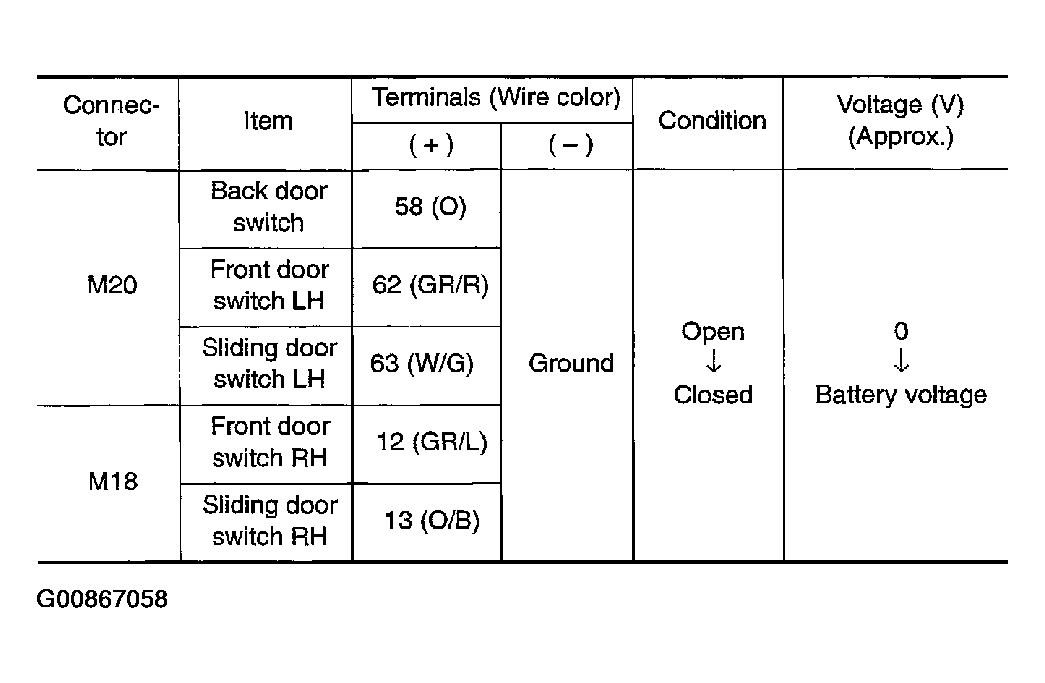

Check voltage between BCM connector M18 or M20 terminals 12, 13, 58, 62, 63 and ground.
- When any doors are open:
