CAUTION:

Do not perform active test while driving.
Make sure to completely bleed air from the brake system.
The ABS and brake (EBD) warning lamps turn on during the active test.

Operation Procedure

Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
Touch "START (NISSAN BASED VHCL)" on the display screen.
Touch "ABS".
If "ABS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
Touch "ACTIVE TEST".

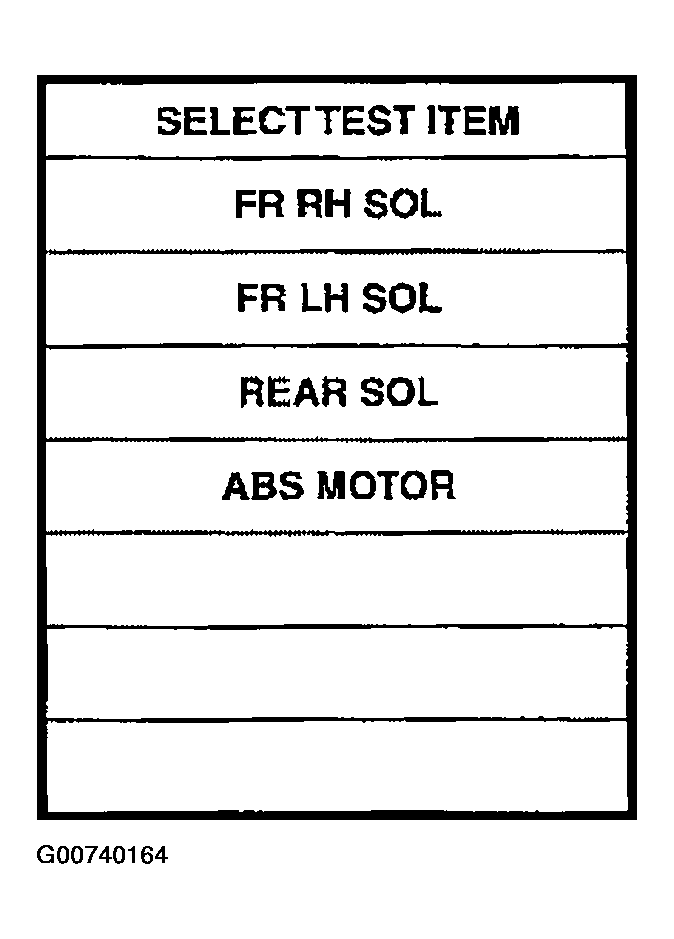

Fig 1: Displaying SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
The test item selection screen is displayed.
Touch necessary test item.
With the "MAIN ITEM" display shown in reverse, touch "START".
The Active Test screen will be displayed, so conduct the following test.
