2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under driver's side dash panel.
  3. Turn ignition switch ON.

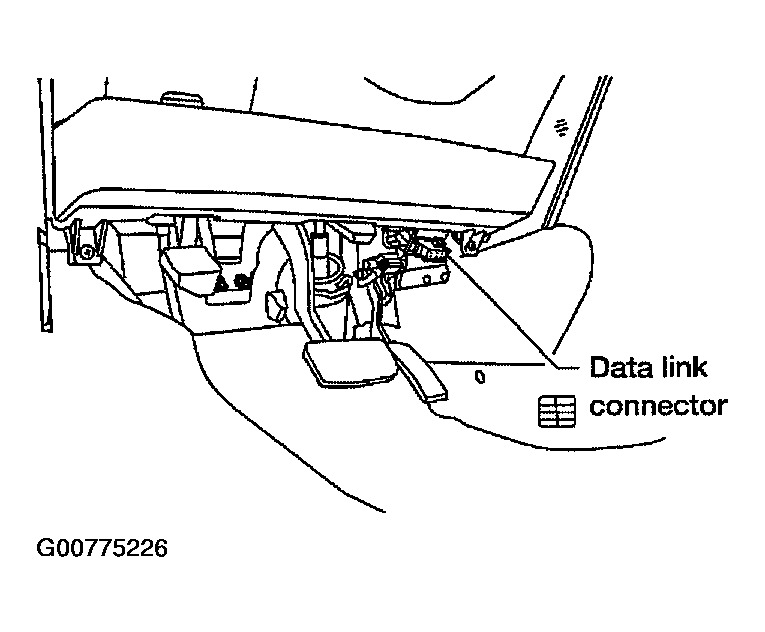

    Fig 1: Locating Data Link
    G00775226Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".

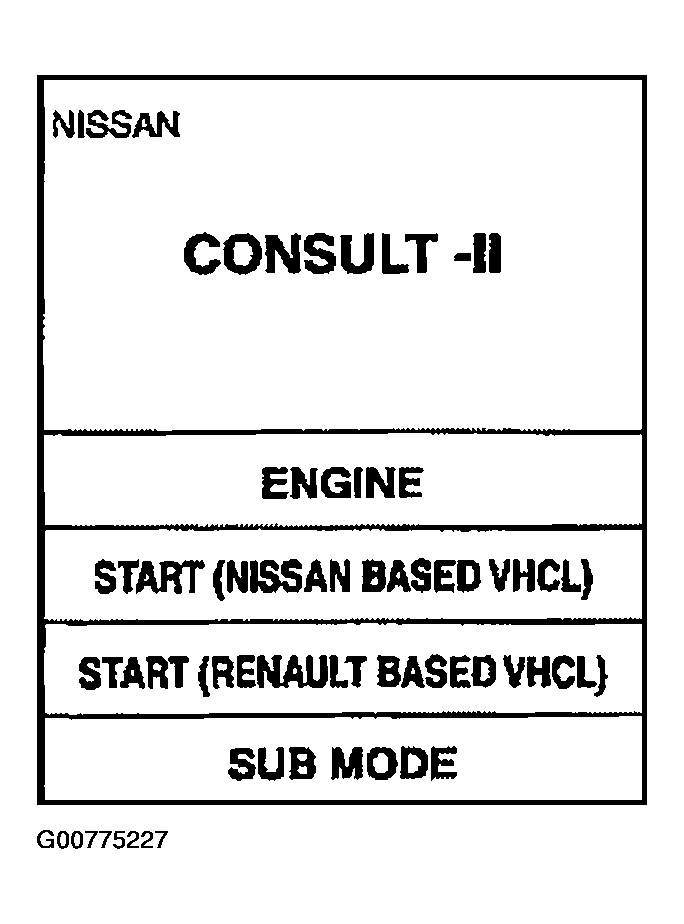

    Fig 2: Displaying CONSULT-II
    G00775227Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ENGINE".

    If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

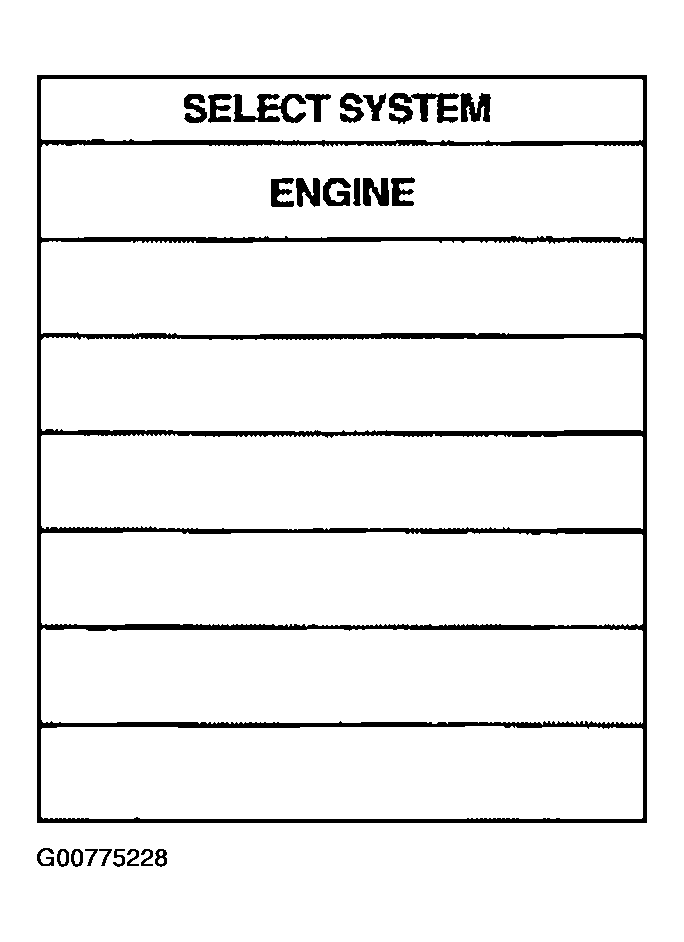

    Fig 3: Displaying Engine Screen
    G00775228Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic test mode according to each service procedure.

    For further information, see the CONSULT-II Operation Manual.

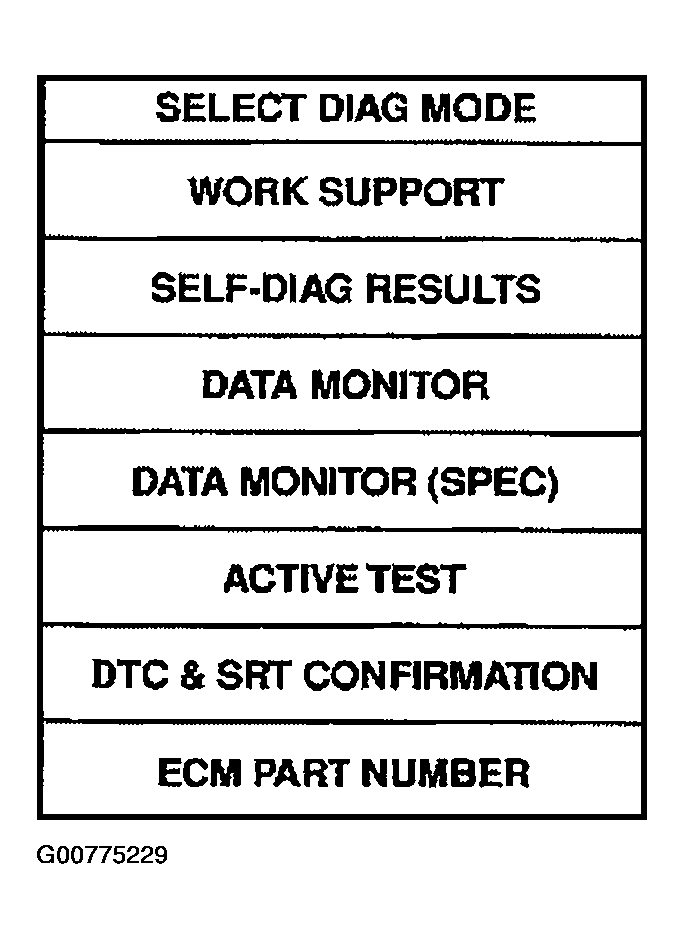

    Fig 4: Displaying Work Support Screen
    G00775229Courtesy of NISSAN MOTOR CO., U.S.A.
