2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
With GST
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch ON and select MODE 1 with GST.
- Check that engine coolant temperature is within the range of -10 to 50°C (14 to 122°F).

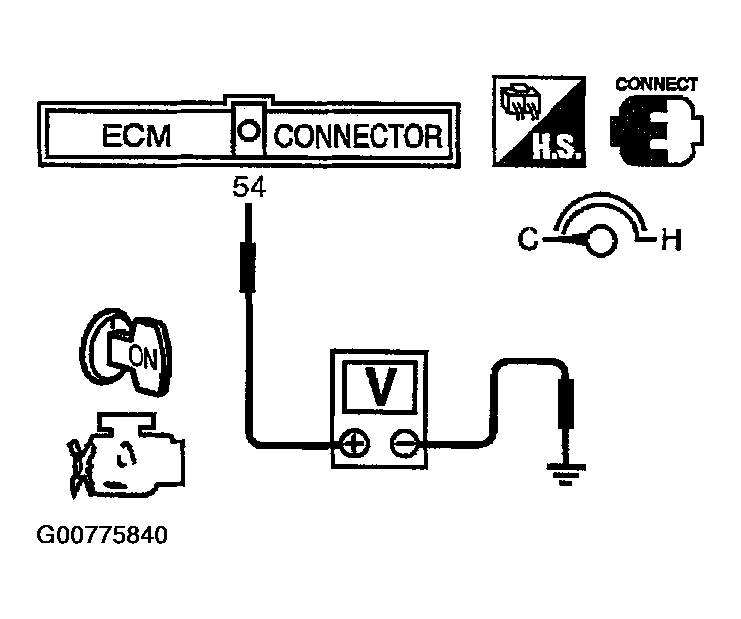

- Check that voltage between ECM terminal 54 (EGR temperature sensor signal) and ground is less than 4.8V.
- Start engine and let it idle for at least 80 seconds.
- Stop engine.
- Perform steps 1 to 4 again.
- Select MODE 3 with GST.
- If DTC is detected, go to DIAGNOSTIC PROCEDURE
.
- When using GST, DTC Confirmation Procedure should be performed twice as much as when using CONSULT-II because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. Therefore, using CONSULT-II is recommended.
