2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION .

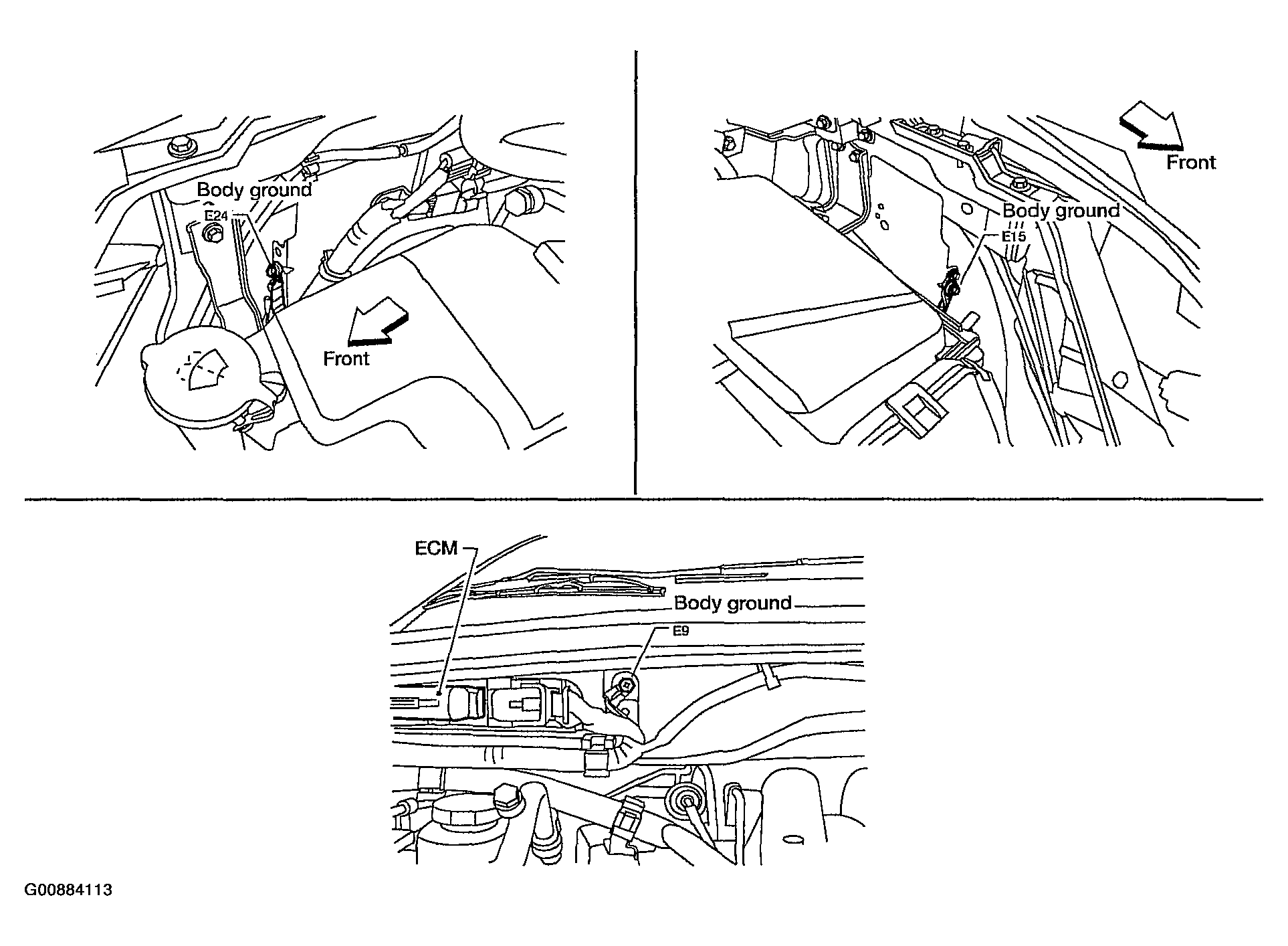

  Fig 1: Loosing And Retighten Ground Three Screws On Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace ground connections.
CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

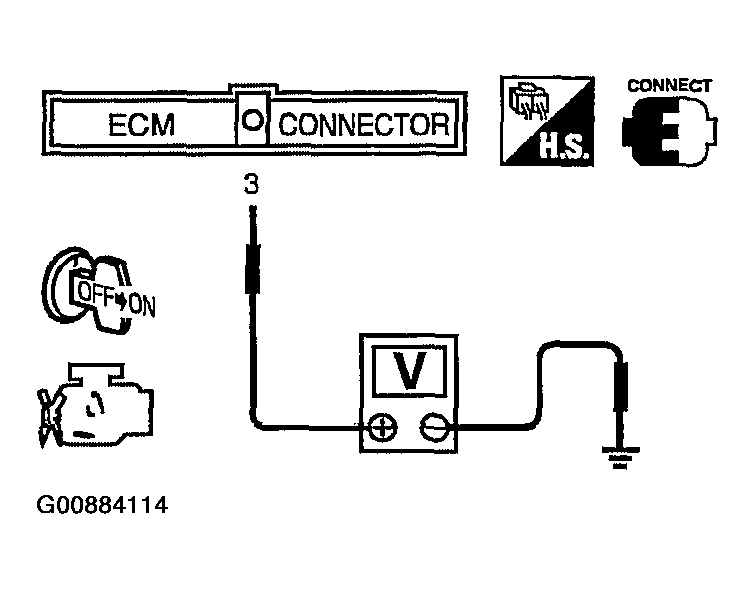

  Fig 2: Checking Voltage Between ECM Terminal 3 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
