2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION  .

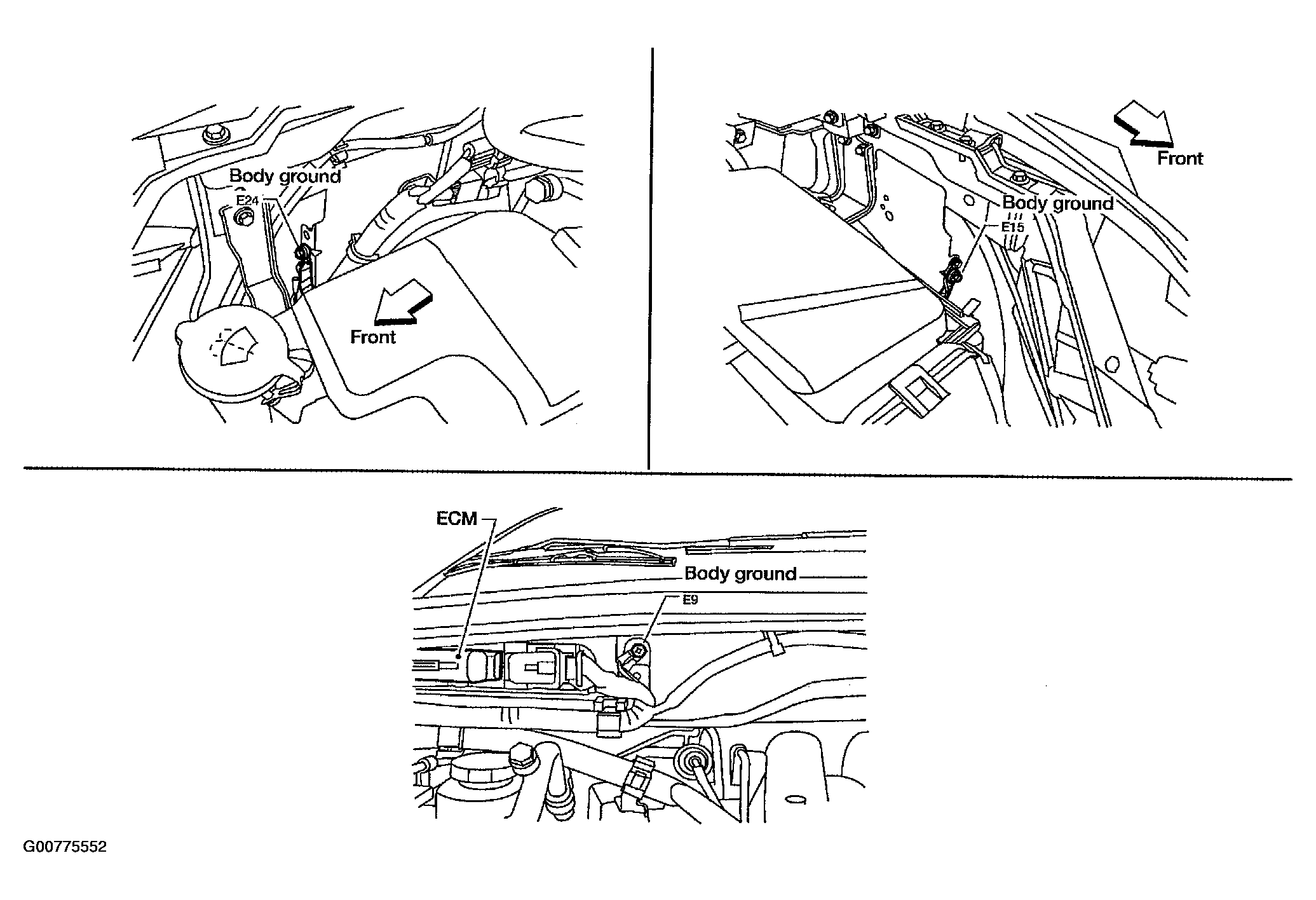

      Fig 1: Checking Ground Connections
      G00775552Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK ENGINE COOLANT TEMPERATURE SENSOR

    Refer to COMPONENT INSPECTION  .

    OK or NG

    1. OK: GO TO 3.
    2. NG: Replace engine coolant temperature sensor.
  3. CHECK THERMOSTAT OPERATION

    When the engine is cold [lower than 70°C (158°F)] condition, grasp lower radiator hose and confirm the engine coolant does not flow.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace thermostat. Refer to THERMOSTAT AND THERMOSTAT HOUSING .
  4. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    Refer to WIRING DIAGRAM  .

    1. INSPECTION END
