2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Illumination Signal Check for NAVI Control Unit
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK ILLUMINATION SIGNAL
- Turn the ignition switch ON.

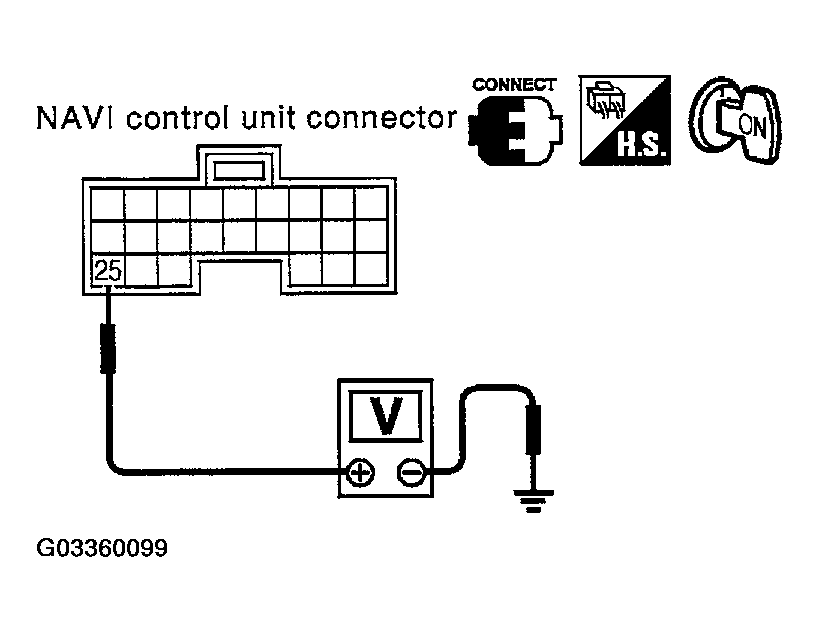

- Check voltage between NAVI control unit and ground.
NAVI CONTROL UNIT ILLUMINATION SIGNAL CHECK CHARTTerminals Lighting switch position (+) (-) Connector Terminal (Wire color) 1st or 2nd position OFF M63 25 (R/L) Ground Battery voltage Approx. 0V OK or NG
- OK : Replace NAVI control unit.
- NG : Check harness for open or short between NAVI control unit and IPDM E/R.
