WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

When "MAINT" switch is pressed, display vehicle information screen. As vehicle information, it indicates engine oil, tire rotation, and tire pressure.
Pressing "MAINT" switch once cycles display from engine oil-->tire rotation-->tire pressure-->engine oil.
NOTE: If vehicle is not equipped with low tire pressure warning system, OFF will be displayed in place of tire pressure.

Engine Oil and Tire Rotation
Operating the joystick left/right, replace distance can be set.
When journey distance is the same as replace distance, alert is displayed. (SERVICE ALERT setting is ON.)
Selected replace distance is 0 - 7,500 miles (0 - 12,000 km) in increments of 500 mile (800 km).
Press and hold "TRIP RESET" or "MAINT" switch for 1.5 seconds or longer, reset present journey distance.
During driving, cannot change settings.

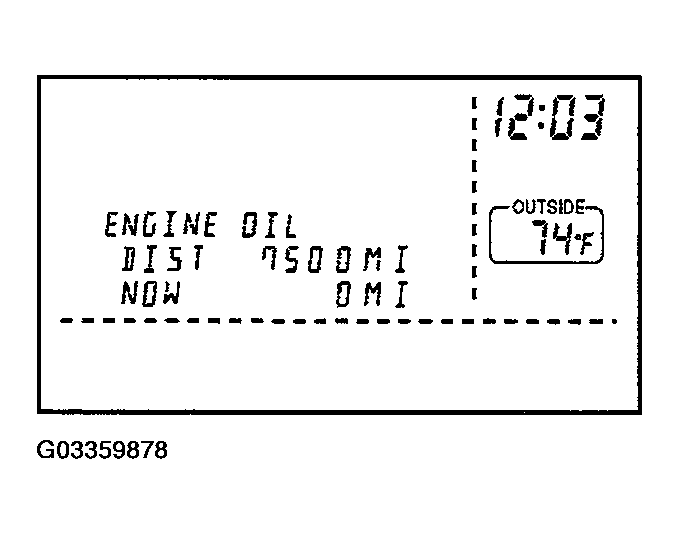

Fig 1: Displaying MAINT Screen (Engine Oil)
Courtesy of NISSAN MOTOR CO., U.S.A.

Tire Pressure
Tire pressure signal is received from low tire pressure warning control unit via CAN communication.
Tire pressure is displayed.
When FLAT TIRE signal is received from low tire pressure warning control unit, "FLAT TIRE" is displayed.

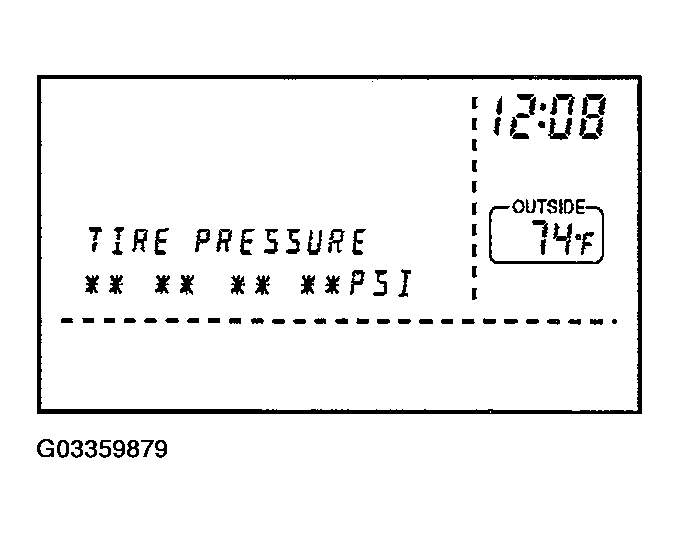

Fig 2: Displaying MAINT Screen (Tire Pressure)
Courtesy of NISSAN MOTOR CO., U.S.A.
