Power Window Serial Link Check
- CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
With CONSULT-II

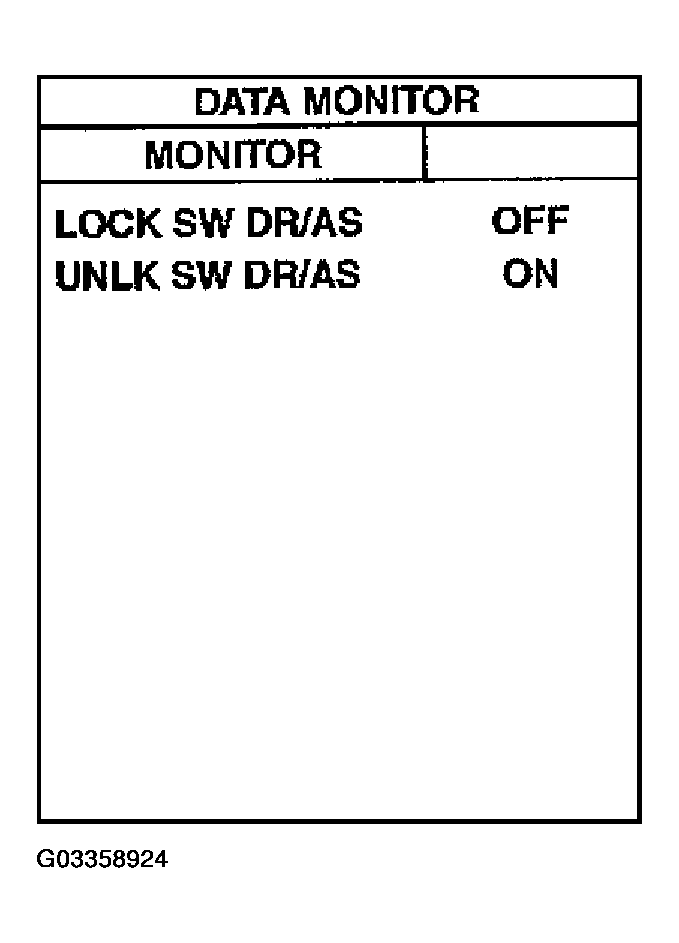

Check door lock and unlock switch ("LOCK SW DR/AS", "UNLK SW DR/AS") in DATA MONITOR mode with CONSULT-II. Refer to DATA MONITOR .
MONITOR ITEM CONDITION CHARTMonitor item Condition LOCK SW DR / AS LOCK :ON UNLOCK :OFF UNLK SW DR / AS LOCK :ON UNLOCK :OFF Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
- Remove key from ignition switch, and the door of driver side and passenger side is closed.

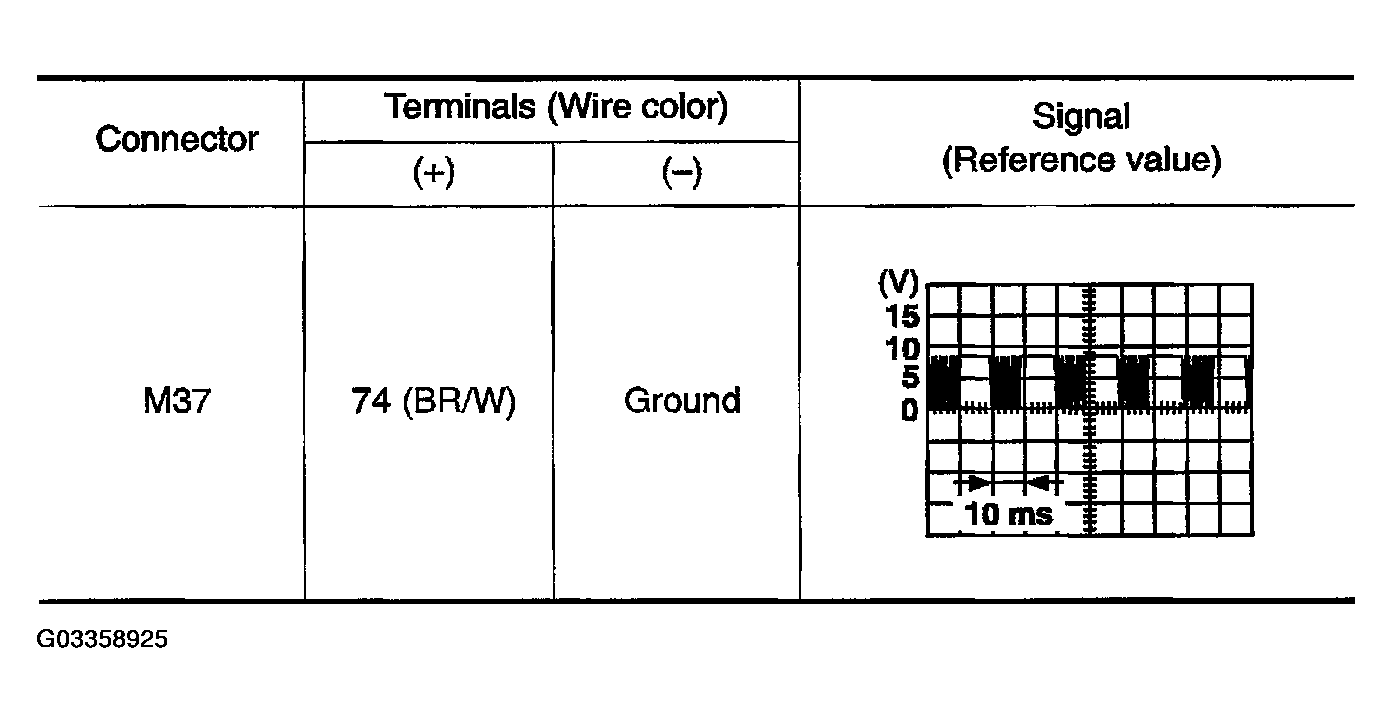

- Check the signal between BCM connector and ground with oscilloscope when door lock and unlock switch (driver side and passenger side) is turned "LOCK" or "UNLOCK".
- Make sure signals which are shown in the figure below can be detected during 10 seconds just after door lock and unlock switch (driver side and passenger side) is turned "LOCK" or "UNLOCK".
