2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Front Power Window Regulator (Driver Side) Circuit Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
    1. Turn igniting switch ON.
    2. Check voltage between power window main switch connector D6 terminals 8, 11 and ground.
    CONNECTOR TERMINAL VOLTAGE CHART

    Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
    (+) (-)
    D6 8 (G/R) Ground Closing Battery voltage
    Opening 0
    11 (G/W) Closing 0
    Opening Battery voltage

    OK or NG

    1. OK : GO TO 2.
    2. NG : Replace power window main switch.

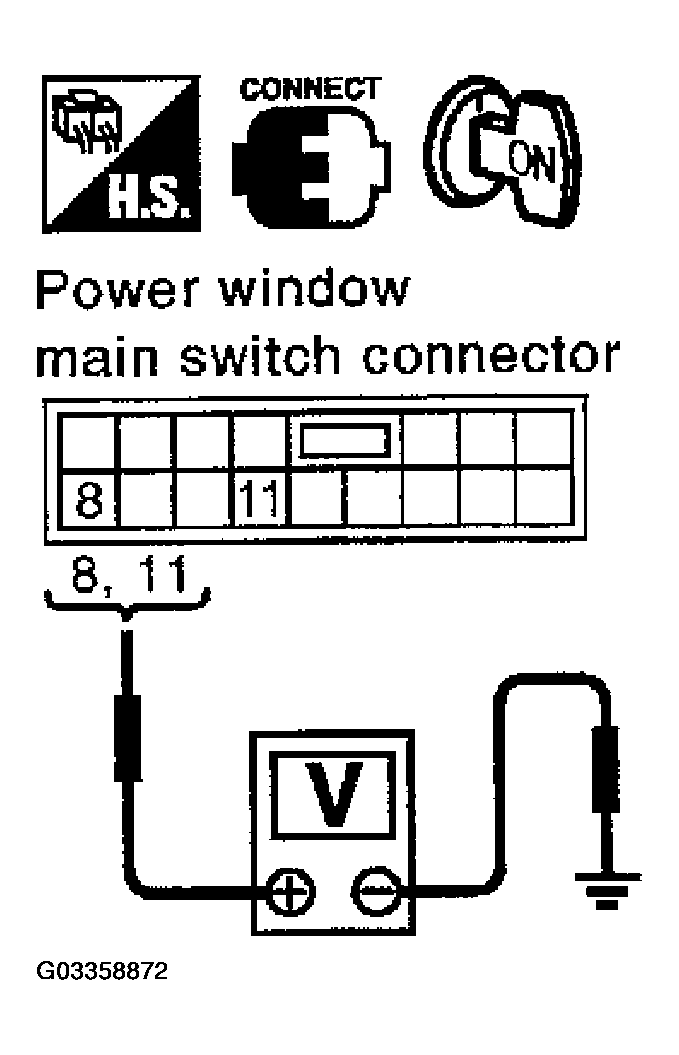

    Fig 1: Checking Voltage Between Power Window Main Switch Connector D6 Terminals 8, 11 And Ground
    G03358872Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window main switch and front power window regulator (driver side) connector.
    3. Check continuity between power window main switch connector D6 terminal 8, 11 and front power window regulator (driver side) connector D8 terminals 1, 2.
      1. 8 (G/R) - 2 (G/R) : Continuity should exist.
      2. 11 (G/W) - 1 (G/W) : Continuity should exist.

    OK or NG

    1. OK : Replace front power window motor (driver side).
    2. NG : Repair or replace harness between power window main switch and front power window regulator (driver side).

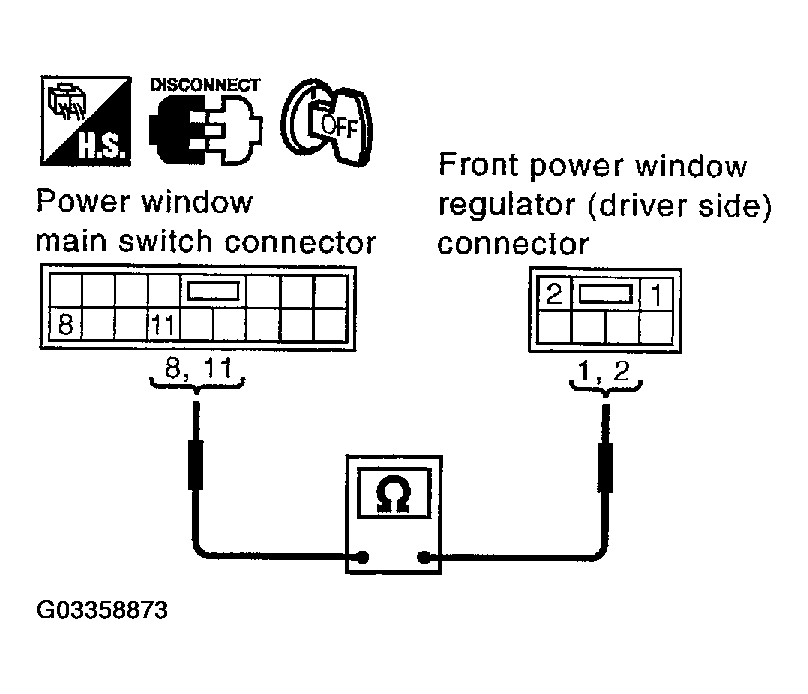

    Fig 2: Checking Continuity Between Power Window Main Switch Connector D6 Terminal 8, 11 And Front Power Window Regulator (Driver Side) Connector D8 Terminals 1, 2
    G03358873Courtesy of NISSAN MOTOR CO., U.S.A.
