2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. CHECK OVERALL FUNCTION

    WITH CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.

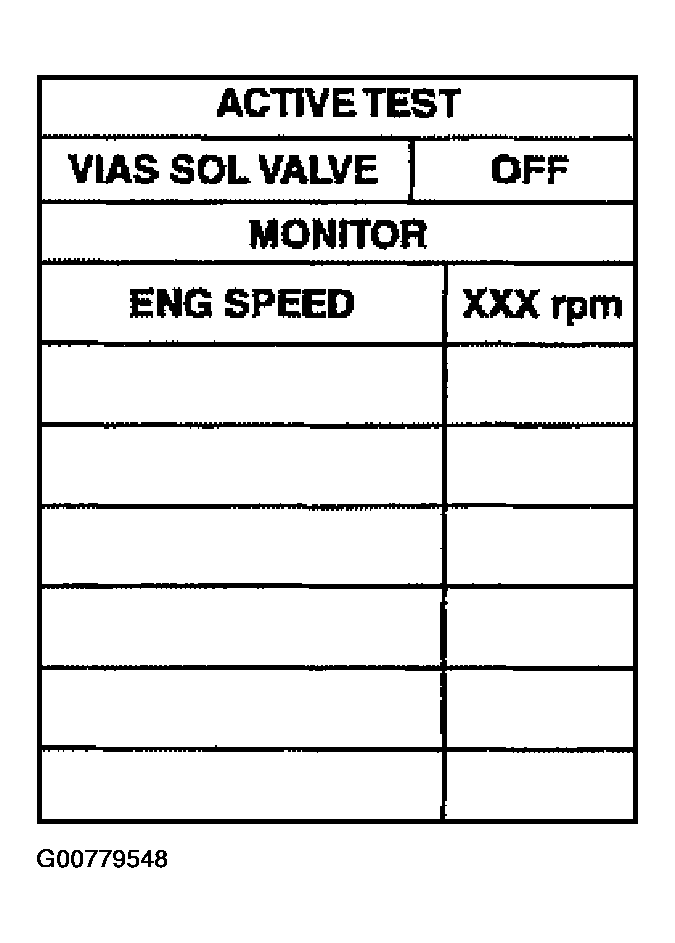

      Fig 1: Displaying ACTIVE TEST With Mode Consult-II
      G00779548Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn VIAS control solenoid valve "ON" and "OFF", and make sure that power valve actuator rod moves.
      4. Fig 2: Ensuring Power Valve Actuator Rod Moves
      G00779549Courtesy of NISSAN MOTOR CO., U.S.A.

    WITHOUT CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Rev engine quickly up to above 5, 000 RPM and make sure that power valve actuator rod moves.

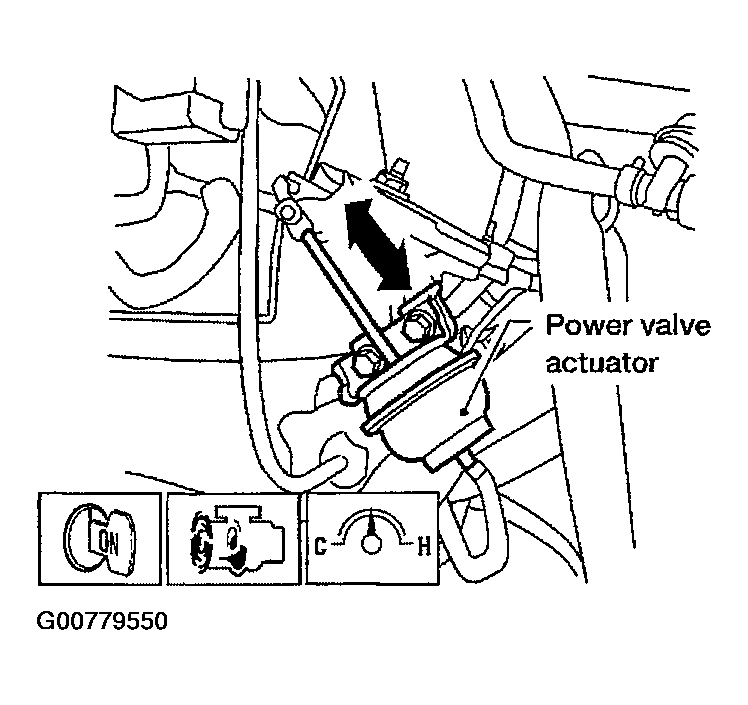

    Fig 3: Ensuring Power Valve Actuator Rod Moves
    G00779550Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG (With CONSULT-II): GO TO 2.
    3. NG (Without CONSULT-II): GO TO  3.
  2. CHECK VACUUM EXISTENCE

    WITH CONSULT-II

    1. Stop engine and disconnect vacuum hose connected to power valve actuator.
    2. Start engine and let it idle.
    3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.
    4. Turn VIAS control solenoid valve "ON" and "OFF", and check vacuum existence under the following conditions.

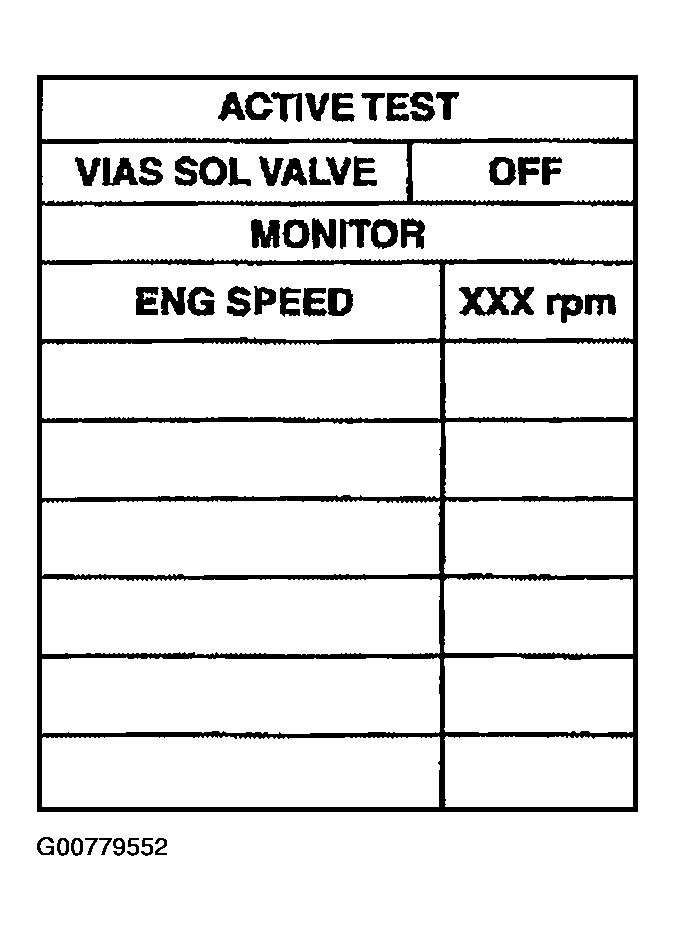

      5. Fig 4: Displaying ACTIVE TEST" With Mode Consult-II
      G00779552Courtesy of NISSAN MOTOR CO., U.S.A.
