2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Inspection Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel.
Turn ignition switch ON.

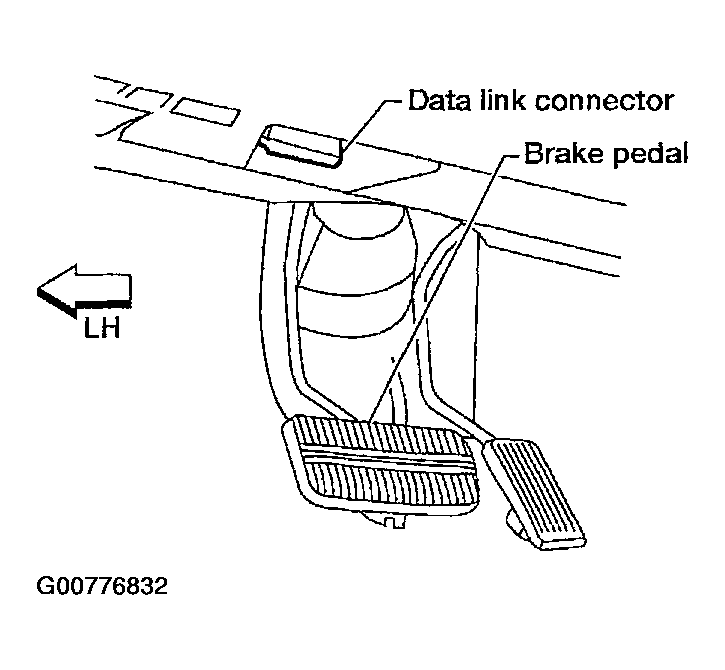

Fig 1: Identifying Brake Pedal & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

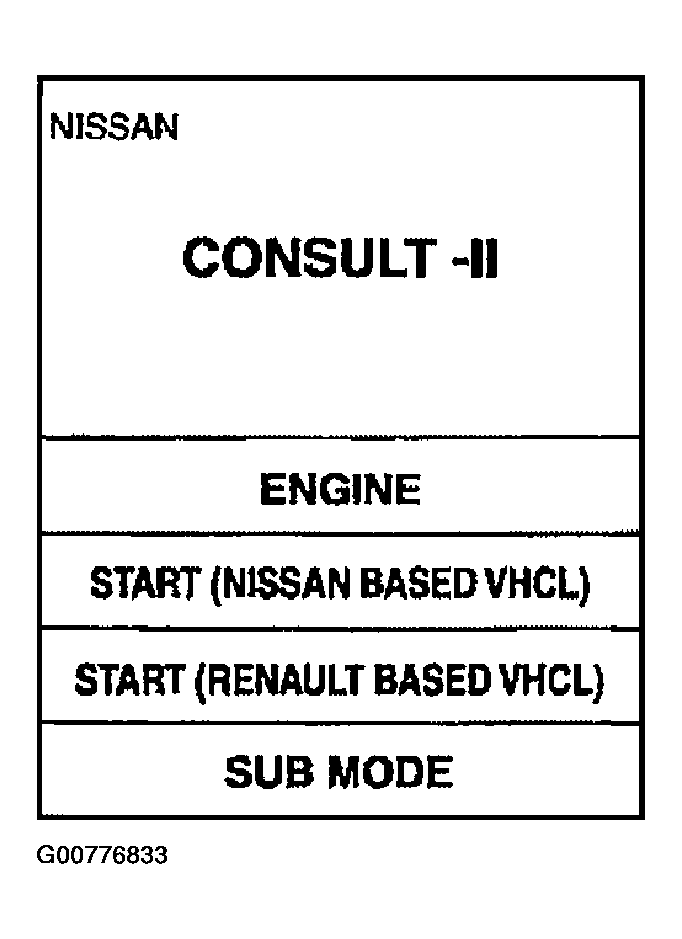

Fig 2: Selecting "START (NISSAN BASED VHCL)" On Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ENGINE".
If "ENGINE" is not indicated, go to "DATA LINK CONNECTOR ".

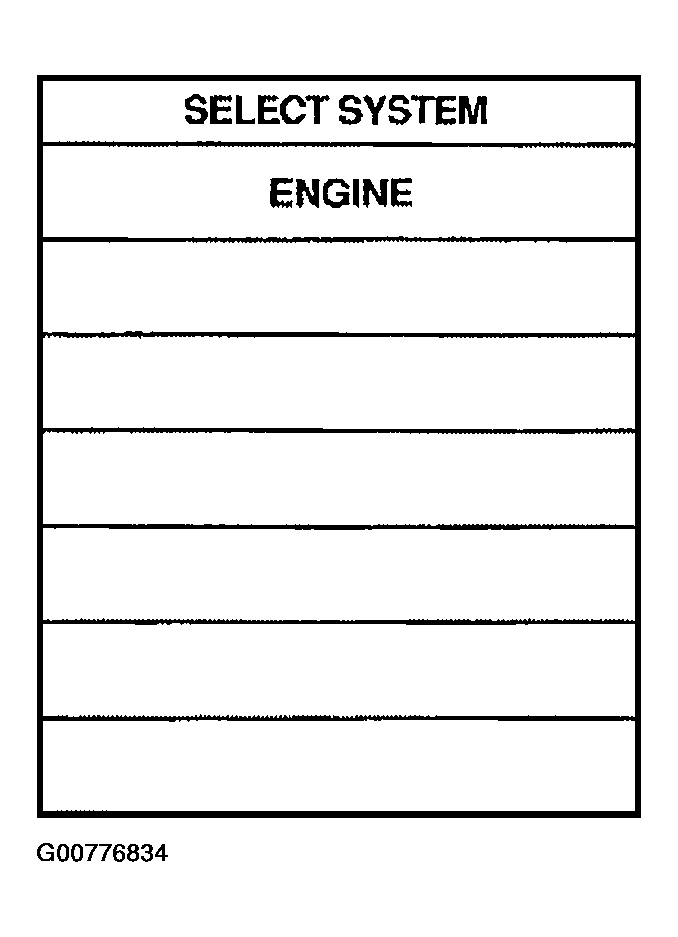

Fig 3: Selecting "ENGINE" On Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.

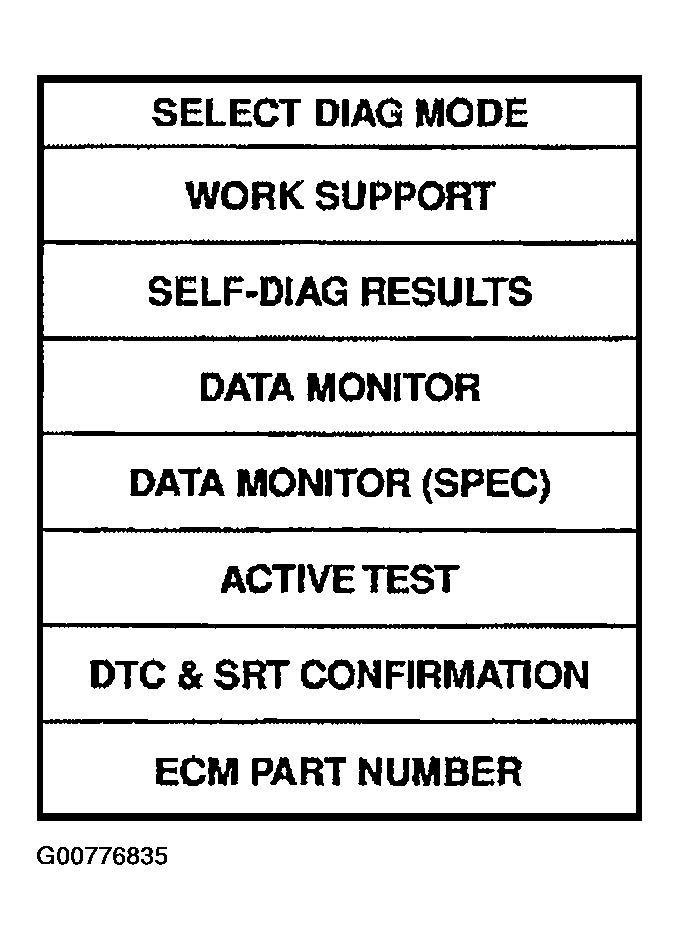

Fig 4: Identifying Consult-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
